6.5.9 MCP page - INSTRUMENTS
The instrument page contains the overview of the analogue signals from the engine.

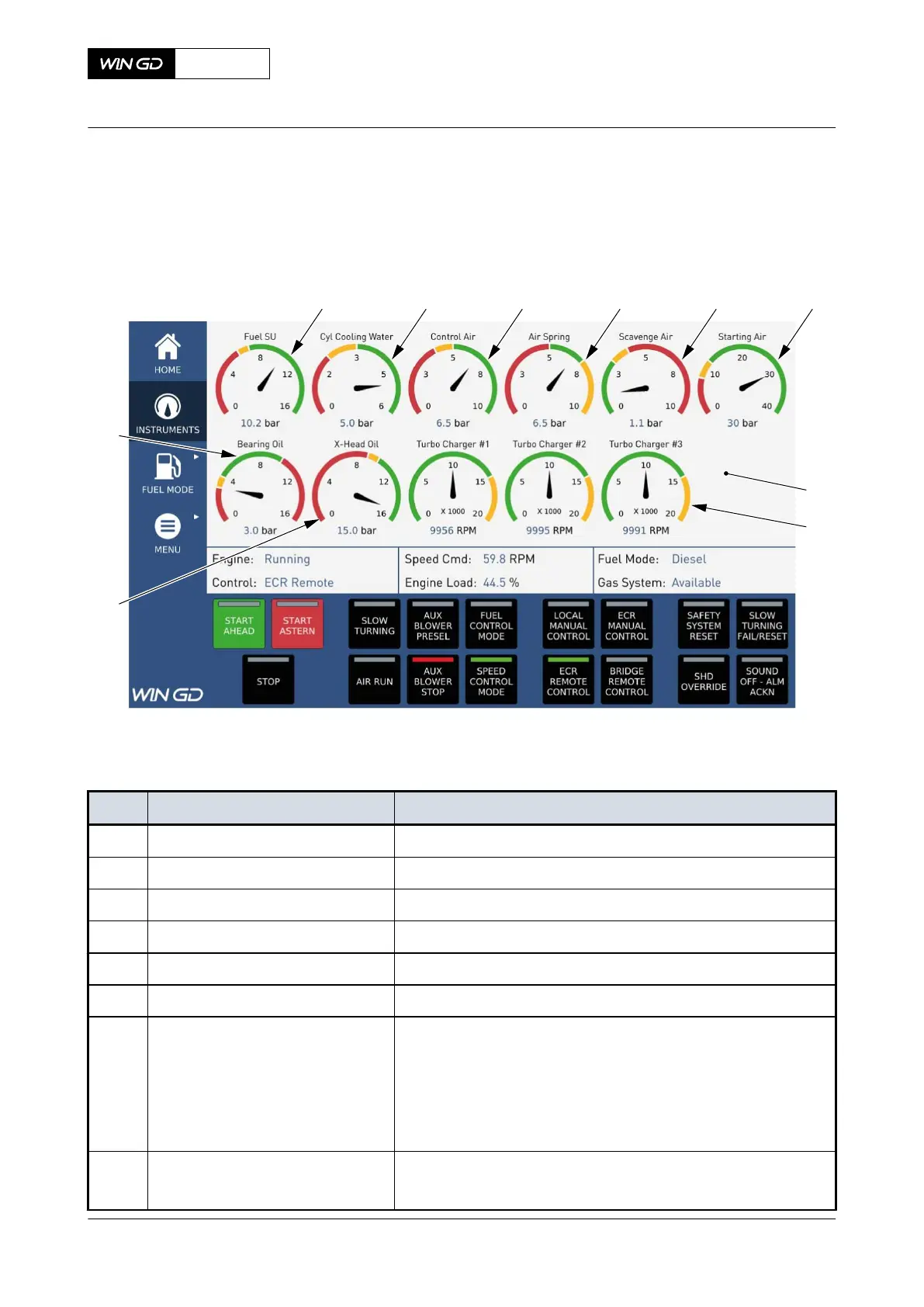

Fig 6-29 MCP page - INSTRUMENTS
001
002
003
004
005
006
008
007
009
010
Tab 6-20 INSTRUMENTS
Item Function Effect
001 Fuel SU Shows the fuel pressure value before supply unit in bar
002 Cylinder Cooling Water Shows the cylinder cooling water pressure value in bar
003 Control Air Shows the control air pressure value in bar
004 Air Spring Shows the air spring pressure value in bar
005 Scavenge Air Shows the scavenge air pressure value in bar
006 Starting Air Shows the starting air pressure value in bar
007 Indication Field Shows the values of the displayed instruments
NOTE: The number of the displayed instruments is related to
the engine.
NOTE: If an instrument is unservicable, the background of the
related instrument changes to red.
008 Turbocharger #N Shows the turbocharger speed value in rpm
Turbocharger speed is depend on the engine type
