6.5.4 MCP page - GAS SYSTEM
This page shows gas system status of the engine.
1 Select the “FUEL MODE” (009, Figure 6-16) button from the navigation menu.
2 Select the “GAS SYSTEM” (010) button from the sub-menu.

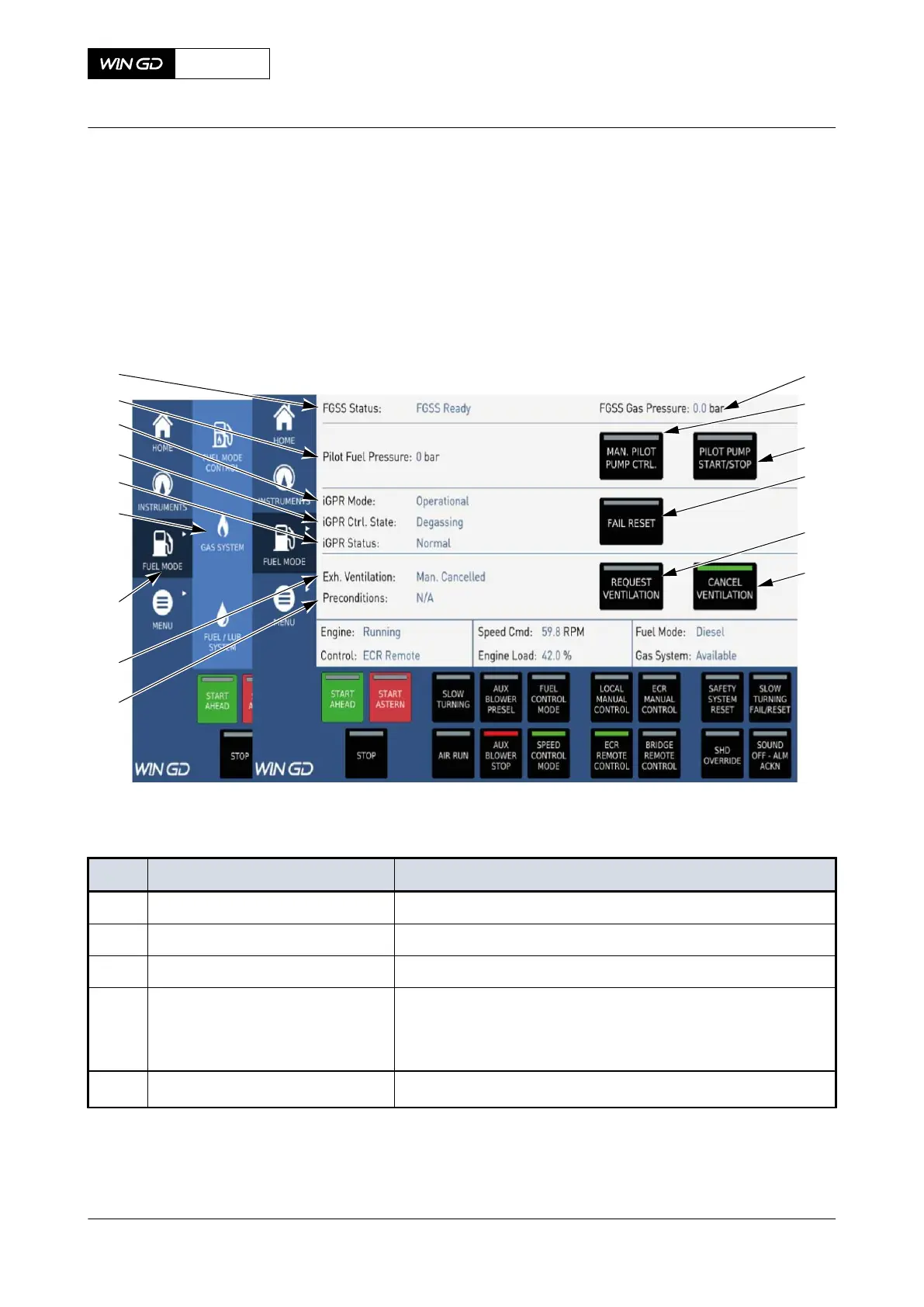

Fig 6-16 MCP page - GAS SYSTEM
004
002
003
005
006
011
009
010
007
008
012
013
014
015 001
Tab 6-7 GAS SYSTEM
Item Function Effect
001 FGSS Gas Pressure Shows the FGSS gas pressure value in bar
002 MAN. PILOT PUMP CTRL Starts the manual pilot pump control function
003 PILOT PUMP START/STOP Starts the pilot pump start/stop function
004 FAIL RESET button Resets a failure that occurred during gas preparation
NOTE: Use this button only when you have done the related
measures to repair the failure.
005
REQUEST VENTILATION button
Sends a signal for ventilation request
