WinGD X72-B - MCP Layout

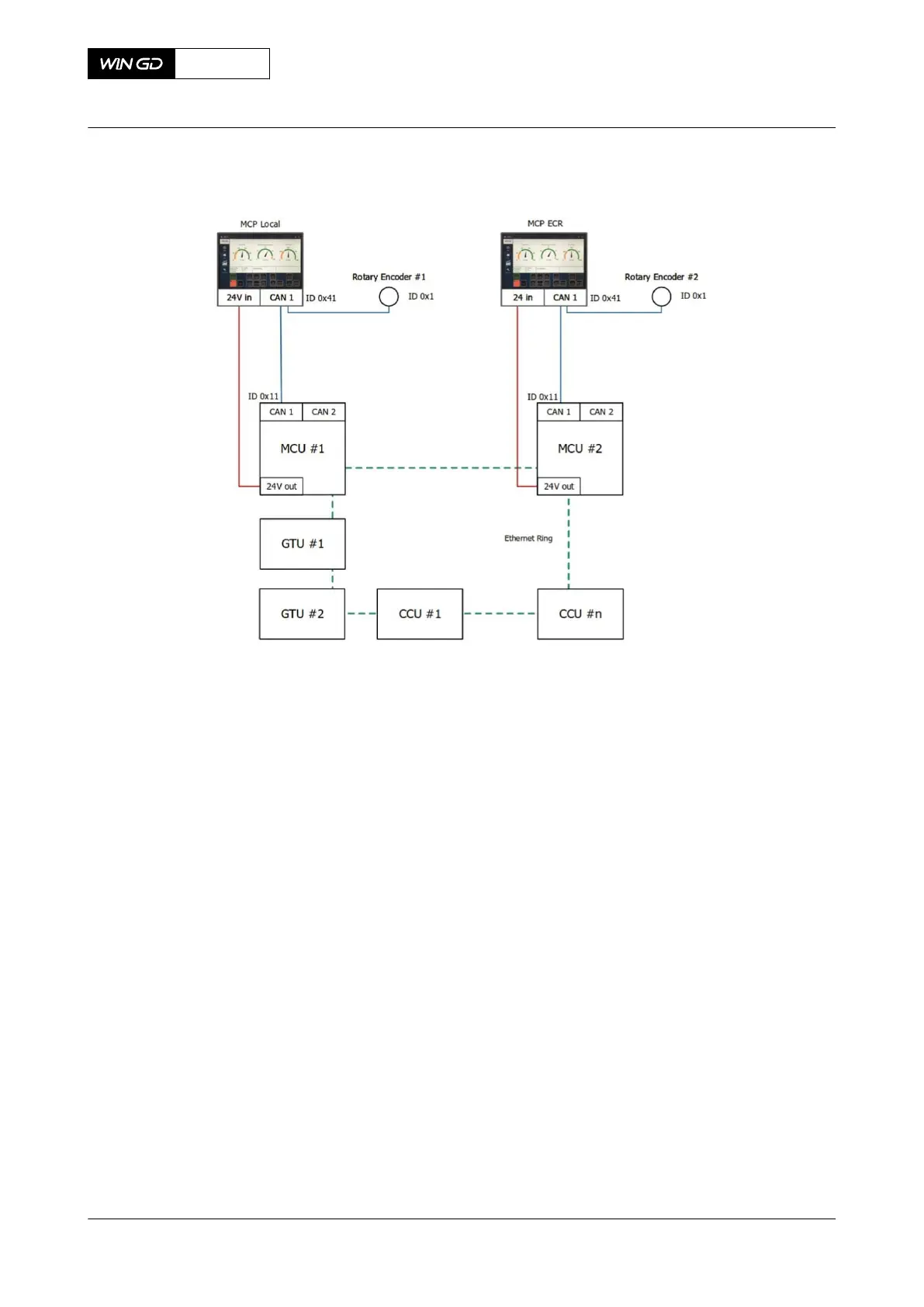

Fig 6-1 MCP layout
6.1.3 Functions of the engine control system
The main functions of the engine control system are as follows:
•
Starting valve control
•
Servo oil pressure control
•
Exhaust valve control
•
Cylinder lubricating control
•
Engine speed and crank angle sensor monitoring
•
Diesel fuel pressure control
•
Diesel fuel injection control
•
For a DF engine, also gas injection control
6.1.4 External control systems
The Diesel Engine Control and Optimizing Specification (DENIS) and the engine control system
(ECS) are designed so that different remote controls can be used. All nodes are fully specified.
The terminal boxes are installed on the engine, to which the cable ends from the control room or
from the bridge can be connected.
The engine control has all the parts necessary to operate and monitor the engine, and for the
safety of the engine.
