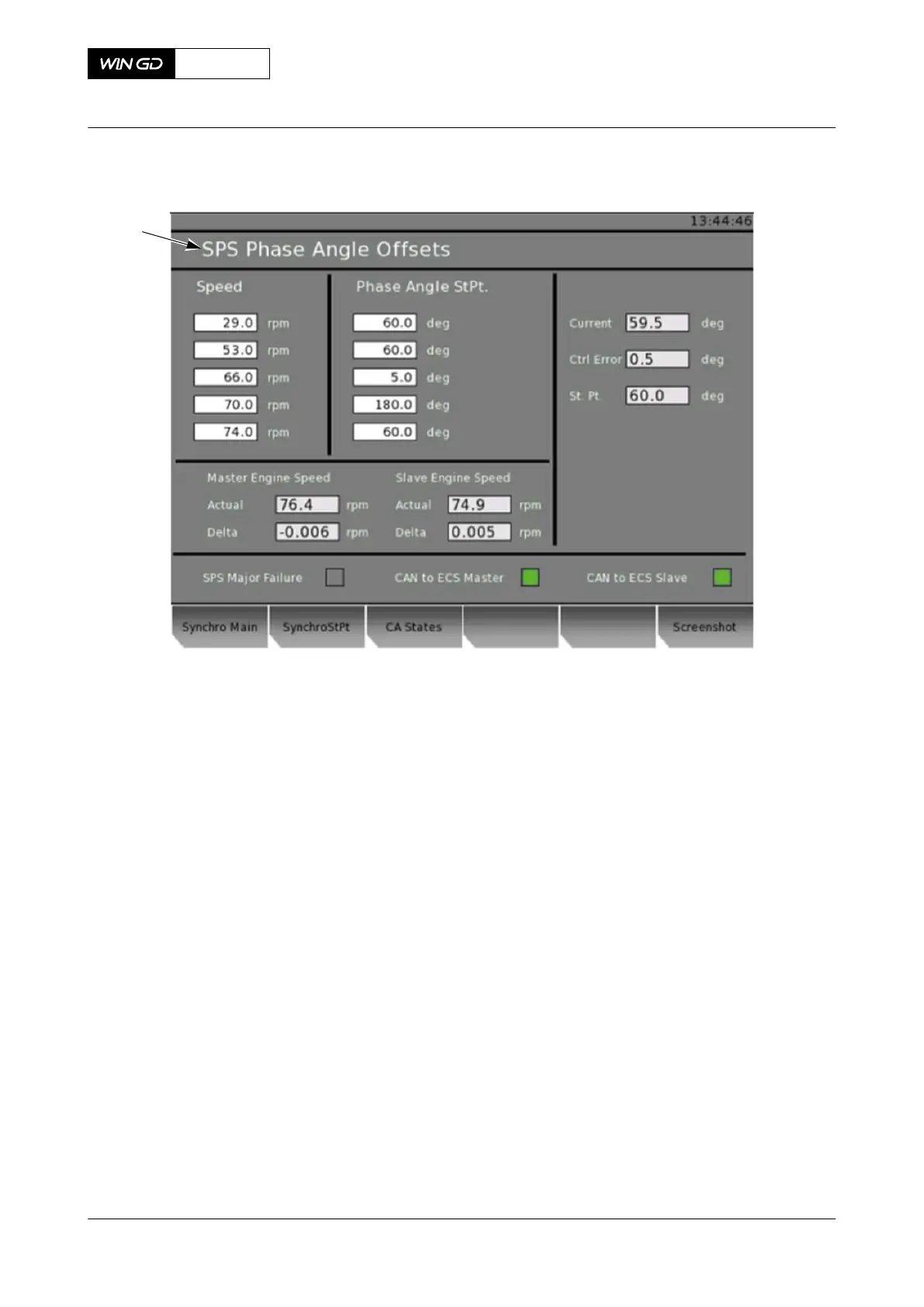

Fig 6-36 SPS Phase Angle Offsets LDU page
6.6.4 Monitoring of the synchro phasing system
In addition to the “Synchro Phasing System Status” (see, Figure 6-37) page, there is a LDU page
named “Crank Angle and Speed States” which shows the below data:
•
The TDC data received from the engines.
•
The current reference speed of the engines.
•
The running ahead of the engines.
•
The actual speed of the engines.
•
The speed set points difference of one or two engines.
This page is used for monitoring and also helps in troubleshooting.
