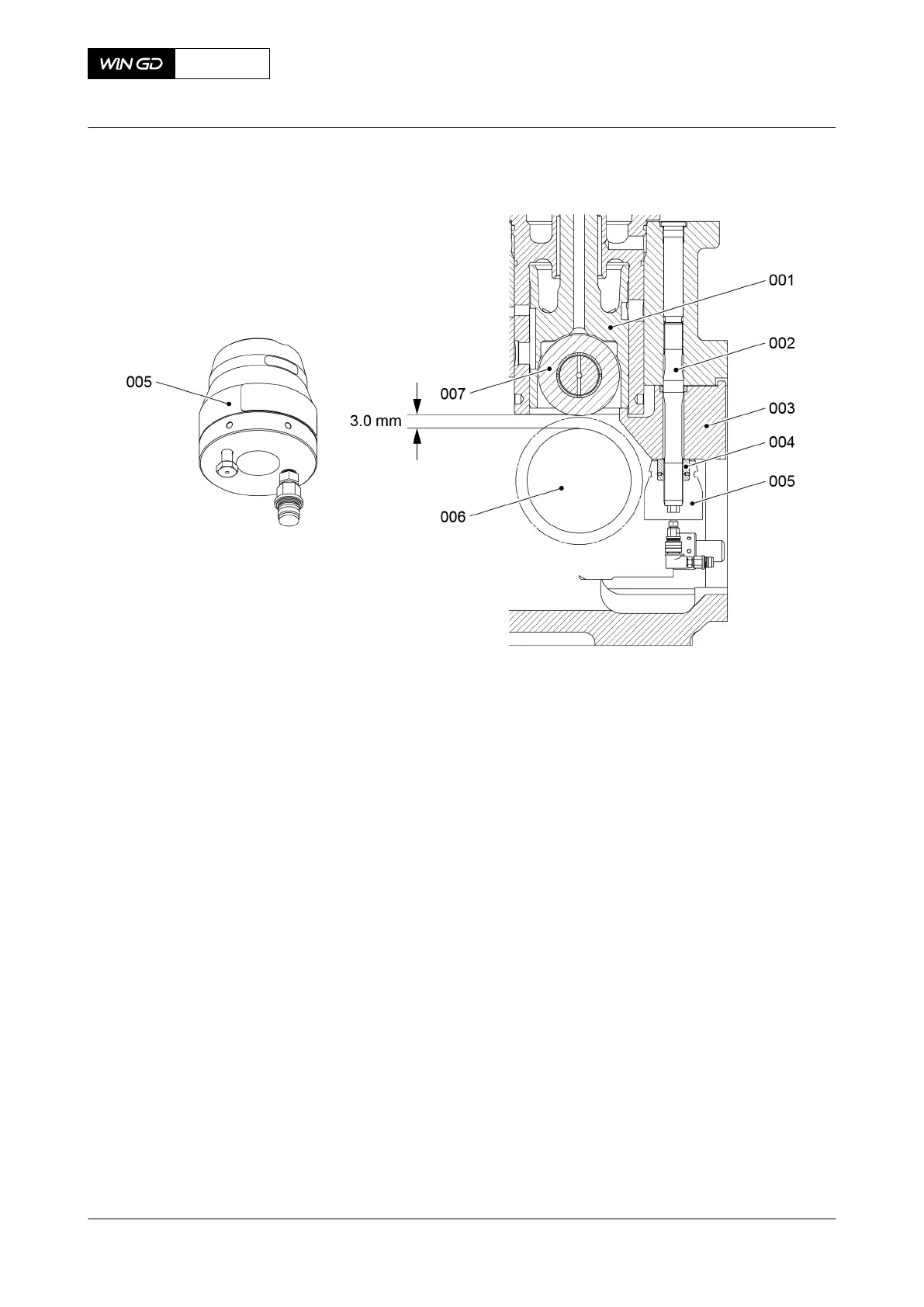

Fig 10-6 Pre-tensioner install
11 Install the pre-tensioner (005, Figure 10-6) on to the elastic bolt (002).
12 Make sure that the pre-tensioner (005) touches the pad (003).
13 Use the pre-tensioner (005) to adjust the tension of the elastic bolt (002).
14 Remove the pre-tensioner (005). Refer to the Maintenance Manual for more information.
15 Make sure that the roller (007) is approximately 3.0 mm above the cam (006).
16 Install the cover (006, Figure 10-5).
NOTE: For the torque values and lubrication of the screws, refer to the Maintenance
Manual tightenings instruction.
