6.5.8 MCP page - TREND - Option for WiCE
This page shows the trend with time-based where various signals can be added from the right side
of the screen. Signals are predefined

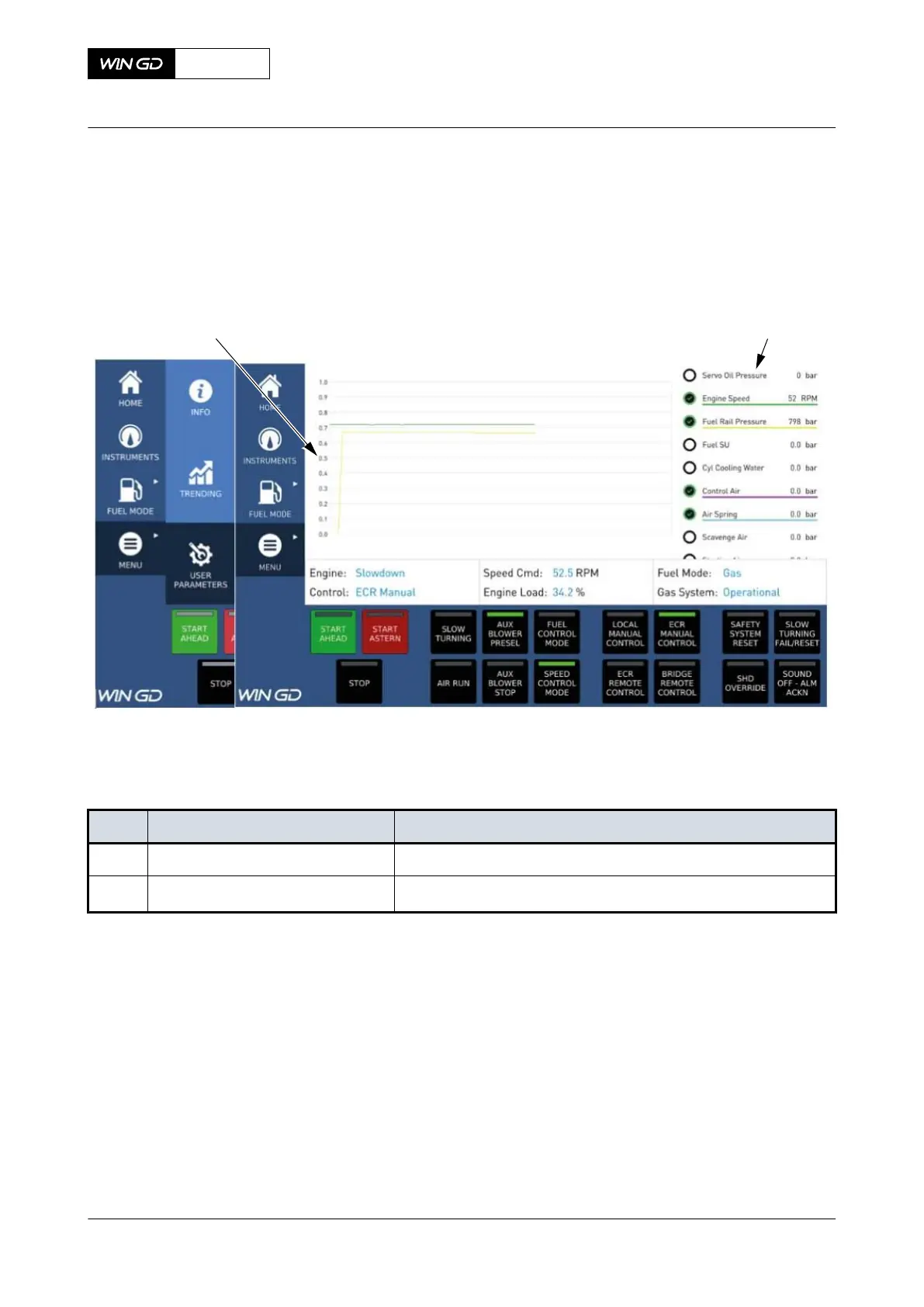

Fig 6-28 MCP page - TREND
002001
Tab 6-19 MCP page - TREND
Item Function Effect
001 Selection field Highlights the selected parameters
002
Diagram field
Shows the trend of the selected parameters
X72-B
AA00-4618-04AAA-043B-A
Operation Manual MCP page - TREND - Option for WiCE
