WinGD X72-B - Starting Air System (Generic and Simplified)

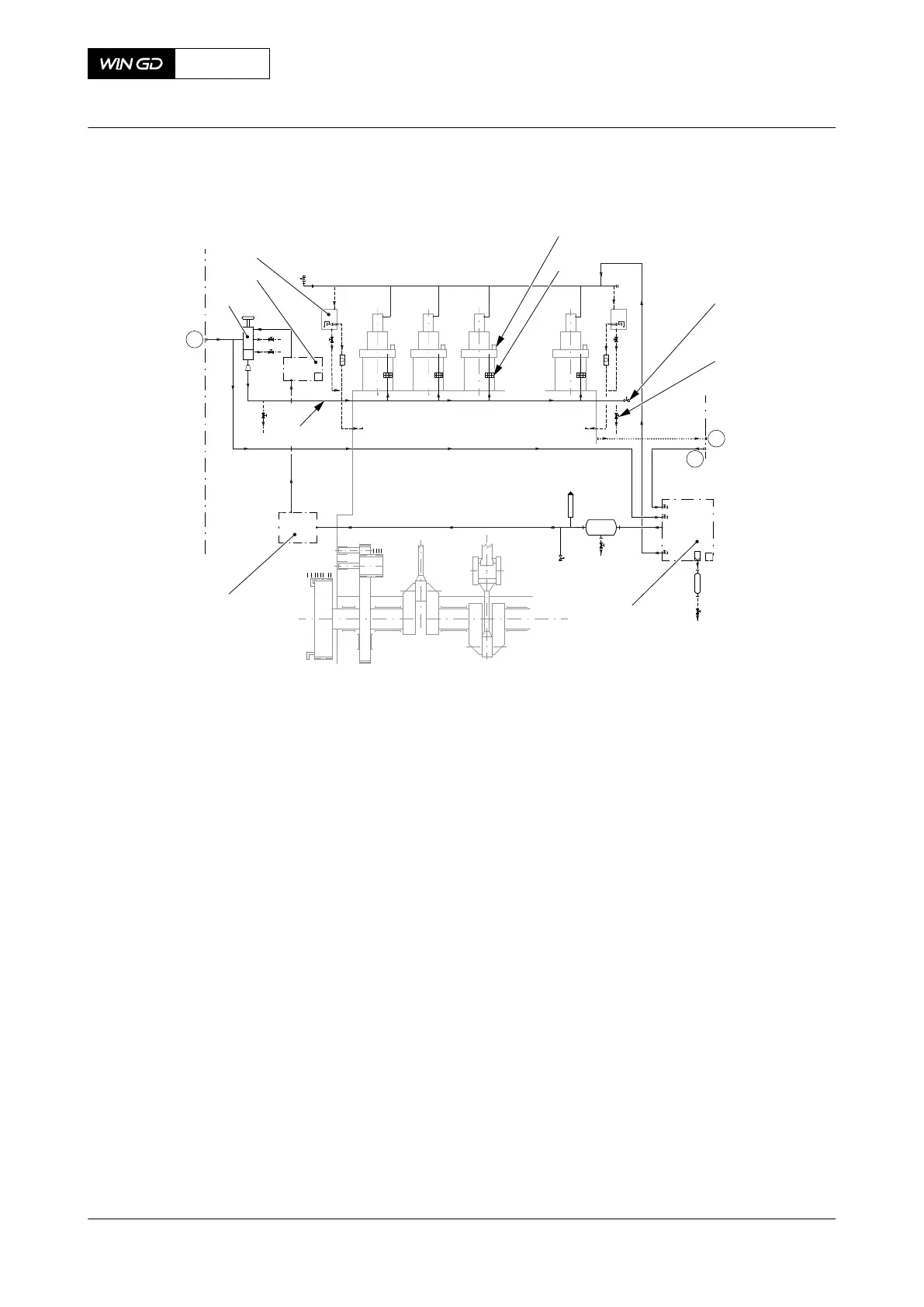

Fig 4-5 Starting air system (generic and simplified)
Cyl. 1 Cyl. 2 Cyl. 3 Cyl. n
E
A
PLANT
ENGINE
ENGINE
PLANT
40
001
002
003
004
005
006
008
009
010
007
41
45
Legend
001 Solenoid valve 006 Disengaging device turning gear
002 Flame arrestor 007 Starting air supply pipe
003 Safety valve 008 Starting air shut-off valve
004 Drain valve 009 Valve unit for start E
005 Control air supply 010 Collector for leakage oil from the air spring
X72-B
AA00-0000-00AAA-043D-A
Operation Manual Starting air system
Winterthur Gas & Diesel Ltd.
- 85 - Issue 003 2021-12
