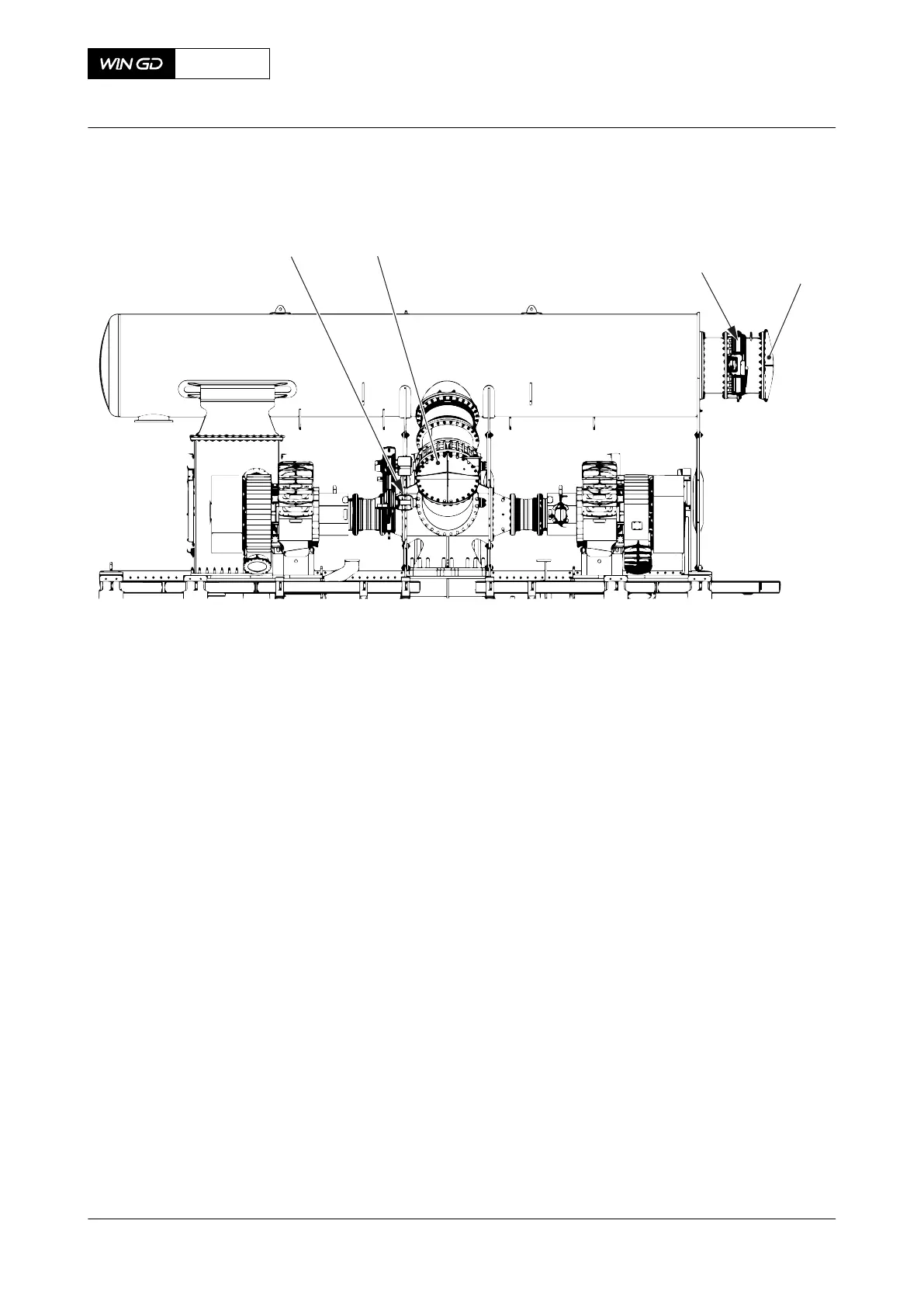

Fig 10-12 SCR system - covers (example for 2 turbocharger)
Legend
001 Cover V2 SCR outlet valve
V1 SCR inlet valve
1 Remove the pipe to the SCR system from the flange downstream of the valve V1.
2 Install the Cover (001, Figure 10-11 or Figure 10-12) to the flange.
3 Remove the pipe to the SCR system from the flange upstream of the valve V2.
4 Install the cover (001) to the flange.
CLOSE UP
• None
X72-B
AA00-9270-00AAA-720C-A
Operation Manual Temporary isolate the HP SCR system
