WinGD X72-B - MCP Page - GAV-Gas Admission Valve

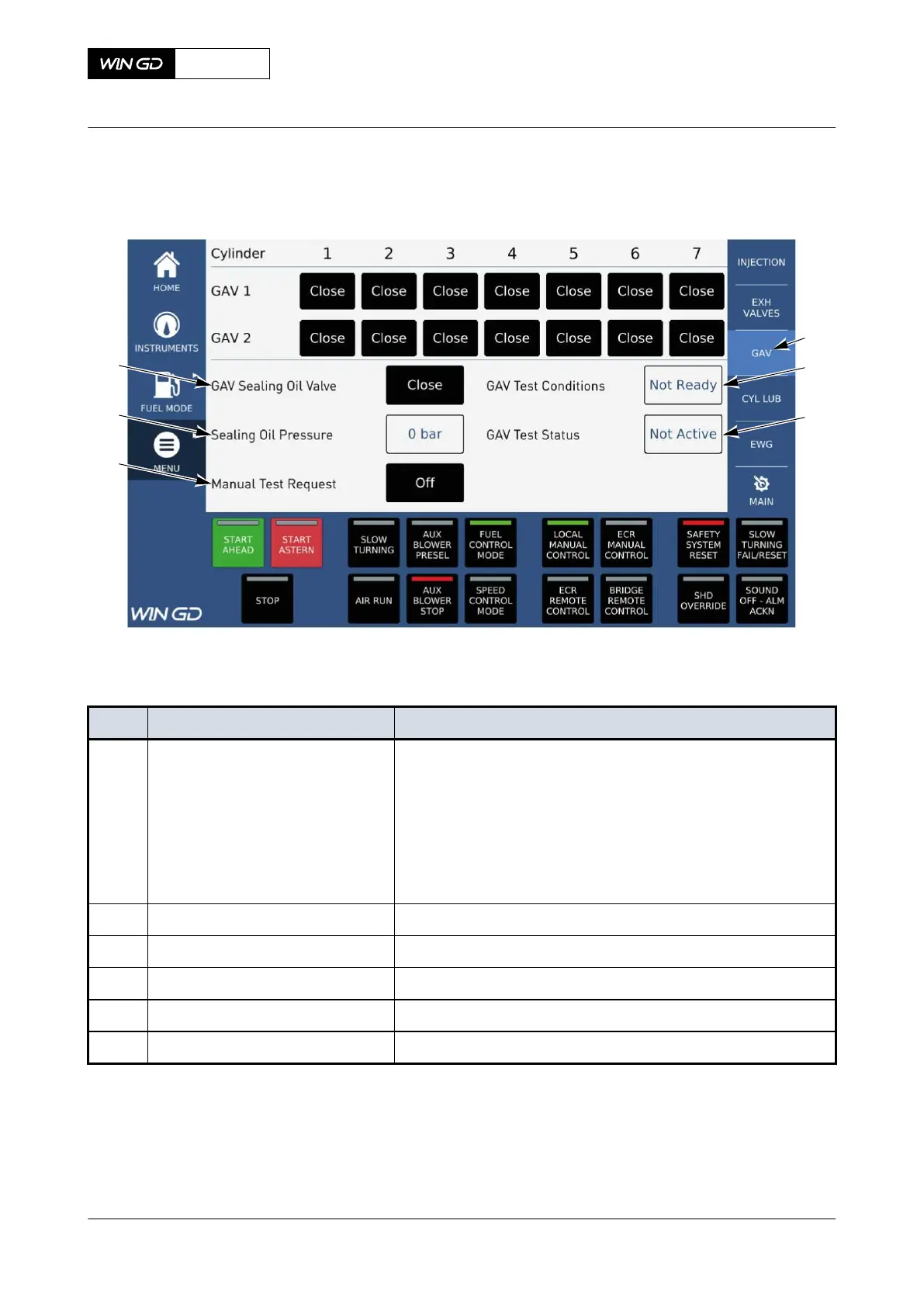

Fig 6-24 MCP page - GAV-Gas Admission Valve
001
002
003
005
006
004
Tab 6-15 MCP page - GAV-Gas Admission Valve
Item Function Effect
001 GAV button Opens the GAV-GAS admission valve user parameters
Parameters
•
Manual GAV operation at engine stop and it is necessary
to activate Servo oil using servo oil service pump and
GAV sealing oil
•
Manual activation of GAV sealing oil
•
Manual Test Request
002 GAV Test Conditions Shows the GAV test conditions is ready/not Ready
003 GAV Test Status Shows the GAV test status is Active/Not active
004 Manual Test Request Shows the manual test request is ON/OFF
005 Sealing Oil Pressure Shows the sealing oil pressure is in bar
006 GAV Sealing Oil Valve Shows the sealing oil valve is Close/Open
