WinGD X72-B - MCP Page - EWG-Exhaust Waste Gate Page

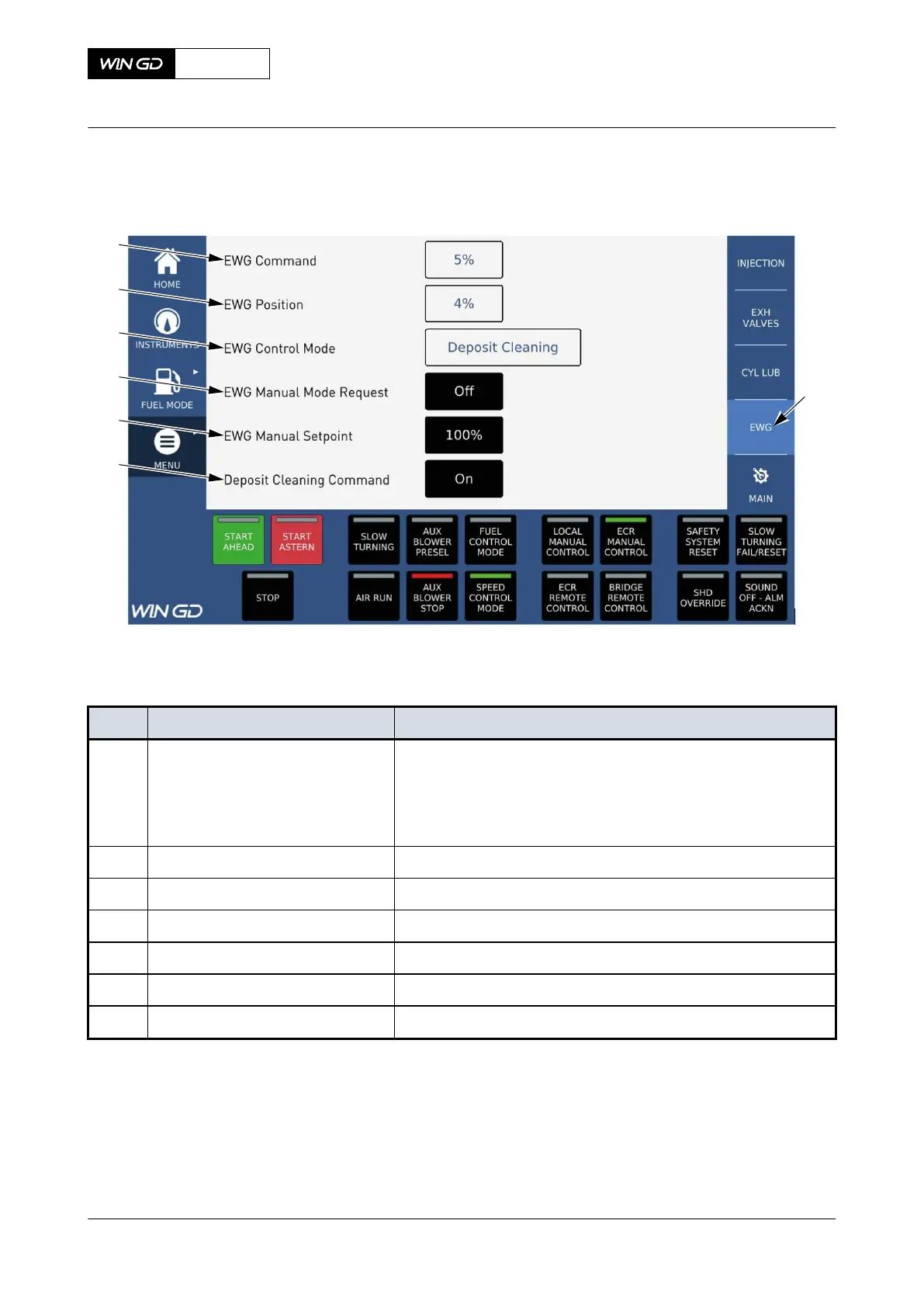

Fig 6-26 MCP page - EWG-Exhaust Waste Gate Page
001
002
003
004
005
006
007
Tab 6-17 MCP page - EWG-Exhaust Waste Gate Page
Item Function Effect
001 EWG-Exhaust waste gate Opens the EWG-Exhaust waste gate user parameter
Parameters:
•
Manual setpoint of EWG position
•
Deposit cleaning command
002 Deposit Cleaning Command Shows the deposit cleaning command is ON/OFF
003 EWG Manual Setpoint Shows the EWG manual setpoint is in percentage
004 EWG Manual Mode Request Shows the manual mode request is ON/OFF
005 EWG Control Mode Shows the EWG control modes
006 EWG Position Shows the EWG position in percentage
007 EWG Command Shows the EWG position in percentage
