The operation mode “Off” will automatically activate when the operation mode “Control on” is
deactivate.

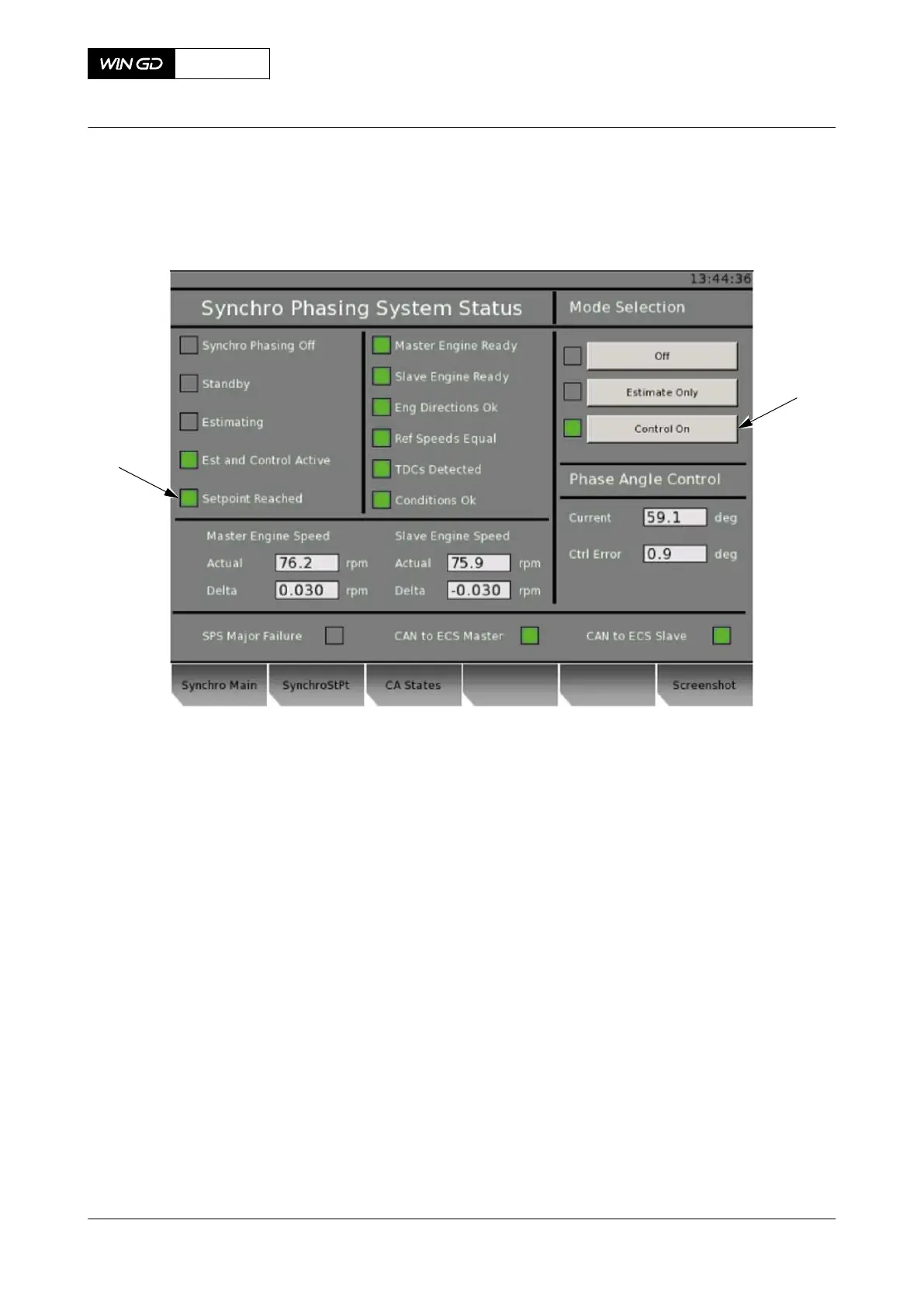

Fig 6-35 Synchro-Phasing System Status “Control On” LDU page
The setpoint map for the synchro phasing controller angle offsets can be seen and adjusted from
the LDU “SPS phase angle offsets” page.
1 The operation mode “Control On” must be active to adjust and control the phase angle offset.
2 Use the LDU wheel to get the correct values for “SPS Phase Angle Offsets” (001, see Figure
6-36) page.
3 Push the LDU wheel to select the field, rotate the LDU wheel to adjust the value and push
again the LDU wheel to confirm the value.
4 The relative phase angle is now controlled as given in Para 6.6.2.
The operation mode “Control On” must be active to preselect and use the reference phase angle.
X72-B
AA00-0000-00AAA-043V-A
Operation Manual Synchro phasing system
Winterthur Gas & Diesel Ltd.
- 286 - Issue 003 2021-12
