WinGD X72-B - MCP Page - Injection - ICU Venting

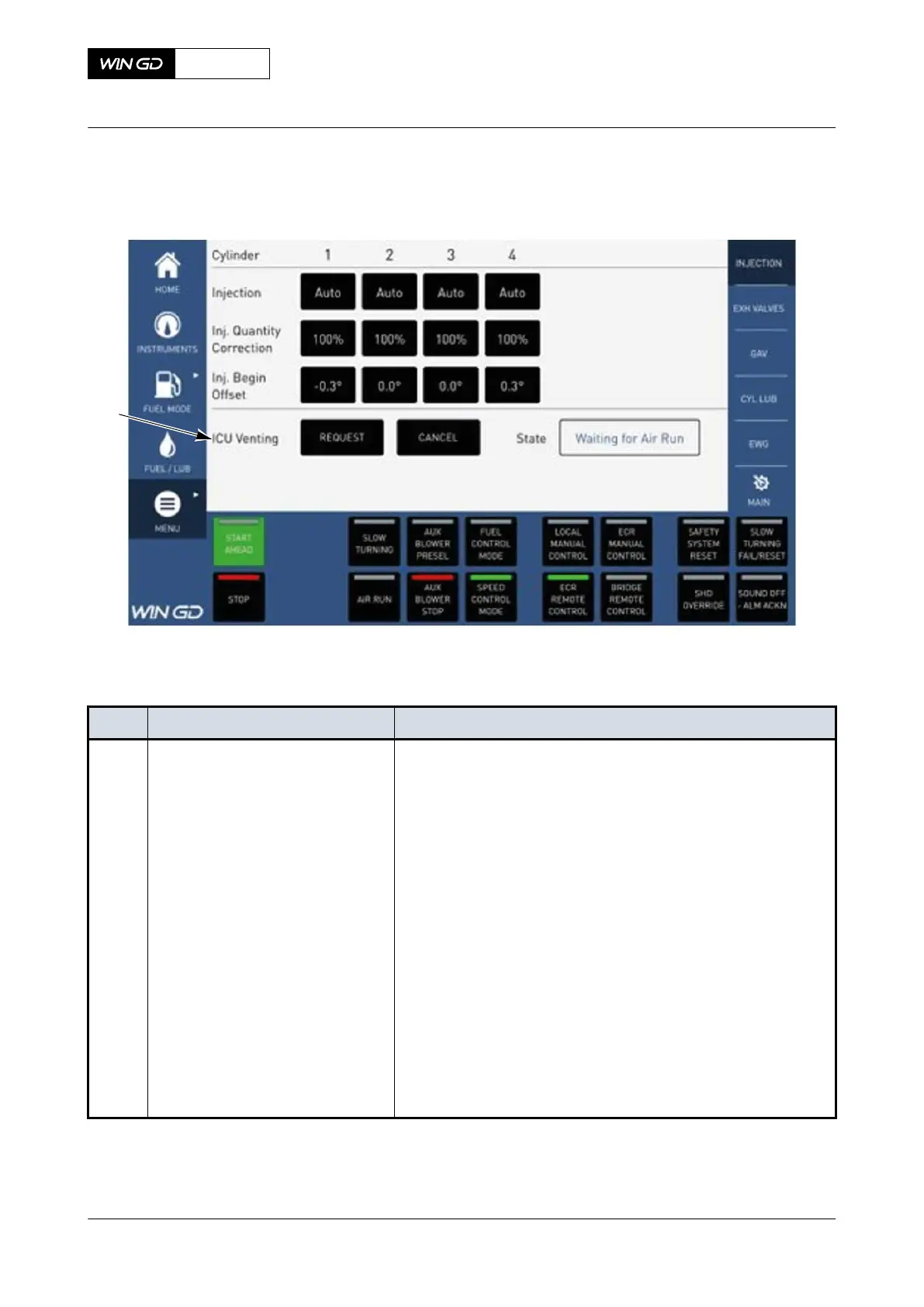

Fig 6-22 MCP page - Injection - ICU Venting
001
Tab 6-13 MCP page - Injection - ICU Venting
Item Function Effect
001 ICU venting To start the ICU venting:
•
The engine must be in ready to start (KM) or stop state to
start the ICU venting
•
Rail pressure must be between 150 bar -350 bar (default
value)
To rise the fuel rail pressure execute an air run
Indications:
•
Inactive
•
Waiting for air run
•
Waiting for correct fuel pressure
•
During the fuel injection venting
the fuel injection venting state will switch between Manual trigger
OFF and Manual trigger ON
To stop the ICU venting follow the below procedure:
•
Cancel ICU Venting
•
Start Engine
