6.5.11 Local control panel - general
The local control cabinet has the items that follow, refer to Figure 6-31:
Touch screen (001) of the manual control panel (MCP)
Fuel dial knob (002)
The manual control panel (MCP) is a multi-purpose module. The touch screen (001) of the manual
control panel (MCP) has the items that follow:
Indication field (003)
17 function buttons (004) with a LED indication, refer to Table 6-23 - Function buttons of
the manual control panel (MCP)
Navigation menu (005) for sub menus, refer to Table 6-22 - Navigation menu of the manual
control panel (MCP).

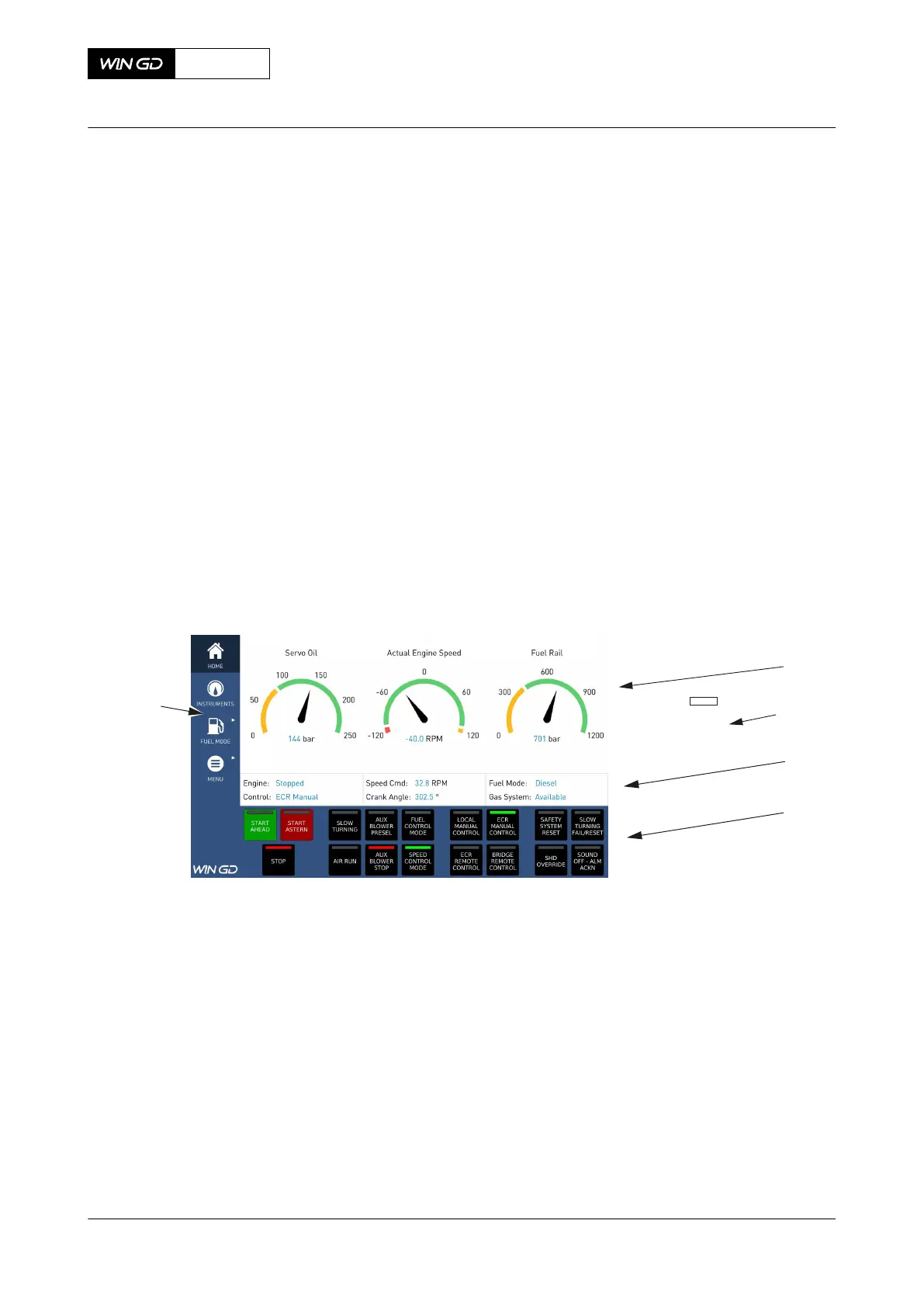

Fig 6-31 Local control cabinet
001
002
003
004
005
Legend
001 Touch screen 004 Function button
002 Fuel dial knob 005 Navigation menu
003 Indication field
X72-B
AA00-4618-00AAC-043B-A
Operation Manual Local control panel - general
Winterthur Gas & Diesel Ltd.
- 278 - Issue 003 2021-12
