PROCEDURE
1 Compare the wear of the parts that follow with the maximum permitted dimensions given
in section 3.3 Clearances - general.
•
Scraper rings (001, 007, Figure 7-29)
•
Gaskets (002, 003).
2 Make sure that the springs (004, 005) and the O-rings (008) are serviceable.
3 If necessary, replace the worn or the unserviceable parts.

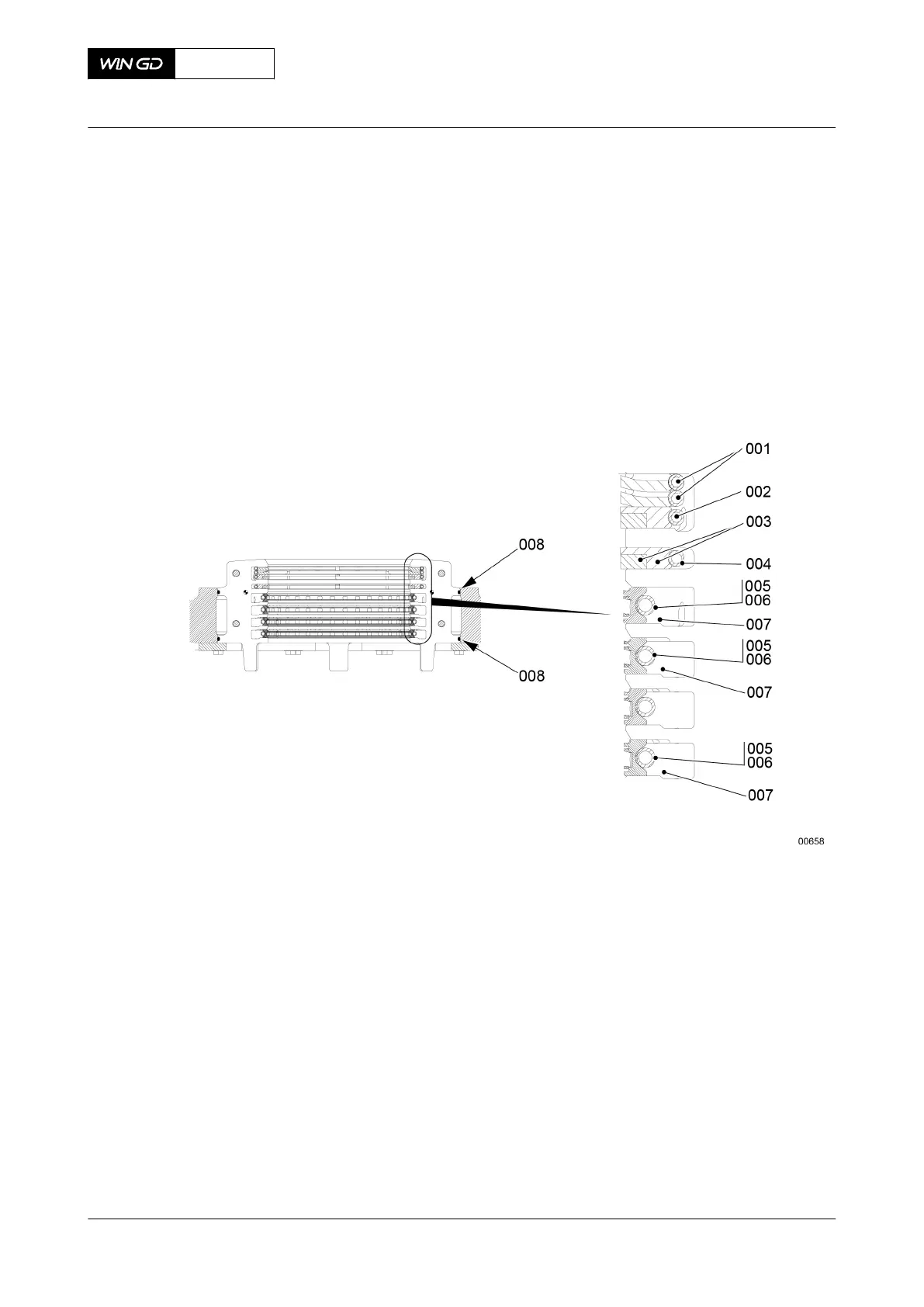

Fig 7-29 Piston rod gland (example)
Legend
001 4-part scraper ring 005 Spring
002 4-part gaskets 006 Ring support
003 4-part gaskets 007 3-part scraper ring
004 Spring 008 O-rings
CLOSE UP
• None
X72DF
AA00-2303-00AAA-360A-A
Maintenance Manual Piston rod gland - do a check of the wear
Winterthur Gas & Diesel Ltd.
- 229 - Issue 002 2020-10
