PROCEDURE
1 Make sure that the pressure in the starting air system is released.
2 Disconnect the electrical connection from the 3/2-way solenoid valve (002, Figure 7-47).
3 Remove the screws from the 3/2-way solenoid valve (002).
4 Remove the 3/2-way solenoid valve (002).

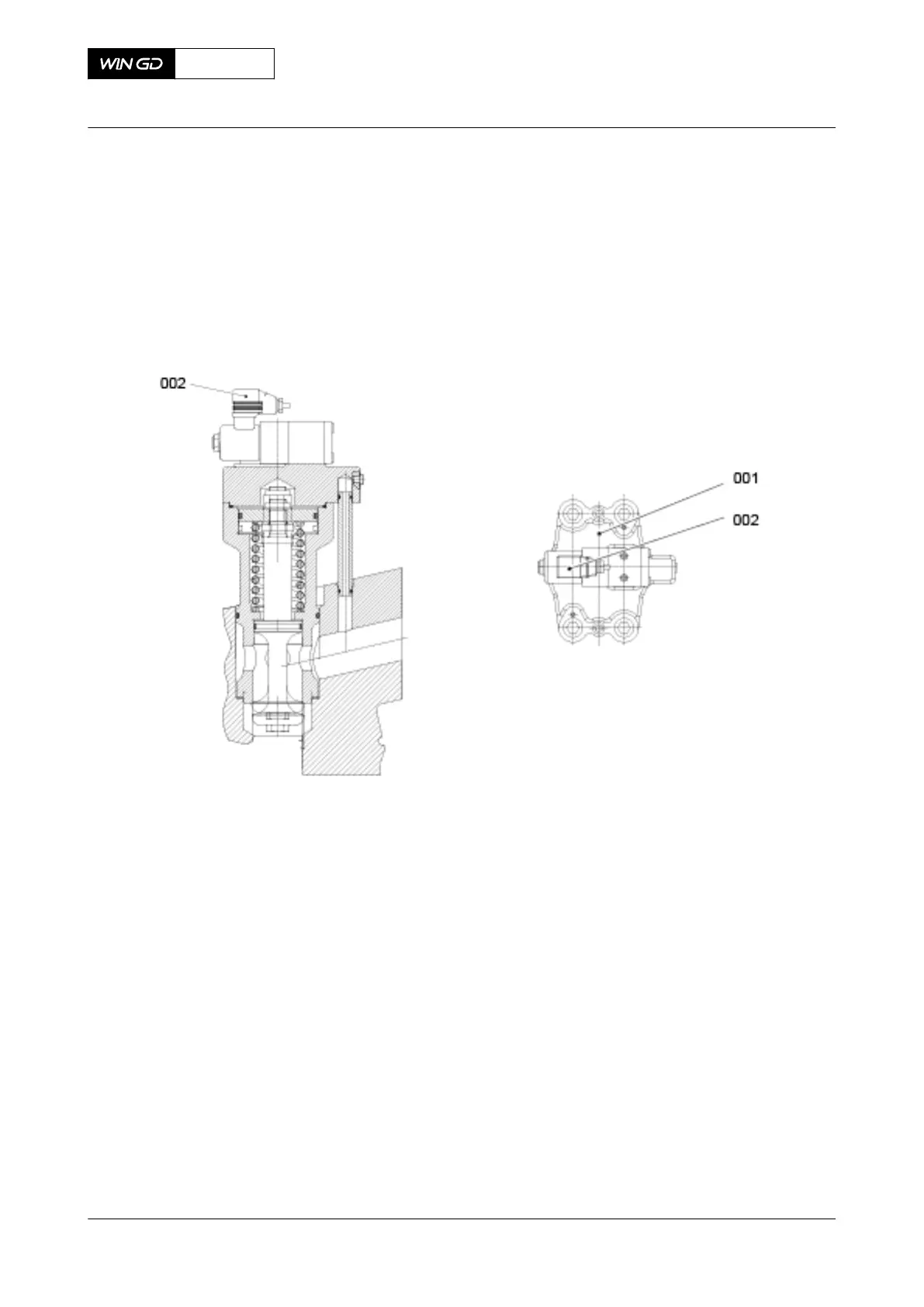

Fig 7-47 Starting air valve (example)
CLOSE UP
• None
X72DF
AA00-2728-00AAB-520A-A
Maintenance Manual Starting air valve - remove the solenoid valve
Winterthur Gas & Diesel Ltd.
- 273 - Issue 002 2020-10
