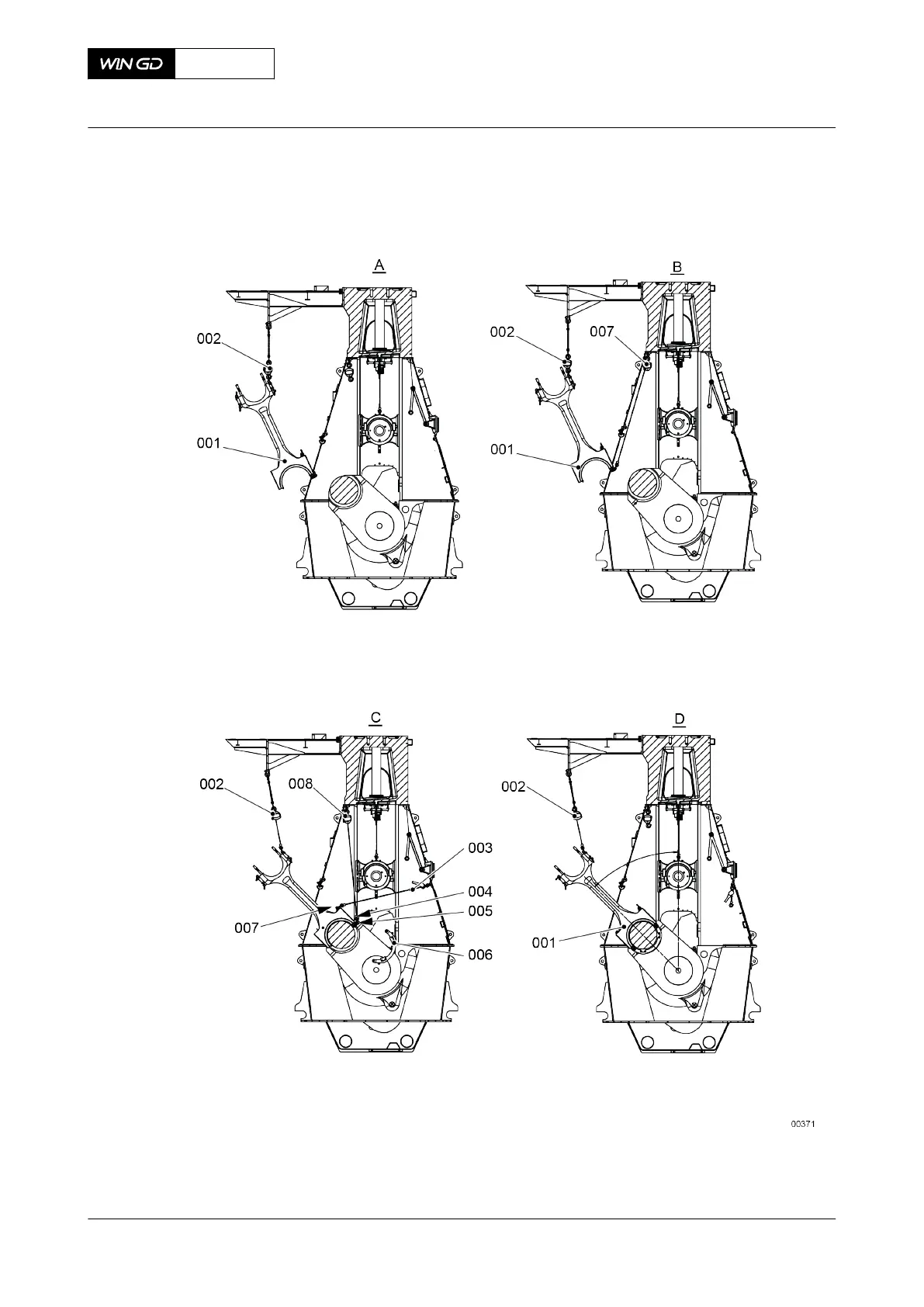

Fig 8-42 Connecting rod - install 1
16 Operate the turning gear and the chain block (002, Figure 8-43) to move the connecting
rod clockwise to the position shown in view A.
17 Attach the chain block (001) to the bottom shackle on the lifting tool.
X72DF
AA00-3303-00AAA-720A-A
Maintenance Manual Connecting rod - install
Winterthur Gas & Diesel Ltd.
- 436 - Issue 002 2020-10
