PROCEDURE

1 Use the socket wrench to remove the relief valve (001, Figure 10-26) from the

connecting piece (004) on the fuel rail (005).

NOTE: The two bores (002) identify the relief valve (001) as a new item.

2 Make sure that there is no damage to the housing (003).

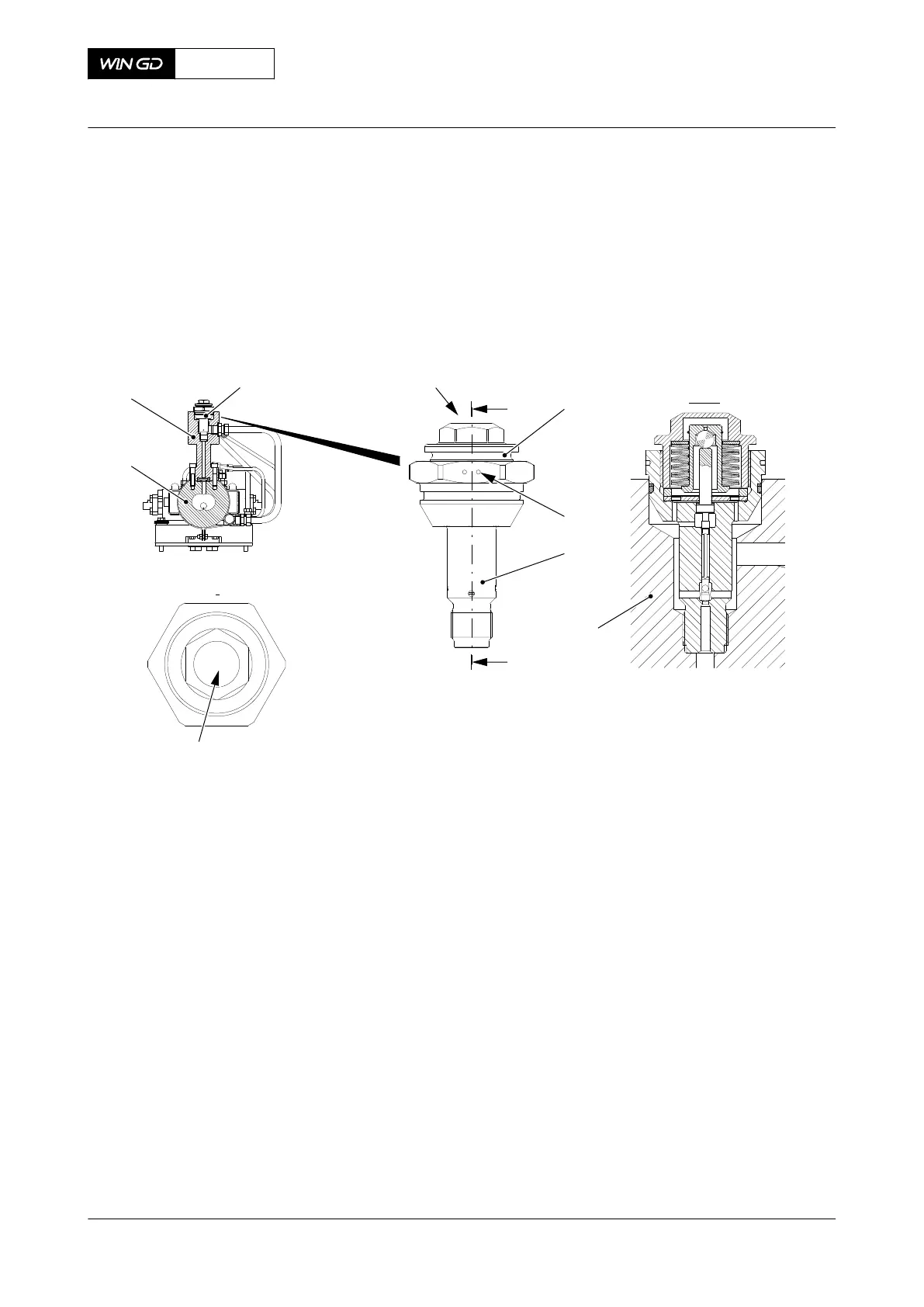

Fig 10-26 Fuel overpressure safety valve

II - II

Applicable pressure that

opens the relief valve

001

002

003

004

005

004

1250 bar

00828

CLOSE UP

• None

X72DF

AA00-5562-01AAA-520A-A

Maintenance Manual Fuel rail - remove the overpressure safety valve

Winterthur Gas & Diesel Ltd.

- 593 - Issue 002 2020-10
