PROCEDURE
1 Make sure that the pressure in the fuel rail is zero.
2 Prepare the flow limiting valve (FLV) for removal.
2.1 Clean the work area adjacent to the FLV.
2.2 Remove the HP fuel pipes.
2.3 Remove the leakage pipes.
2.4 Apply protection to the openings on the FLV.
2.5 Apply protection to the open ends of the pipes.
3 Remove the bolts (002, Figure 10-30) from the FLV.
4 Lift the FLV and put it on an applicable clean surface.
5 Make sure that the dowel pins stay in the fuel rail.
6 Remove and discard the lip seal (003).

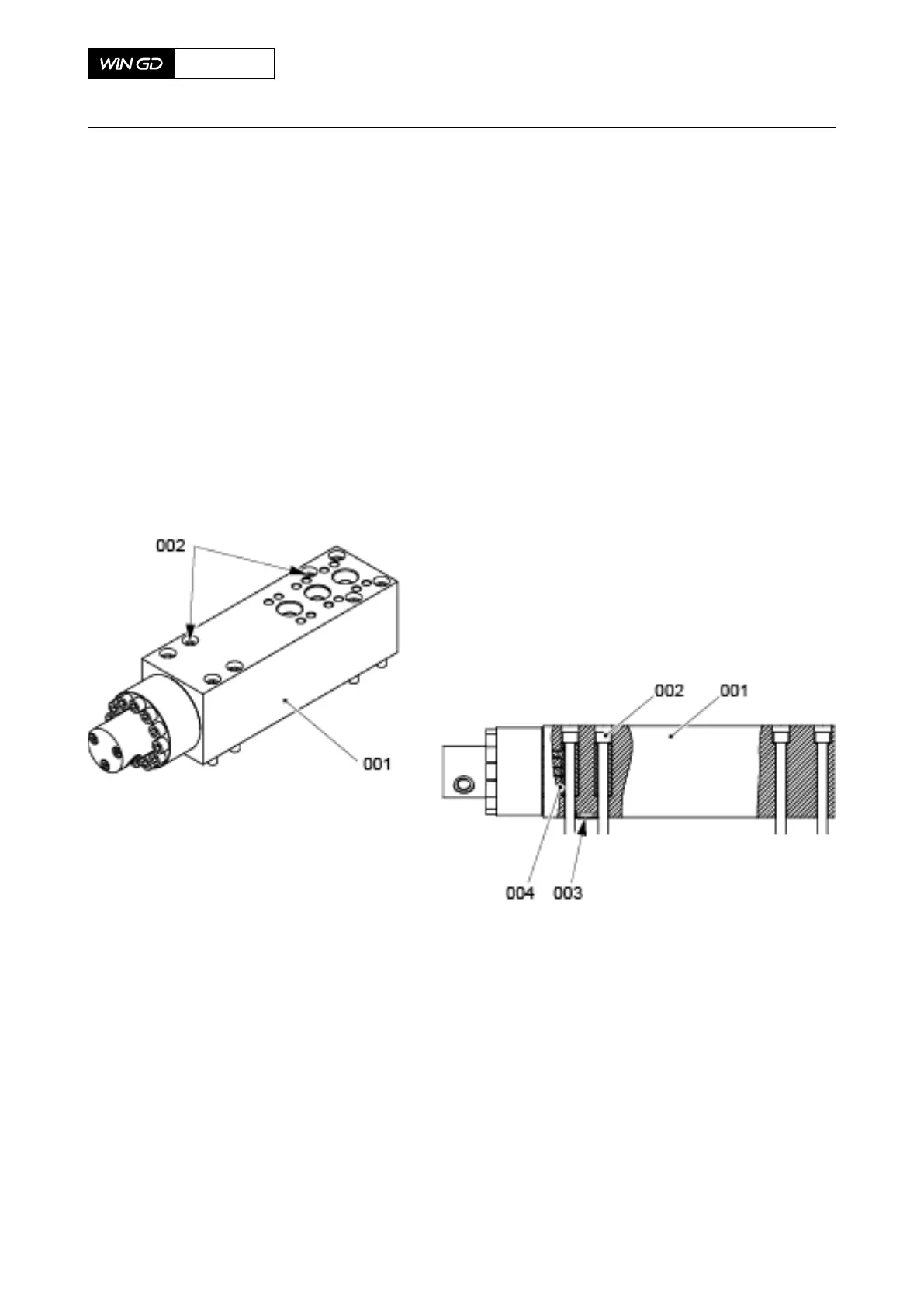

Fig 10-30 Flow limiting valve
X72DF
AA00-5565-00AAA-520A-A
Maintenance Manual Flow limiting valve - remove
Winterthur Gas & Diesel Ltd.
- 605 - Issue 002 2020-10
