3 Prepare the fixed (rear) side of the SAC for removal.
3.1 If applicable, install the two rollers (002, Figure 11-16).
3.2 Remove the clamps (009), the collar (010) and the flange (008).
3.3 Remove and discard the O-ring (011).
3.4 Attach two swivel lugs on the outer positions of the SAC (004).

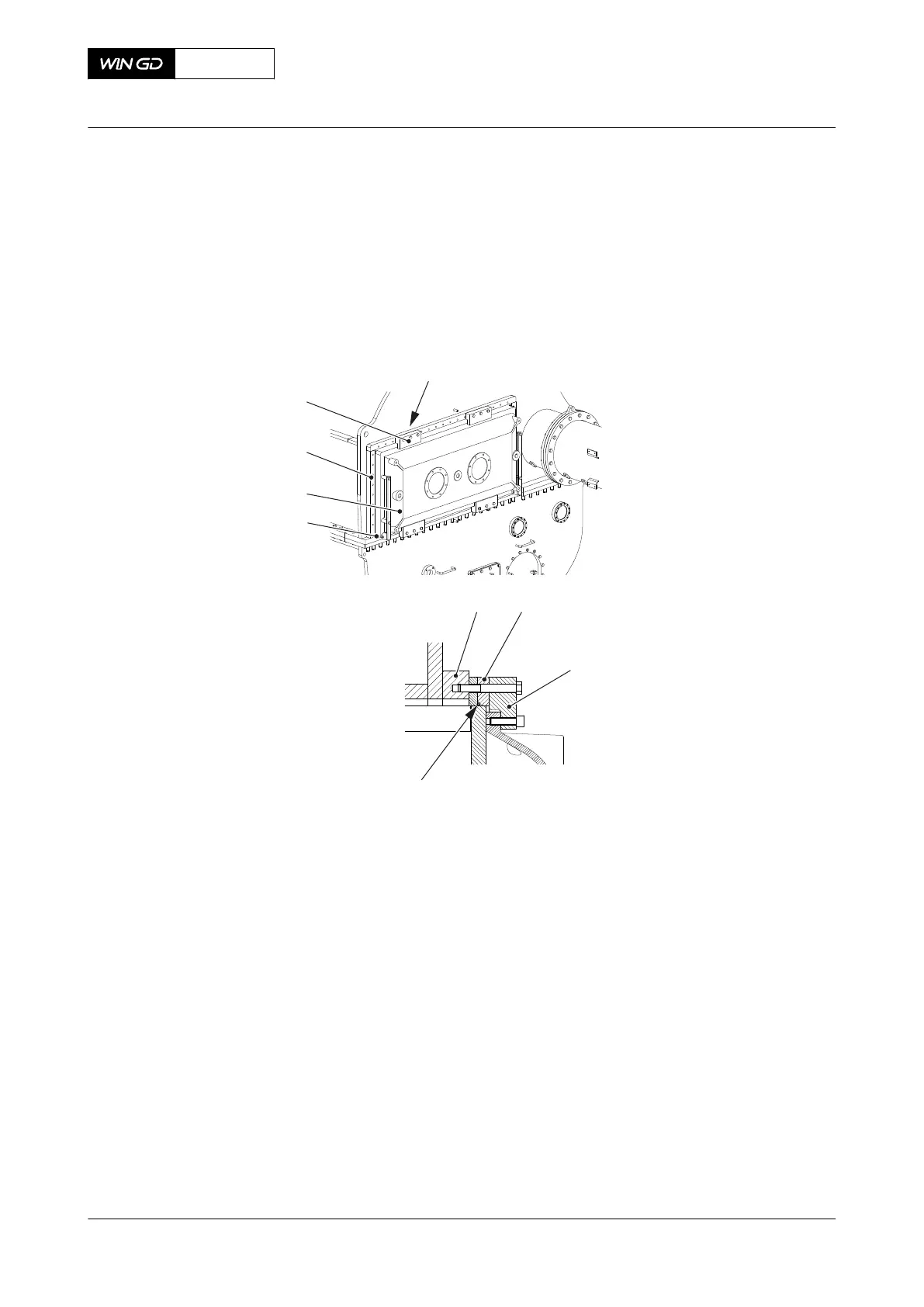

Fig 11-16 Scavenge air cooler (example) - prepare rear side
II
004
002
008
009
009
008 010
011
II
X72DF
AA00-6606-00AAA-520A-A
Maintenance Manual Scavenge air cooler - remove
