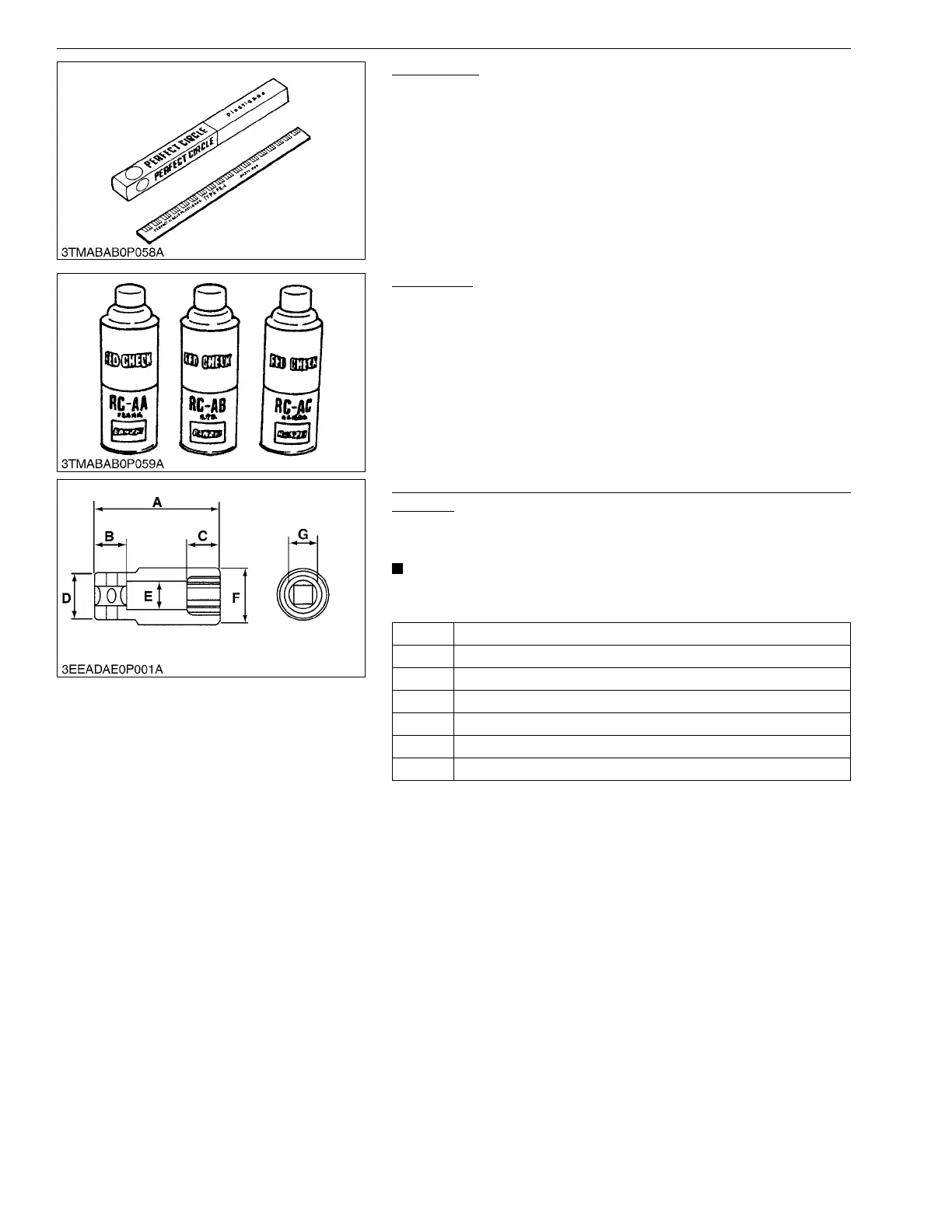

Plastigauge
Code No.
• 07909-30241
Application
• Use to check the oil clearance between crankshaft and bearing,
etc..
Measuring range
• Green: 0.03 to 0.07 mm (0.001 to 0.003 in.)
• Red: 0.05 to 0.1 mm (0.002 to 0.006 in.)
• Blue: 0.1 to 0.2 mm (0.004 to 0.009 in.)
WSM000001GEG0022US0
Red Check
Code No.
• 07909-31371
Application
• Use to check cracks on cylinder head, cylinder block, etc..
WSM000001GEG0023US0
Socket Wrench for Crank Pulley Nut (46 mm Deep Socket
Wrench)
Application
• Use to loosen and tighten the fan drive pulley mounting nut.
NOTE
• The special tool is not available, so make it. Refer to the
figure.
9Y1211012GEG0010US0
A 100 mm (3.94 in.)
B 25.0 mm (0.98 in.)
C 27.0 mm (1.06 in.)
D 45.0 mm dia. (1.77 in. dia.)
E 35.0 mm dia. (1.38 in. dia.)
F 62.5 mm dia. (2.46 in. dia.)
G 46.0 mm (1.81 in.)
