[6] ACCELERATION SENSOR
Acceleration Sensor Wire Adjustment
1. Turn the key switch to OFF position and stop the engine.
2. Set the acceleration lever (1) to MAX rpm position.
3. Measure the clearance "A" between acceleration lever (1) and
the sensor lever (2).
4. If measurement is not within factory specification, adjust the
adjusting nut (4).
NOTE
• If adjusting the acceleration sensor wire, be sure to
perform mode "c" adjustment (See page 9-S14).
(When reassembling)
9Y1211012ENS0113US0
Clearance "A" Factory specification
1 to 3 mm
0.04 to 0.1 in.
Tightening torque
Acceleration wire adjusting
nut
12 to 13 N·m
1.2 to 1.4 kgf·m
8.7 to 10 lbf·ft

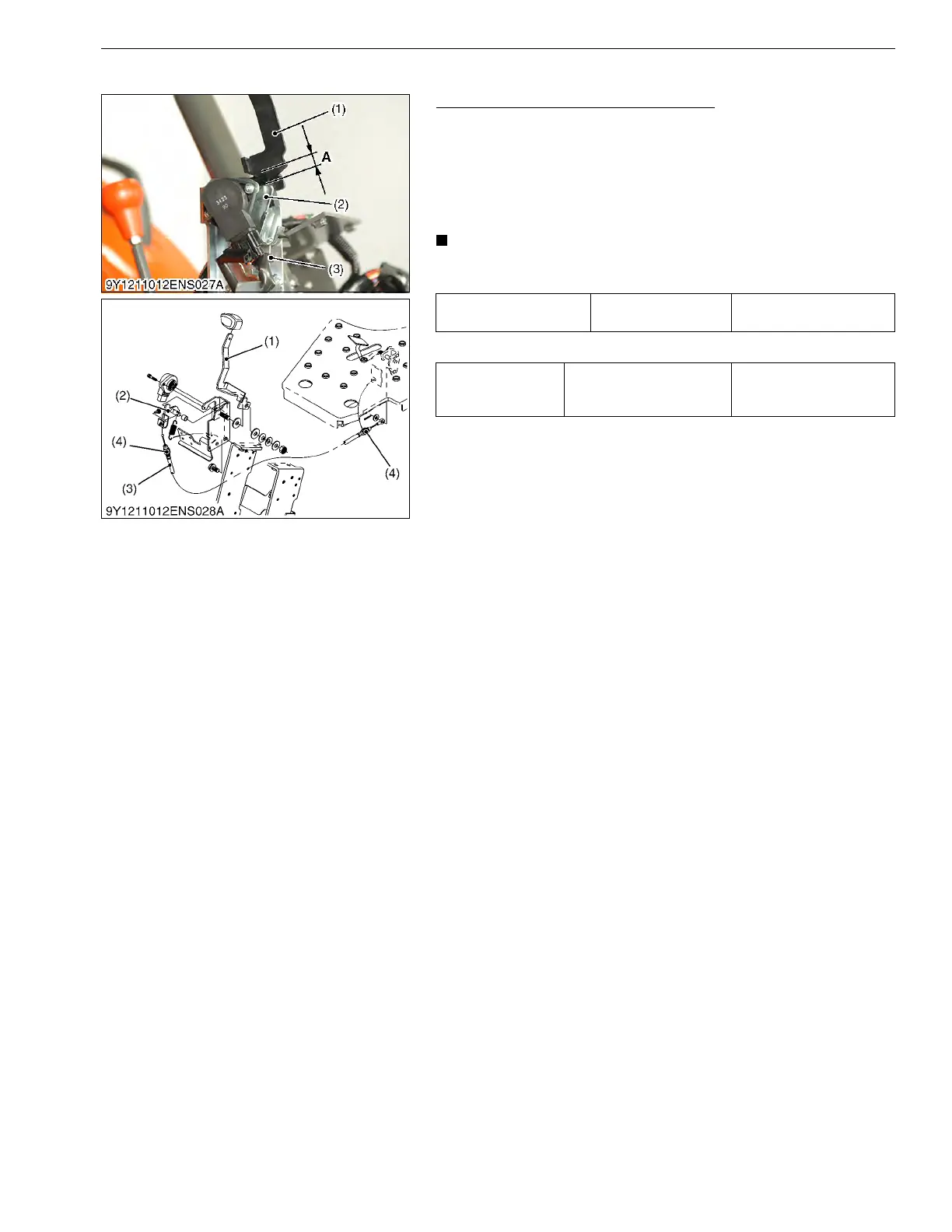

(1) Acceleration Lever
(2) Sensor Lever
(3) Acceleration Wire
(4) Adjusting Nut
