wsm L3301 - Mechanism

TRANSMISSION
L3301, L3901, L4701, WSM
3-M35
(2) Mechanism
[A] L3301/L3901
Shift Linkage

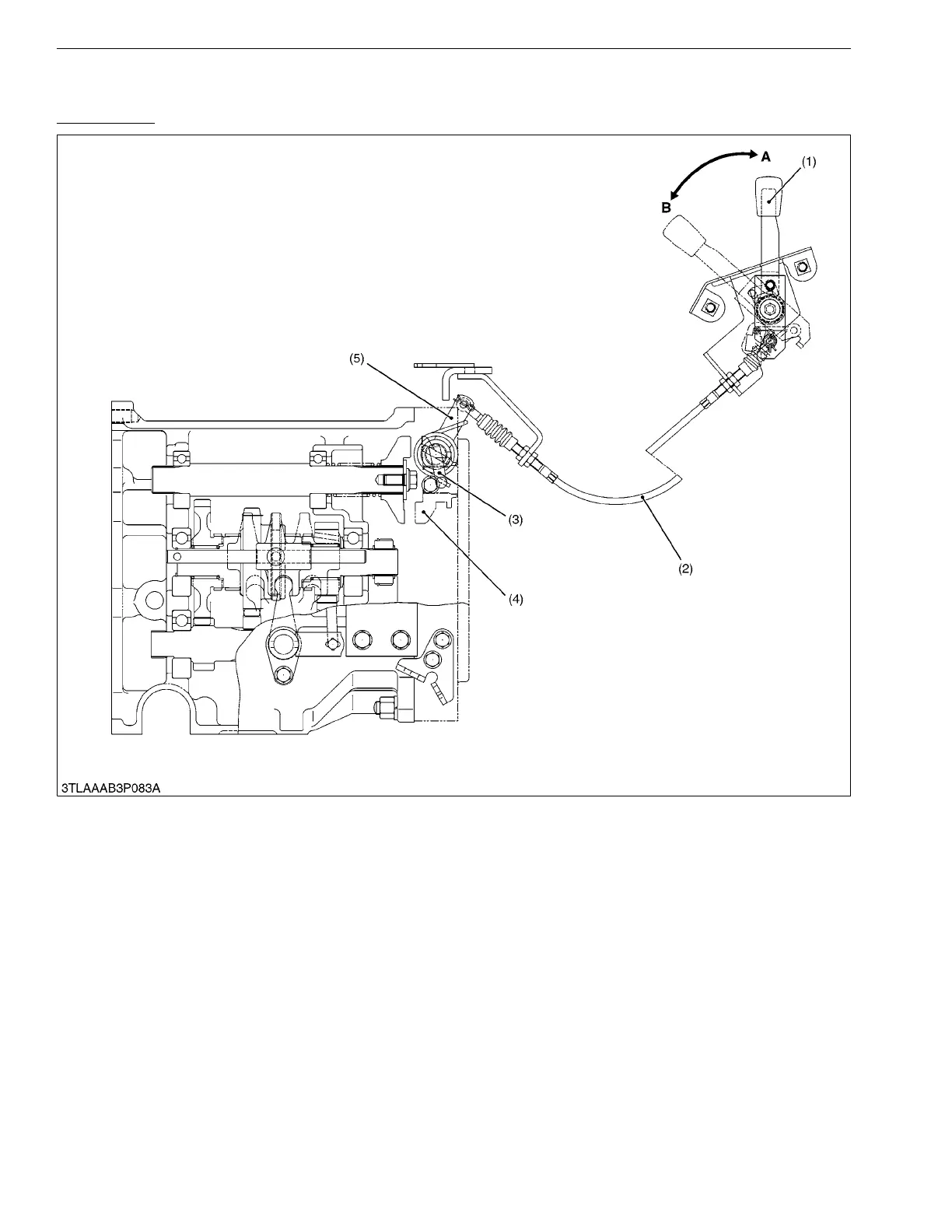

The PTO lever (1) through the shift fork (3) are connected by shift cable (2), as shown in the figure above.
When the shift lever (1) is moved to the "A" side or the "B" side, the shift fork (3) is moved by means of the shift
cable (2) and lever (5).
When the shift lever (1) is moved to the "A" side, the PTO is shifted to the "Disengaged" position.
When the shift lever (1) is moved to the "B" side, the PTO is shifted to the "Engaged" position.
9Y1211012TRM0039US0
(1) PTO Lever
(2) PTO Shift Cable
(3) PTO Shift Fork
(4) 16T PTO Clutch
(5) Lever A: Disengaged
B: Engaged
