wsm L3301 - Disassembling Front Axle

FRONT AXLE
L3301, L3901, L4701, WSM
6-S12

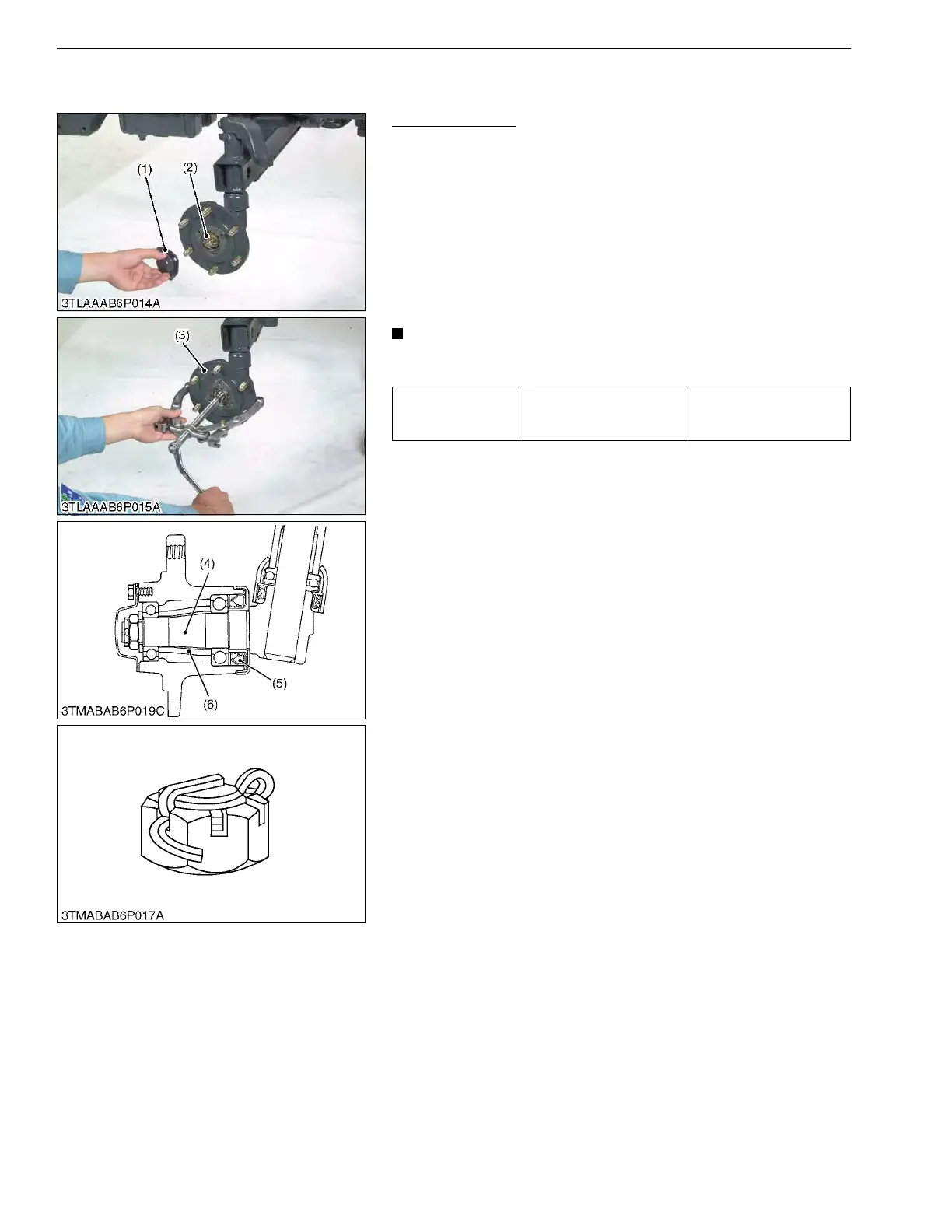

(2) Disassembling Front Axle
[A] 2WD Model
Front Wheel Hub
1. Remove the front wheel hub cap (1).
2. Draw out the cotter pin.
3. Remove the slotted nut (2).
4. Remove the collar.
5. Remove the front wheel hub (3) with a puller.
(When reassembling)
• Replace cotter pin with a new one.
• Fill grease in the clearance between knuckle arm shaft (4) and
spacer (6).
• Be sure to attach oil seal (5) pointing lip face outside.
IMPORTANT
• After tightening the slotted nut to the specified torque,
insert a cotter pin and bend it as shown in the figure.
9Y1211012FAS0013US0
Tightening torque Front wheel hub slotted nut
49 to 68 N·m
5.0 to 7.0 kgf·m
37 to 50 lbf·ft
(1) Front Wheel Hub Cap
(2) Slotted Nut
(3) Front Wheel Hub
(4) Knuckle Arm Shaft
(5) Oil Seal
(6) Spacer
KiSC issued 09, 2016 A
