ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S42
[14] ENGINE CONTROL SYSTEM
(1) Injector
IMPORTANT
• When replacing the engine ECU, be sure to do injector correction. (Refer to the "DIAGNOSIS MANUAL"
(9Y110-02420)
9Y1211012ELS0069US0
Injector Resistance
1. Measure the resistance with an ohmmeter across the terminals
shown in the table below.
2. If the reference value is not indicated, the injector wire harness
or injector is damaged.
9Y1211012ELS0070US0
Resistance Terminal 1 – 2 0.215 to 0.295 Ω

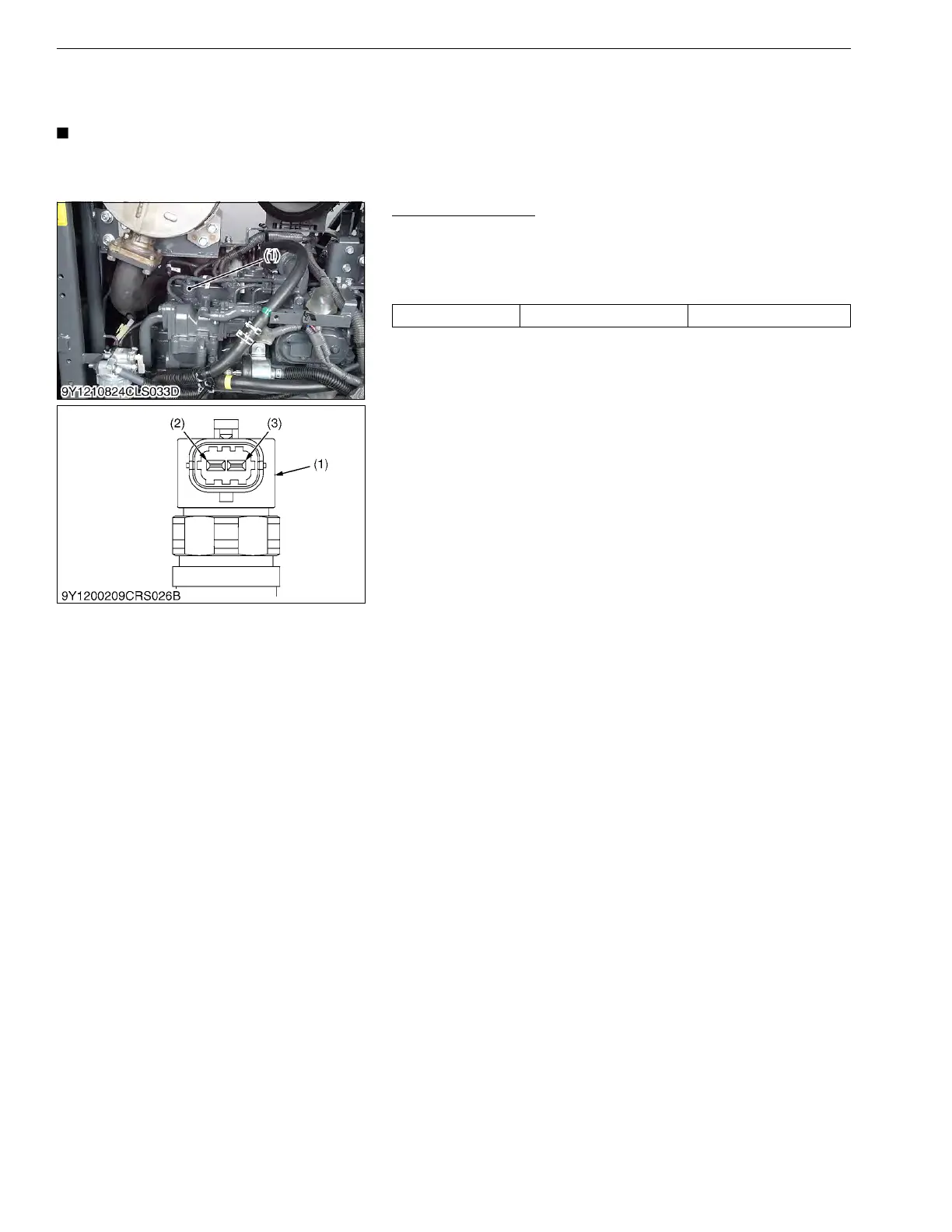

(1) Injector
(2) Terminal 1
(3) Terminal 2
KiSC issued 09, 2016 A
