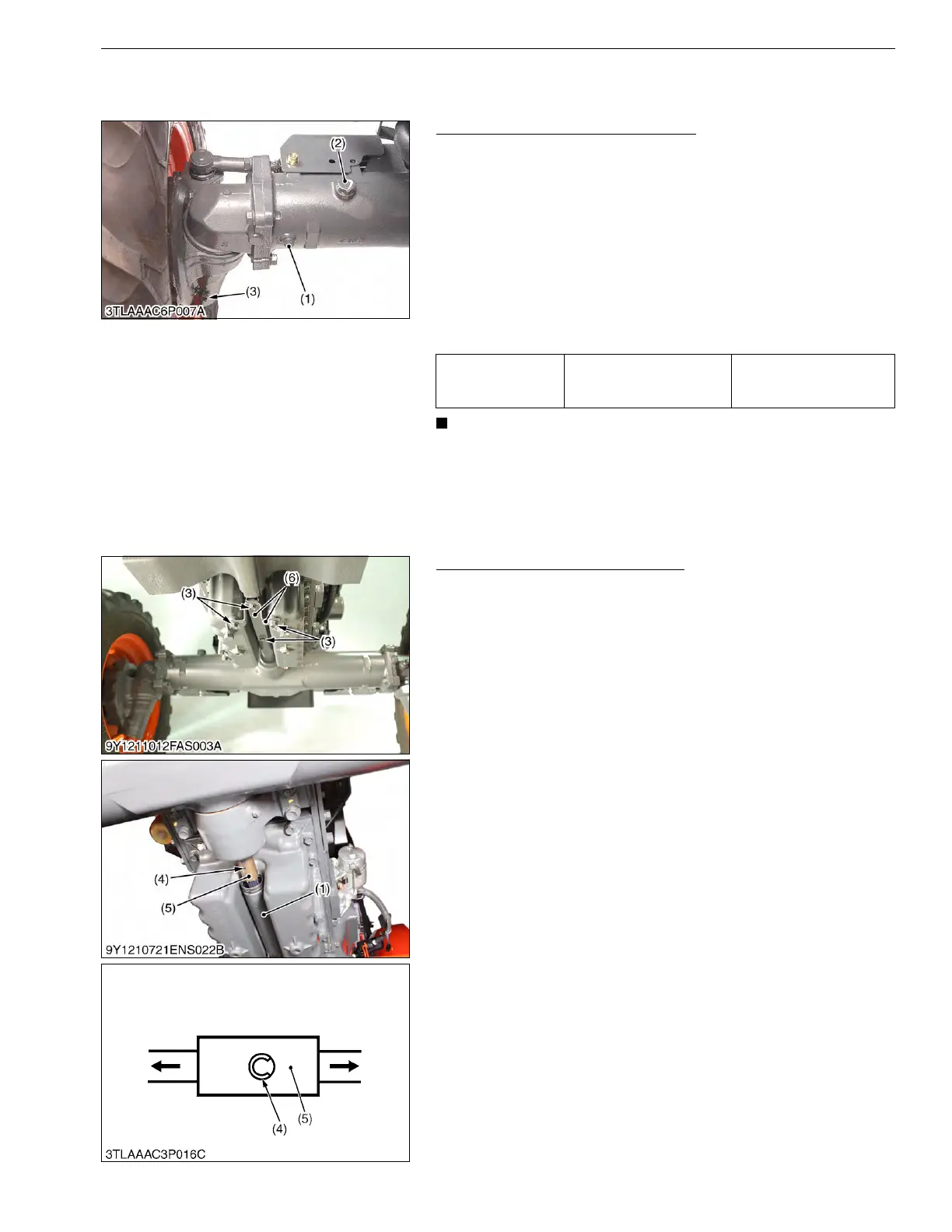

wsm L3301 - L4701; Separating Front Axle from Front Axle Frame

FRONT AXLE
L3301, L3901, L4701, WSM
6-S17
[2] L4701
(1) Separating Front Axle from Front Axle Frame
Draining Front Axle Case Oil [4WD]
1. Place the oil pans underneath the front axle case.
2. Remove the drain plug (3) both sides and filling port plug (2) to
drain the oil.
3. After draining, reinstall the drain plugs (3) and filling port plug
(2).
(When refilling)
• Remove the filling port plug (2) and right and left check plugs
(1).
• Fill with the new oil up to the check plug port.
• After filling, reinstall the filling port plug (2) and the check plug
(1).
IMPORTANT
• Use KUBOTA SUPER UDT-2 fluid or SAE 80, 90 gear oil.
Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-11.
9Y1211012FAS0021US0
Propeller Shaft (4WD Model Only)
1. Remove bolts (3) and remove holder (6).
2. Slide propeller shaft front cover (2) and propeller shaft rear
cover (1).
3. Tap out spring pins (4).
4. Slide coupling (5) and remove propeller shaft together with
propeller shaft cover.
(When reassembling)
• Apply grease to splines of propeller shaft.
• Tap in spring pin (4) as shown in figure.
9Y1211012FAS0022US0
Front axle case oil Capacity
6.5 L
6.9 U.S.qts
5.7 Imp.qts
(1) Check Plug
(2) Filling Port Plug
(3) Drain Plug
(1) Propeller Shaft Rear Cover
(2) Propeller Shaft Front Cover
(3) Bolt
(4) Spring Pin
(5) Coupling
(6) Holder
KiSC issued 09, 2016 A
