HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-M10

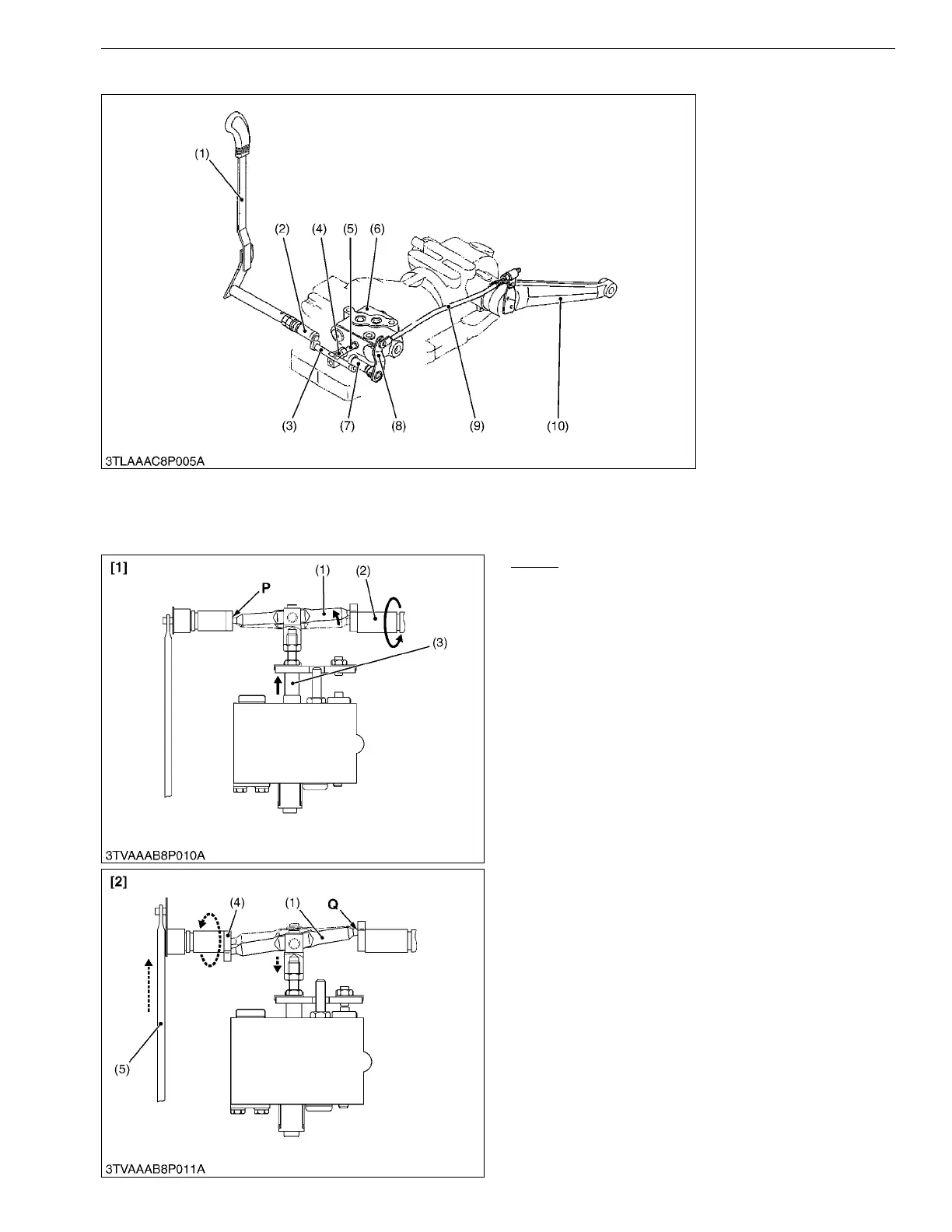

[3] LINKAGE MECHANISM
Position control is a mechanism to raise or lower the implement attached to the tractor in proportion to the
movement of the position control lever (1). The implement can be set at any height by moving the position control
lever.
9Y1211012HYM0007US0
Lifting
1. When the position control lever is moved to the LIFT
position, the control arm (2) rotates to the arrow.
Therefore, the spool drive lever (1) moves around
the fulcrum P and pull the spool (3) opening the LIFT
circuit.
2. When the lift arm moves upward, the feedback lever
shaft (4) is rotated to the arrow, since the feedback
rod (5) is actuated. Therefore, the spool drive lever
(1) moves around the fulcrum Q and pushes the
spool (3).
3. The lift arm stops when the spool returns to the
neutral position.
9Y1211012HYM0008US0
(1) Position Control Lever
(2) Control Arm
(3) Spool Drive Lever
(4) Spool Joint 1
(5) Spool Head
(6) Position Control Valve
(7) Feedback Lever Shaft
(8) Feedback Lever
(9) Feedback Rod
(10) Lift Arm
(1) Spool Drive Lever
(2) Control Arm
(3) Spool
(4) Feedback Lever Shaft
(5) Feedback Rod
[1] Lifting
[2] Lifting to Neutral
KiSC issued 09, 2016 A
