wsm L3301 - Safety Switch

ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S34

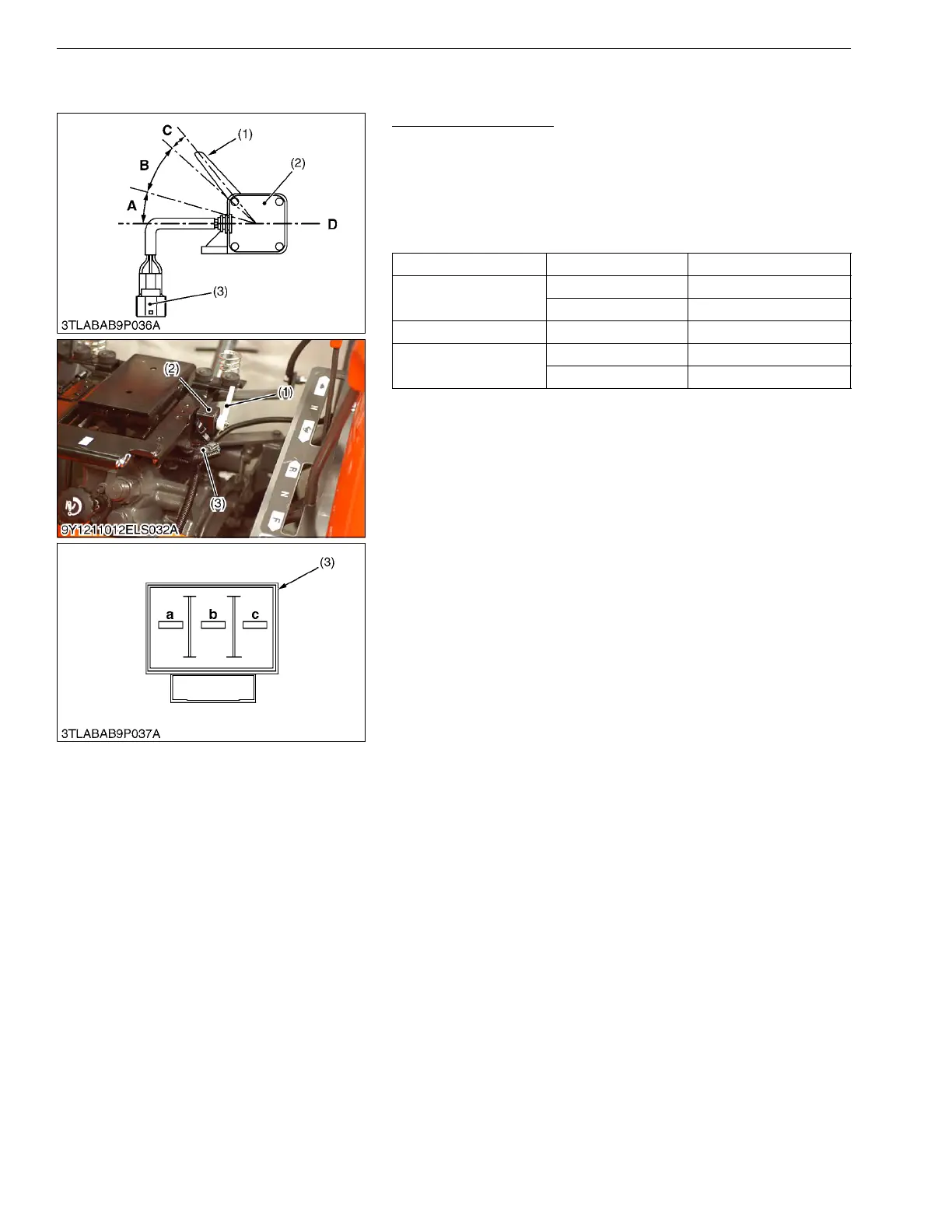

(3) Safety Switch
[A] Seat Switch
Checking Seat Switch
1. Remove the seat.
2. Disconnect the seat switch connector (3).
3. Change the sensor bar angle (1) and measure the resistance
between connector terminals, referring to the table below.
4. If the measurement does not between as table, switch is
damaged.
9Y1211012ELS0051US0
Sensor bar angle Measuring terminal Resistance
Approx. 18 ° (Angle A)
a – c 0 Ω
a – b, b – c Infinity
Approx. 25 ° (Angle B) a – b, a – c, b – c Infinity
Approx. 5 ° (Angle C)
b – c 0 Ω
a – b, a – c Infinity
(1) Sensor Bar
(2) Seat Switch
(3) Seat Switch Connector
D: Reference Line
(Seat Suspension Plate Line)
KiSC issued 09, 2016 A
