5. PREPARATION

[1] SEPARATING DPF MUFFLER FROM TRACTOR

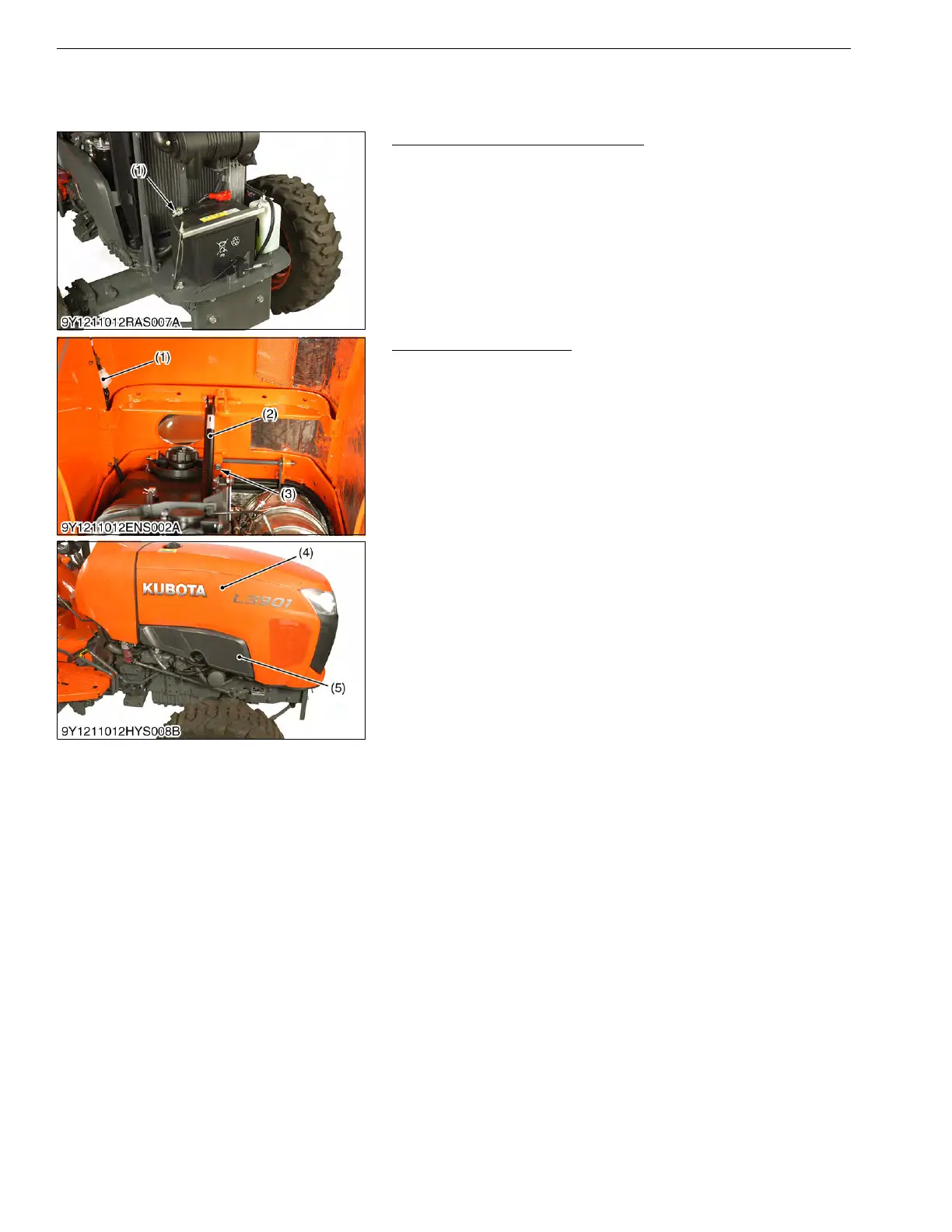

Battery Negative Cable Connector

1. Open bonnet.

2. Disconnect battery negative cable connector (1).

9Y1211012RAS0005US0

Bonnet and Side Covers

1. Disconnect the headlight connector (1).

2. Remove the damper (2) from the bonnet.

3. Disconnect the bolt (3) from the bonnet.

4. Remove the bonnet (4).

5. Remove the R.H. and L.H. side covers (5).

9Y1211012ENS0014US0

(1) Battery Negative Cable Connector

(1) Headlight Connector

(2) Damper

(3) Bolt

(4) Bonnet

(5) Side Cover
