ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S52

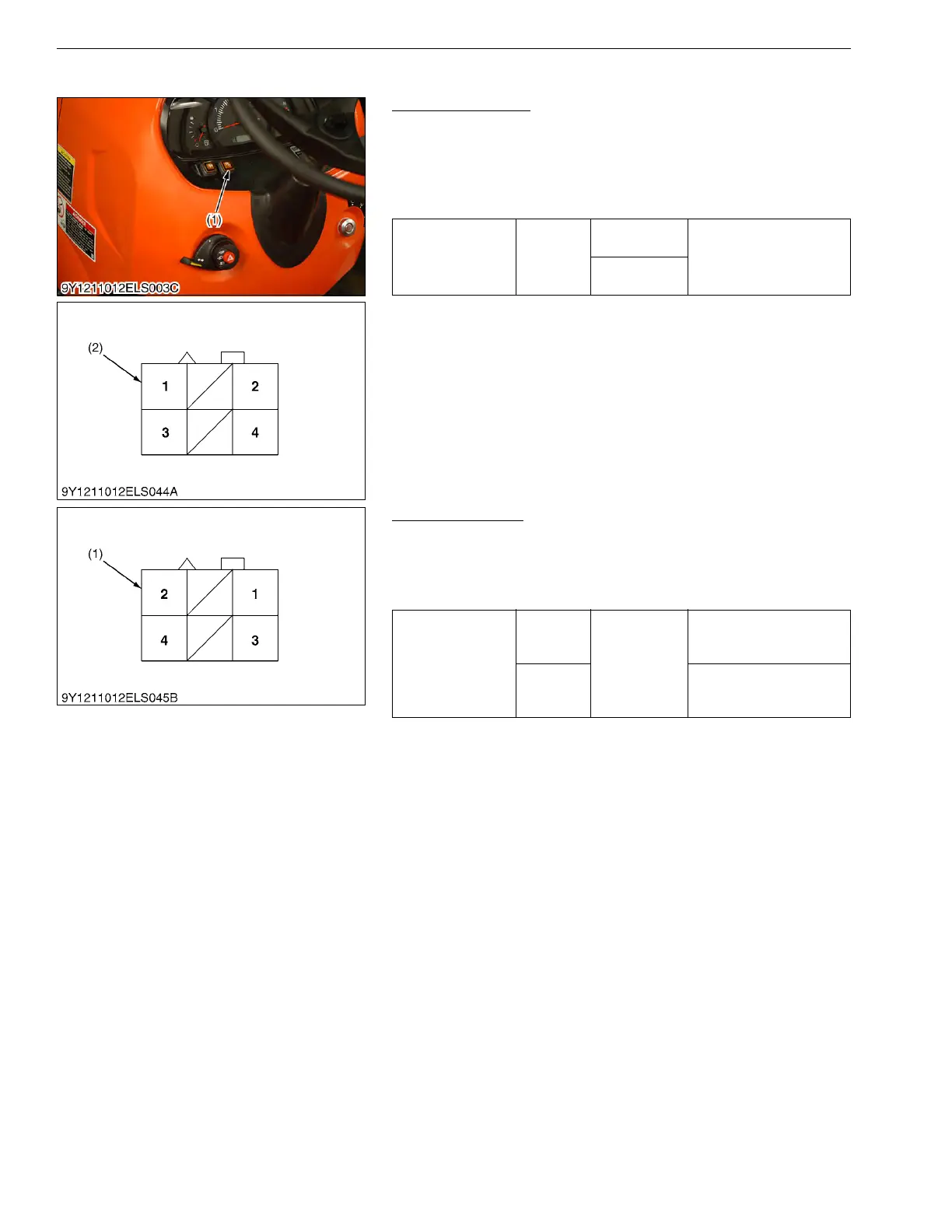

(12) Parked Regeneration Switch
Connector Voltage
1. Disconnect connector of parked regeneration switch (1).
2. Measure voltage with a voltmeter across the terminals shown in
the table below.
3. If measurement value is different from the table, check relating
electrical circuit.
9Y1211012ELS0096US0
Switch Continuity
1. Measure resistance with a ohmmeter across the terminals
shown in the table below.
2. If measurement value is different from the table, the parked
regeneration switch is damaged.
9Y1211012ELS0097US0
Resistance
Key
Switch at
"ON"
position
Terminal 3 –
Chassis
Approx. battery voltage
Terminal 4 –
Chassis
(1) Parked Regeneration Switch (2) Connector (Wiring Harness Side)
Resistance
When
switch is
released
Terminal 2 –
Terminal 4
Infinity
When
switch is
pushed
0 Ω
(1) Connector
(Parked Regeneration Switch Side)
KiSC issued 09, 2016 A
