STEERING
L3301, L3901, L4701, WSM
7-M1
1. STRUCTURE (L3301/L3901)
[1] LINKAGE

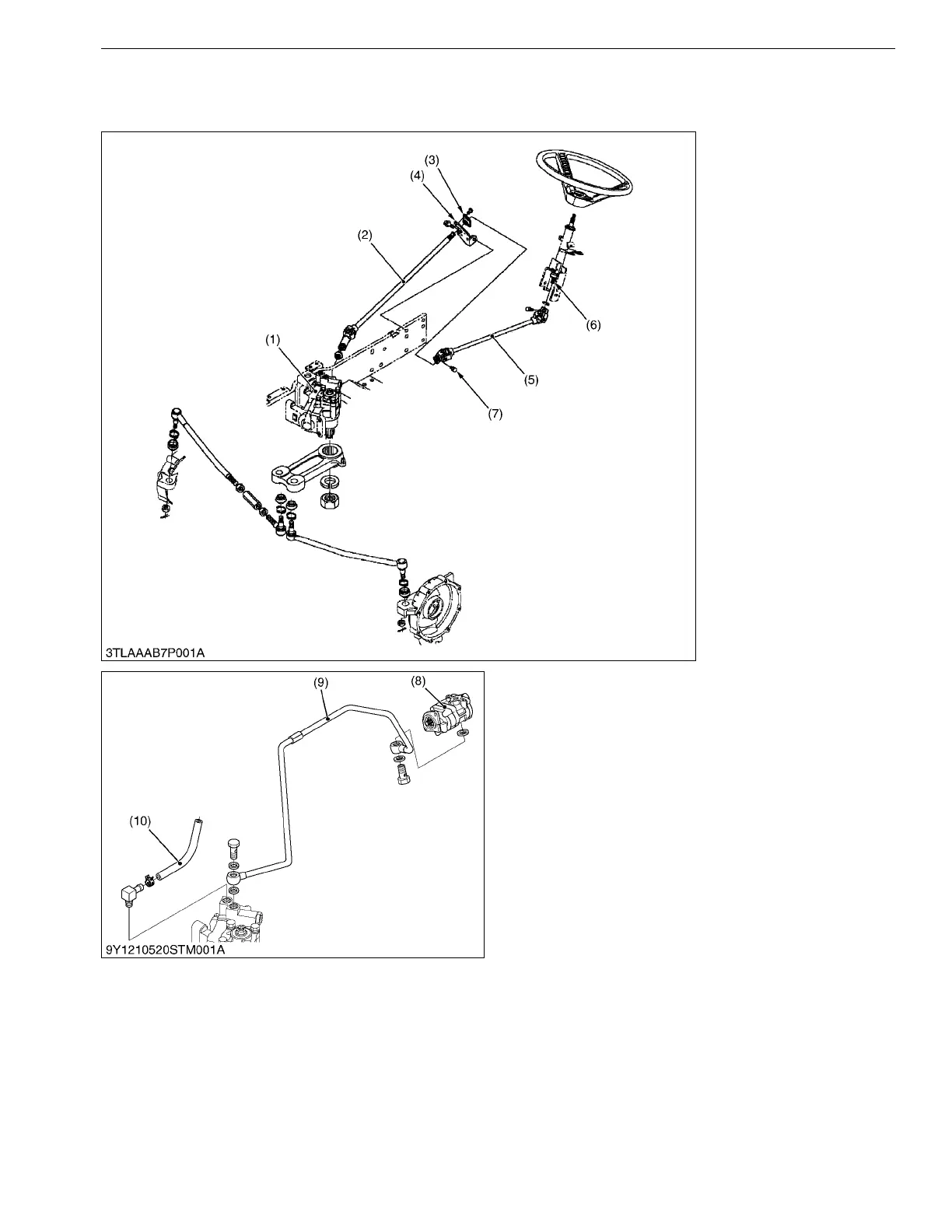

The integral type power steering is used on these
models. This steering system consists of steering wheel,
steering joint shafts, steering gear box and other
components shown in the figure.
9Y1211012STM0001US0
(1) Power Steering Controller
(Steering Gear Box)
(2) Joint Shaft 2
(3) Mini-Flange
(4) Support
(5) Joint Shaft
(6) Steering Shaft
(7) Bolt
(8) Hydraulic Pump
(9) Delivery Pipe
(10) Return Hose
(Manual Transmission
Model)
HST Delivery Pipe
(HST Model)
To Next Page
