ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-M14

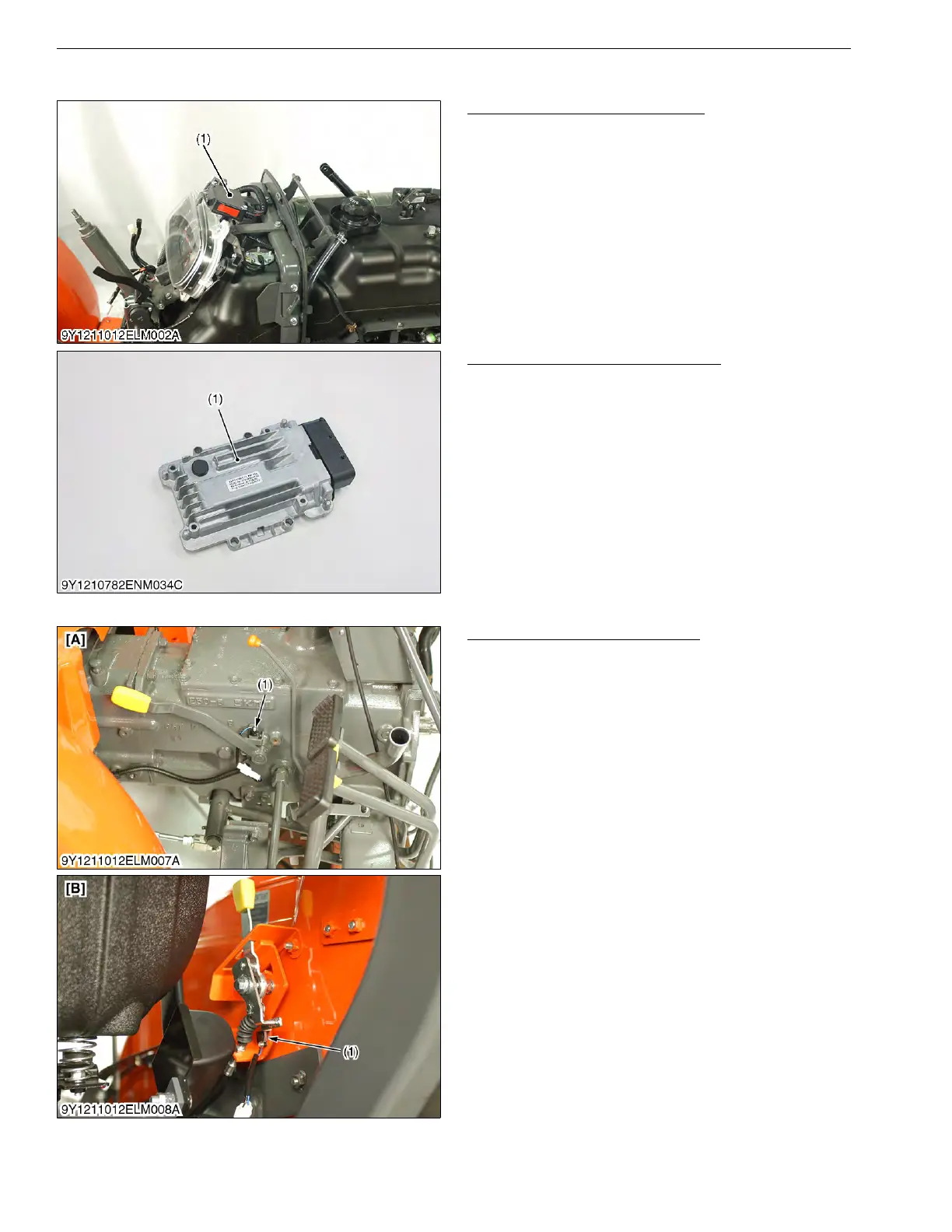

[2] RELATED PARTS
Main Electric Control Unit (ECU)
The ECU (1) functions to operate in accordance with
information coming from various sensors.
It has the role of controlling all the components while
sharing sensor information necessary for control and
control information with the electronic instrument panel.
9Y1211012ELM0006US0
Engine Electric Control Unit (ECU)
The ECU (1) function to operate in accordance with
information coming from various sensors.
It has the role of controlling all the components while
sharing sensor information necessary for control and
control information with the electronic instrument panel.
Engine ECU (1) receives signals from the sensors,
calculates the proper injection quantity and injection
timing for optimal engine operation, and sends the
appropriate signals to the actuators. ECU (1) enables
the injectors to be actuated at high speeds.
9Y1211012ELM0007US0
PTO Switch (L3301/L3901 Only)
PTO switch (1) is attached to detect the position of
PTO gear shift lever.
This switch also has a function as a safety switch. If
this switch is in OFF position, starter motor does not
rotate.
9Y1211012ELM0010US0
(1) Main Electric Control Unit
(ECU)
(1) Main Electric Control Unit
(ECU)
(1) PTO Switch [A] Manual Transmission
Model
[B] HST Model
KiSC issued 09, 2016 A
