wsm L3301 - Pto System; Structure

TRANSMISSION
L3301, L3901, L4701, WSM
3-M10
[2] PTO SYSTEM
(1) Structure
L3301

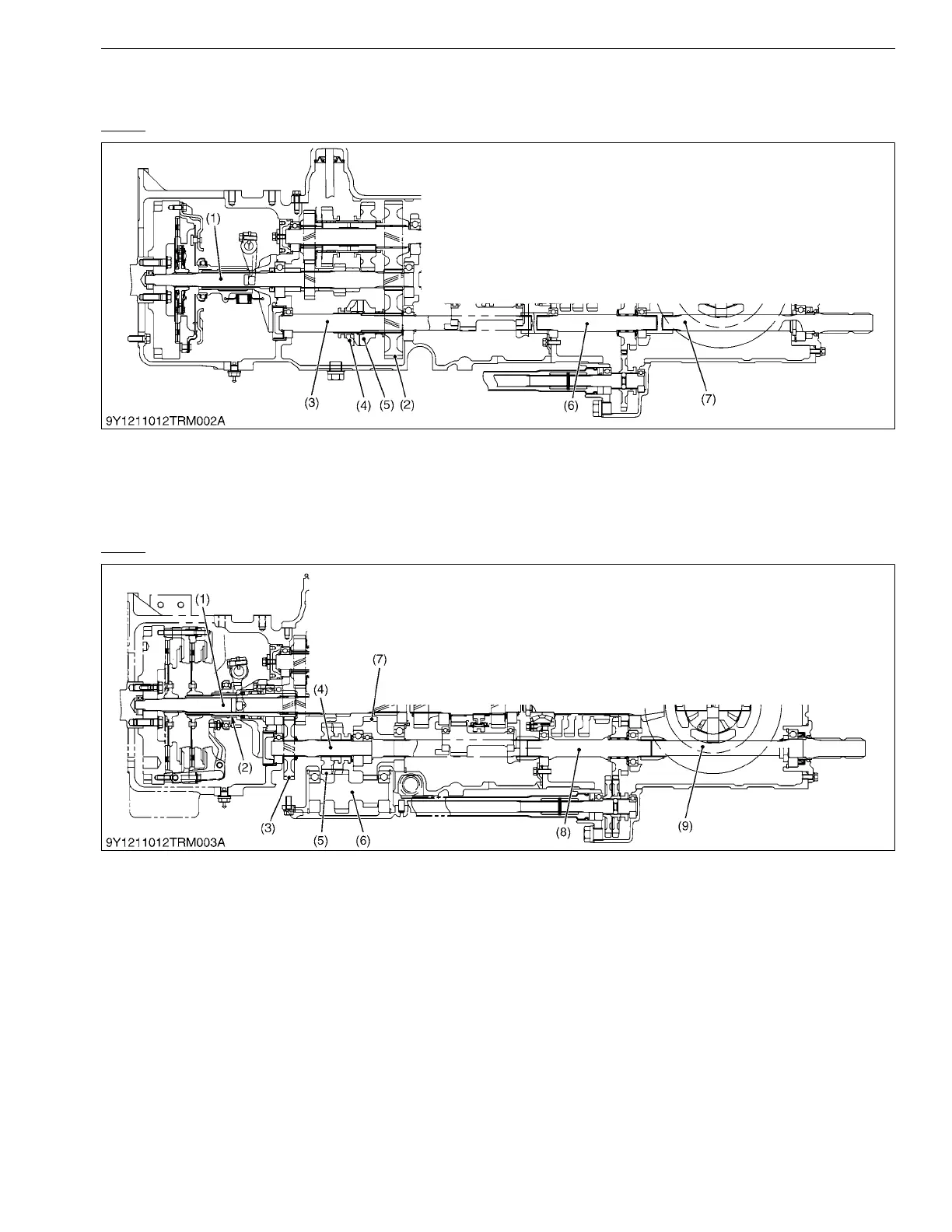

PTO is "ENGAGED" or "DISENGAGED" by operating the shift lever of the PTO shifter.
The power train from the main gear shaft to PTO shaft is composed as shown in figure above.
9Y1211012TRM0009US0
L3901
PTO is "ENGAGED" or "DISENGAGED" by operating the shift lever of the PTO 23T shift gear (5).
The power train from the 16T input gear shaft to PTO shaft is composed as shown in figure above.
9Y1211012TRM0010US0
(1) Main Gear Shaft
(2) 45T Gear
(3) PTO Counter Shaft
(4) PTO Clutch Shifter
(5) PTO Clutch
(6) PTO Drive Shaft
(7) PTO Shaft
(1) Input Gear Shaft 1
(2) Input Gear shaft 2
(3) 39T Gear
(4) PTO Counter Shaft
(5) 23T Shift Gear
(6) 19T-13T Gear Shaft
(7) 29T Gear
(8) PTO Drive Shaft
(9) PTO Shaft
