ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S54

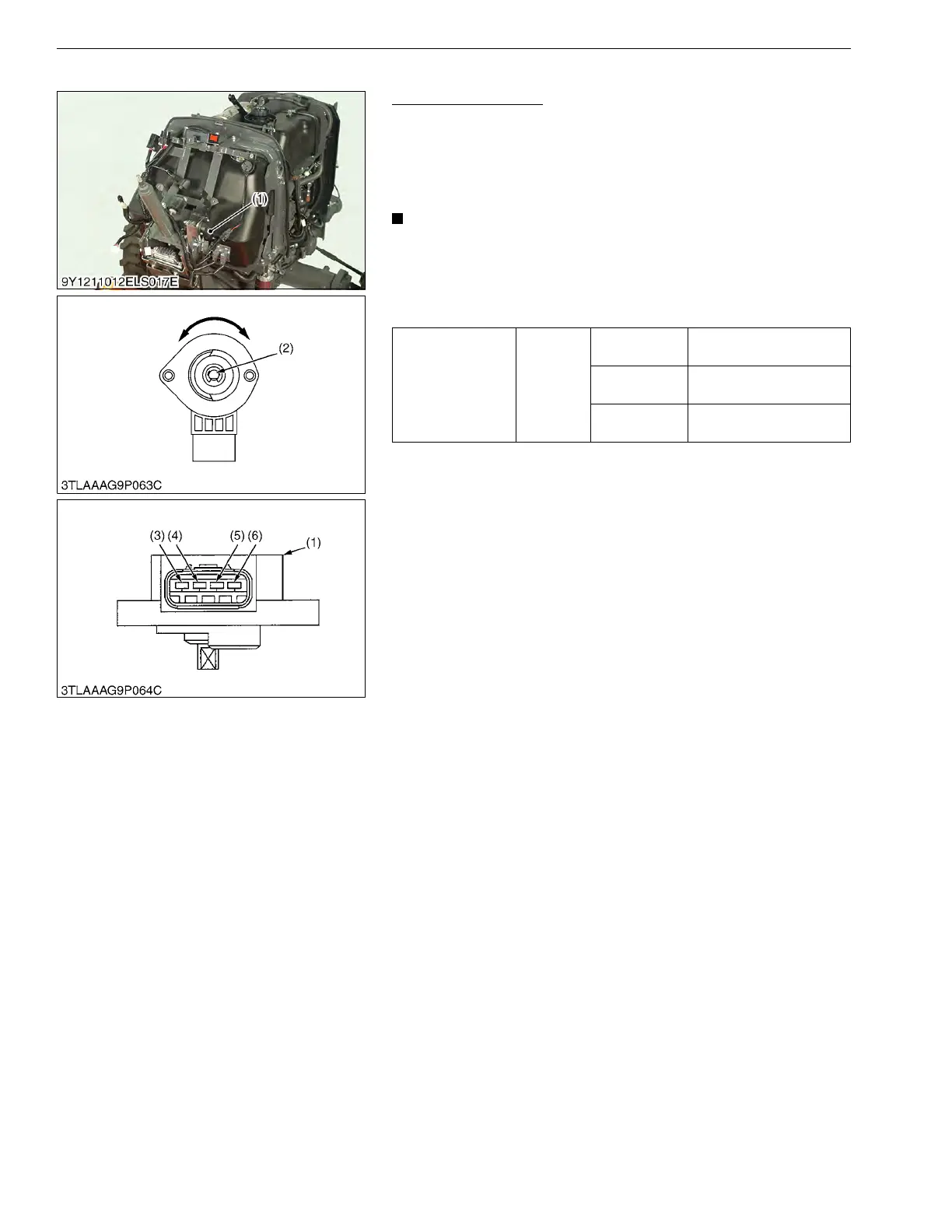

(14) Acceleration Sensor
Acceleration Sensor
1. Disconnect connector of acceleration sensor (1).
2. Measure resistance with a ohmmeter across the terminals
following table below.
3. If measurement value is different from the table, the
acceleration sensor is damaged.
NOTE
• If replacing the acceleration sensor, be sure to perform
mode "c" adjustment.
(Reference)
• Change of resistance is easily found by using an analog
ohmmeter.
9Y1211012ELS0100US0
Resistance
Reference
Value
Terminal c –
Terminal GND
Approx. 1 kΩ
Terminal a –
Terminal GND
smoothly changing
approx. 1 kΩ to 0 Ω
Terminal b –
Terminal GND
smoothly changing
approx. 0 Ω to 1 kΩ
(1) Acceleration Sensor
(2) Sensor Shaft
(3) Terminal a
(4) Terminal b
(5) Terminal c
(6) Terminal GND
KiSC issued 09, 2016 A
