wsm L3301 - Power Train for Traveling Gears; Range Gear Shift Section

TRANSMISSION
L3301, L3901, L4701, WSM
3-M28
[2] POWER TRAIN FOR TRAVELING GEARS
(1) Range Gear Shift Section
L3301/L3901

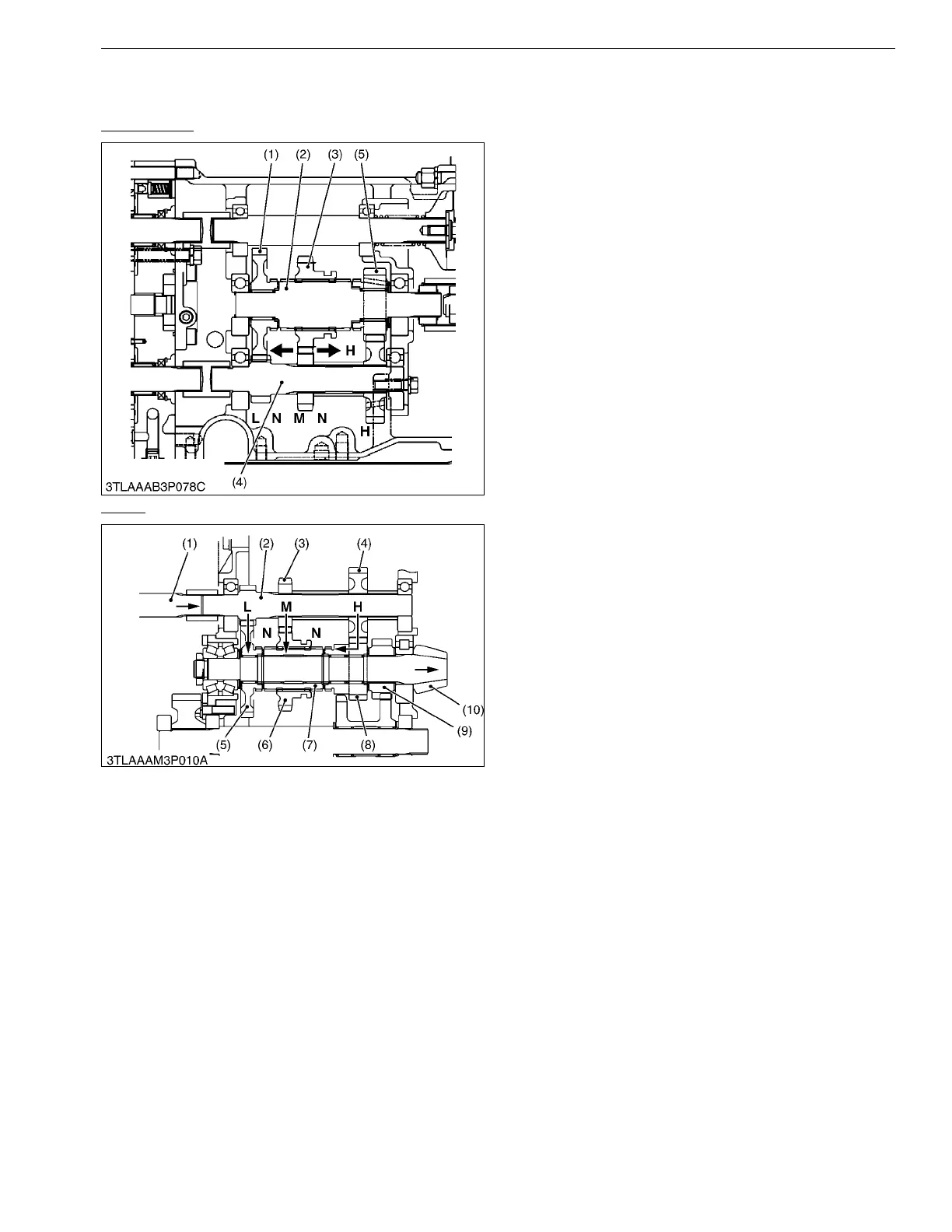

The range gear shift section is located in the mid
case.
It changes the speed to five position (L, N, M, N and
H) by shifting of shift gear (3) in the straight line on shaft
(2).
9Y1211012TRM0029US0
L4701
The Hi-Mid-Lo range gar shift section is located in
the differential gear case.
It changes the speed to five positions (L, N, M, N and
H) by shifting of shifter gear (6) in the straight line on 6T
spiral bevel pinion shaft (10).
9Y1211012TRM0030US0
(1) 37T Gear
(2) Shaft
(3) 31T Gear
(4) 13T-13T-28T Gear Shaft
(5) 22T Gear
L: Low Speed Position
N: Neutral Position
M: Middle Speed Position
H: High Speed Position
(1) 18T Gear Shaft
(2) 11T Sub Shaft
(3) 19T Sub Gear
(4) 28T Sub Gear
(5) 37T Gear (Low Speed)
(6) 31T Gear
(Middle Speed, Shifter Gear)
(7) Spline Boss
(8) 22T Gear (High Speed)
(9) 18T Gear (DT)
(10) 6T Spiral Bevel Pinion Shaft
L: Low Speed Position
N: Neutral Position
M: Middle Speed Position
H: High Speed Position
KiSC issued 09, 2016 A
