wsm L3301 - Range Gear Shift Section

TRANSMISSION
L3301, L3901, L4701, WSM
3-M8

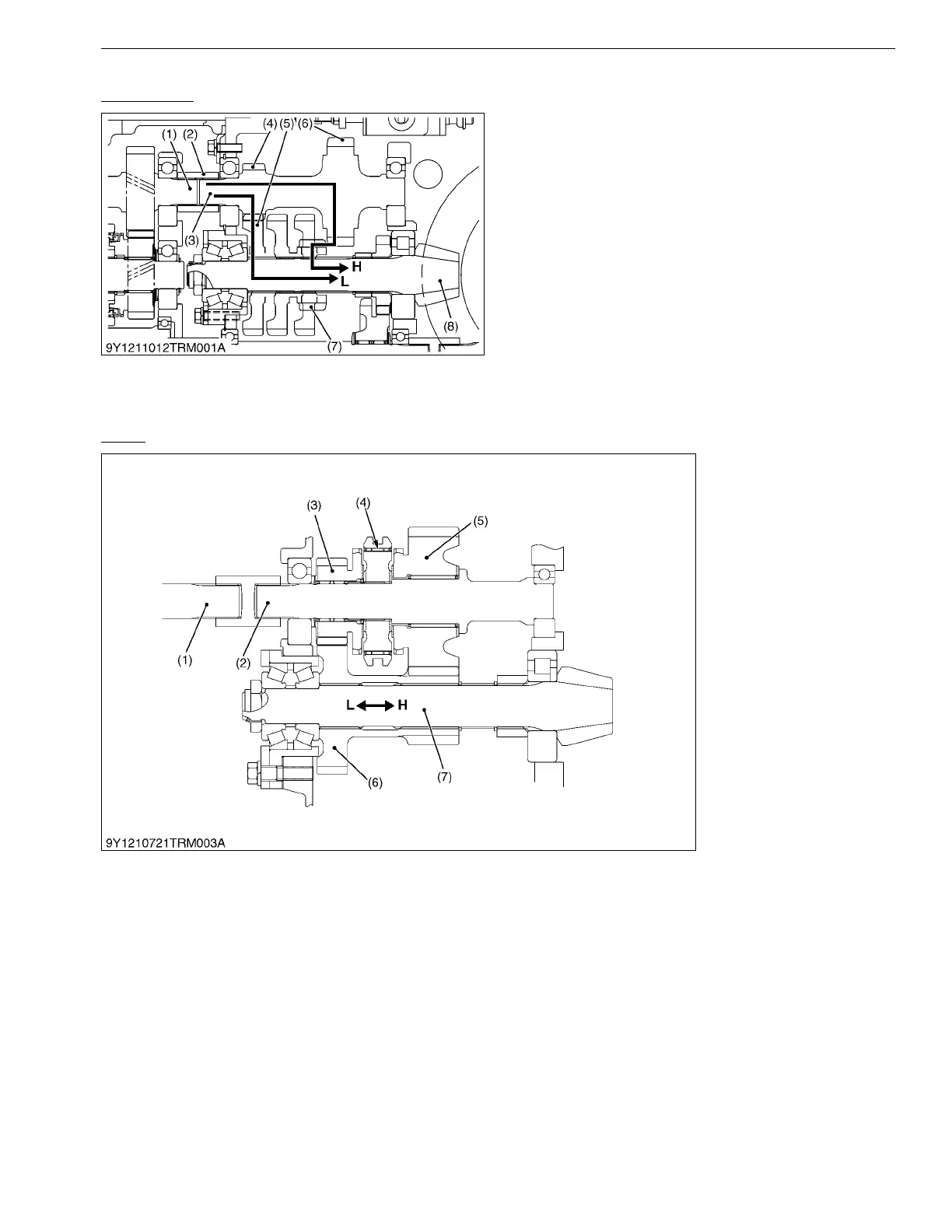

(3) Range Gear Shift Section
L3301/L3901
Two ways of power train from the shuttle gear shaft
(1) to the spiral bevel pinion shaft (8) are available by
operating the range gear shift lever.
Power is transmitted as follows.
L: Lo-Range
Shuttle Gear Shaft (1) → Coupling (2) → Range
Gear Shaft (3) → 18T Gear (4) → 42T Gear (5) → Spiral
Bevel Pinion Shaft (8).
H: Hi-Range
Shuttle Gear Shaft (1) → Coupling (2) → Range
Gear Shaft (3) → 31T Gear (6) → 19T Gear (7) → Spiral
Bevel Pinion Shaft (8).
9Y1211012TRM0005US0
L4701
The Hi-Lo range gear shift section is located in the differential gear case.
It uses constant mesh gears.
9Y1211012TRM0006US0
(1) Shuttle Gear Shaft
(2) Coupling
(3) Range Gear Shaft
(4) 18T Gear
(5) 42T Gear
(6) 31T Gear
(7) 19T Gear
(8) Spiral Bevel Pinion Shaft
(1) Shuttle Gear Shaft
(2) Range Gear Shaft
(3) Gear for Low Speed
(4) Shifter
(5) Gear for High Speed
(6) Counter Gear
(7) Spiral Bevel Pinion Gear
L: Low Speed
H: High Speed
KiSC issued 09, 2016 A
