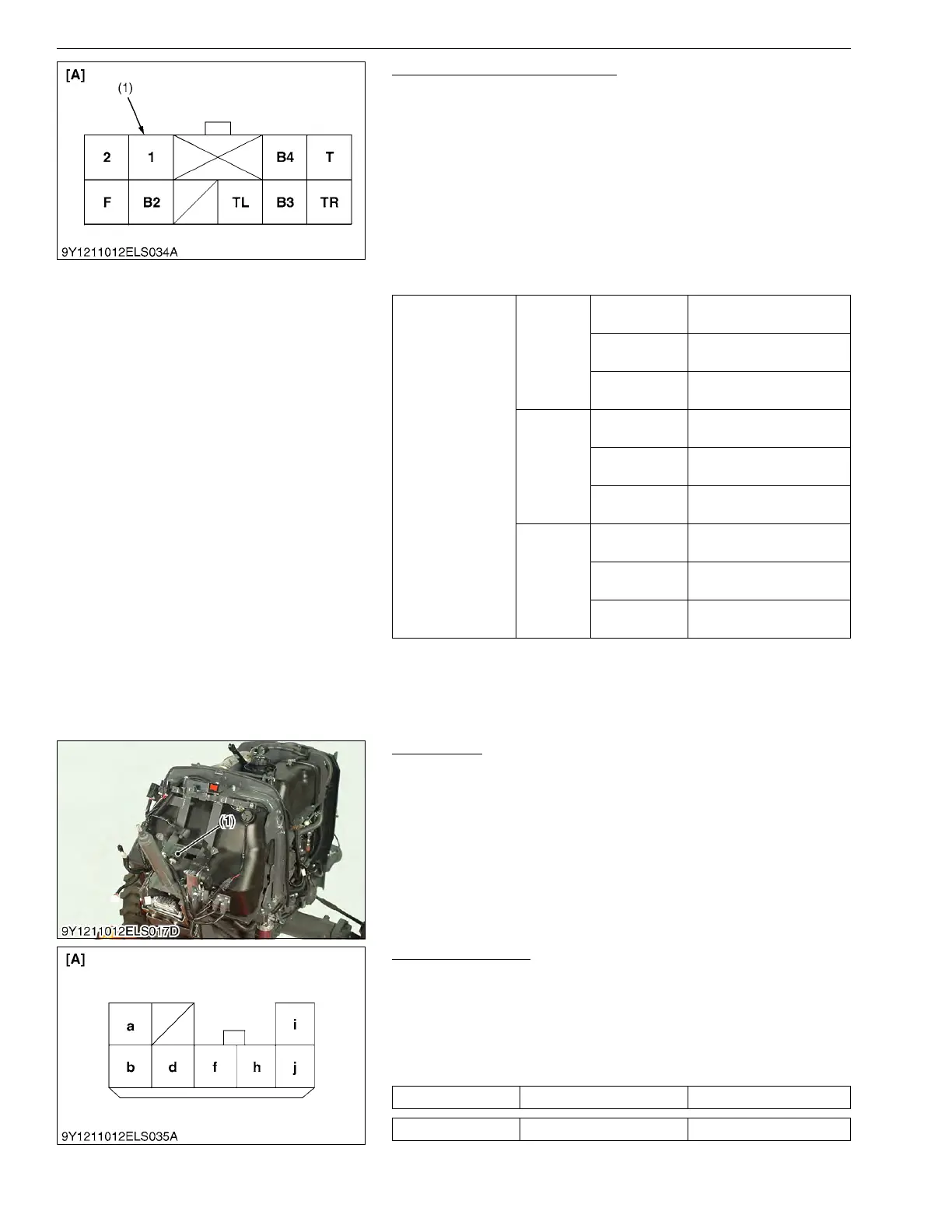

Checking Head Light Function
1. Measure the resistance with an ohmmeter across B4 terminal
and T terminal, B4 terminal and 1 terminal, B4 terminal and 2
terminal when head light switch is at "OFF" position.
2. Measure the resistance with an ohmmeter across B4 terminal
and T terminal, B4 terminal and 1 terminal, B4 terminal and 2
terminal when head light switch is at "ON (LOW)" position.
3. Measure the resistance with an ohmmeter across B4 terminal
and T terminal, B4 terminal and 1 terminal, B4 terminal and 2
terminal when head light switch is at "ON (HIGH)" position.
4. If measured value is different from table below, the combination
light switch is damaged.
9Y1211012ELS0059US0
(2) Flasher Unit
Flasher Unit
1. Remove steering wheel and rear bonnet.
2. Disconnect connector of flusher unit (1).
3. Perform following checking.
9Y1211012ELS0060US0
Connector Voltage
1. Measure the voltage with a voltmeter across the connector h
terminal and chassis.
2. Measure the resistance with a ohmmeter across the connector
a terminal and chassis.
3. If the measurement value is different from table below, battery,
slow blow fuse, fuse or wiring harness is damaged.
9Y1211012ELS0061US0
Resistance
Head light
switch at
"OFF"
position
B4 terminal –
T terminal
Infinity
B4 terminal –
1 terminal
Infinity
B4 terminal –
2 terminal
Infinity
Head light
switch at
"ON
(LOW)"
position
B4 terminal –
T terminal
0 Ω
B4 terminal –
1 terminal
0 Ω
B4 terminal –
2 terminal
Infinity
Head light
switch at
"ON
(HIGH)"
position
B4 terminal –
T terminal
0 Ω
B4 terminal –
1 terminal
Infinity
B4 terminal –
2 terminal
0 Ω
(1) 10P Connector
(Combination Light Switch)
[A] Connector (Switch Side)
(1) Flusher Unit
Voltage h terminal – Chassis Approx. battery voltage
Resistance a terminal – Chassis 0 Ω
(1) 8P Connector (Flasher Unit) [A] Connector (Wiring Harness Side)
