Checking Turn Signal Function
1. Measure the resistance with an ohmmeter across B3 terminal
and TR terminal, B3 terminal and TL terminal when turn signal
light switch is at "OFF" position.
2. Measure the resistance with an ohmmeter across B3 terminal
and TR terminal, B3 terminal and TL terminal when turn signal
light switch is at "RIGHT" position.
3. Measure the resistance with an ohmmeter across B3 terminal
and TR terminal, B3 terminal and TL terminal when turn signal
light switch is at "LEFT" position.
4. If measured value is different from table below, the combination
light switch is damaged.
9Y1211012ELS0058US0
Resistance
Turn
signal light
switch at
"OFF"
position
B3 terminal –
TR terminal
Infinity
B3 terminal –
TL terminal
Infinity
Turn
signal light
switch at
"RIGHT"
position
B3 terminal –
TR terminal
0 Ω
B3 terminal –
TL terminal
Infinity
Turn
signal light
switch at
"LEFT"
position
B3 terminal –
TR terminal
Infinity
B3 terminal –
TL terminal
0 Ω

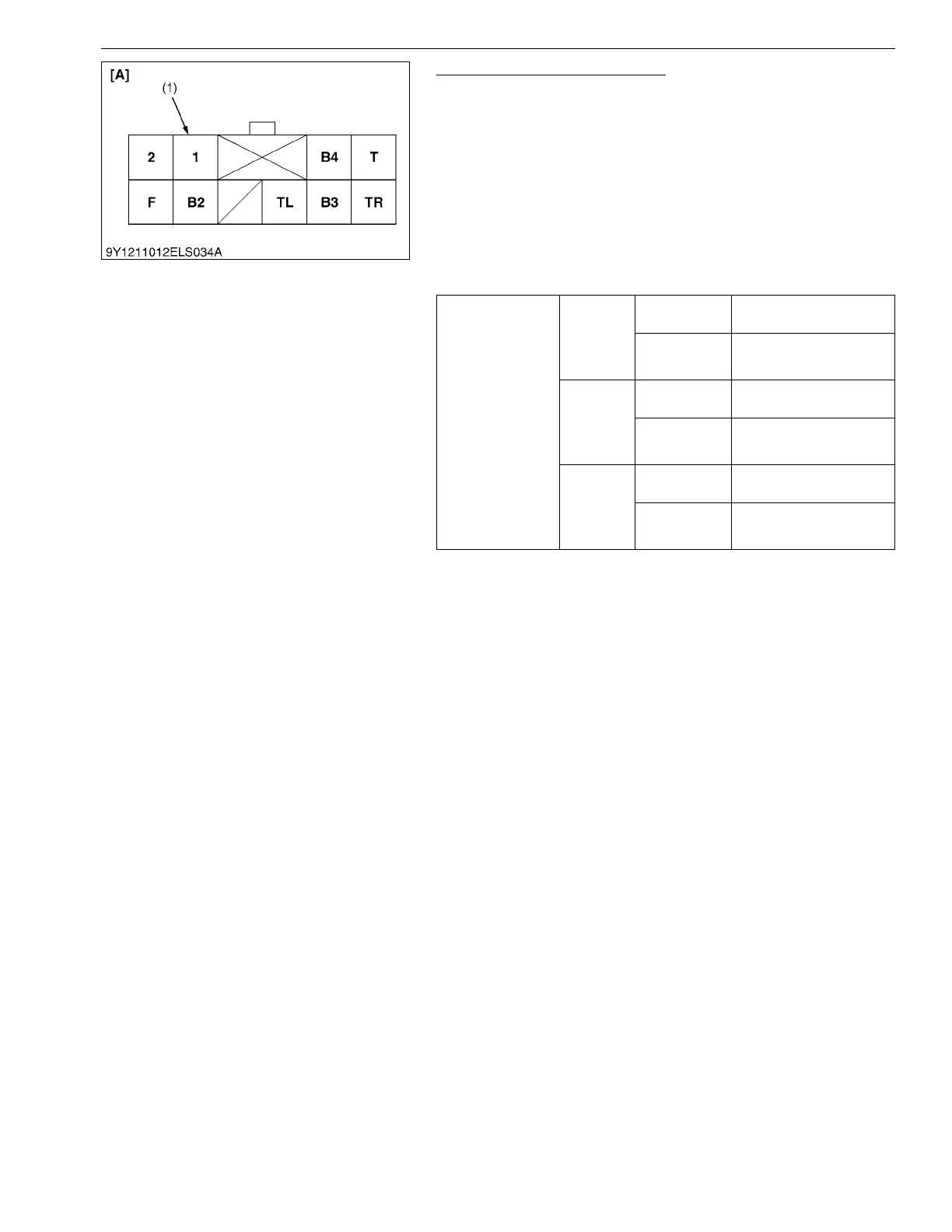

(1) 10P Connector
(Combination Light Switch)
[A] Connector (Switch Side)
