wsm L3301 - Flywheel and Crankshaft

ENGINE
L3301, L3901, L4701, WSM
1-S56
[10] FLYWHEEL AND CRANKSHAFT
Flywheel

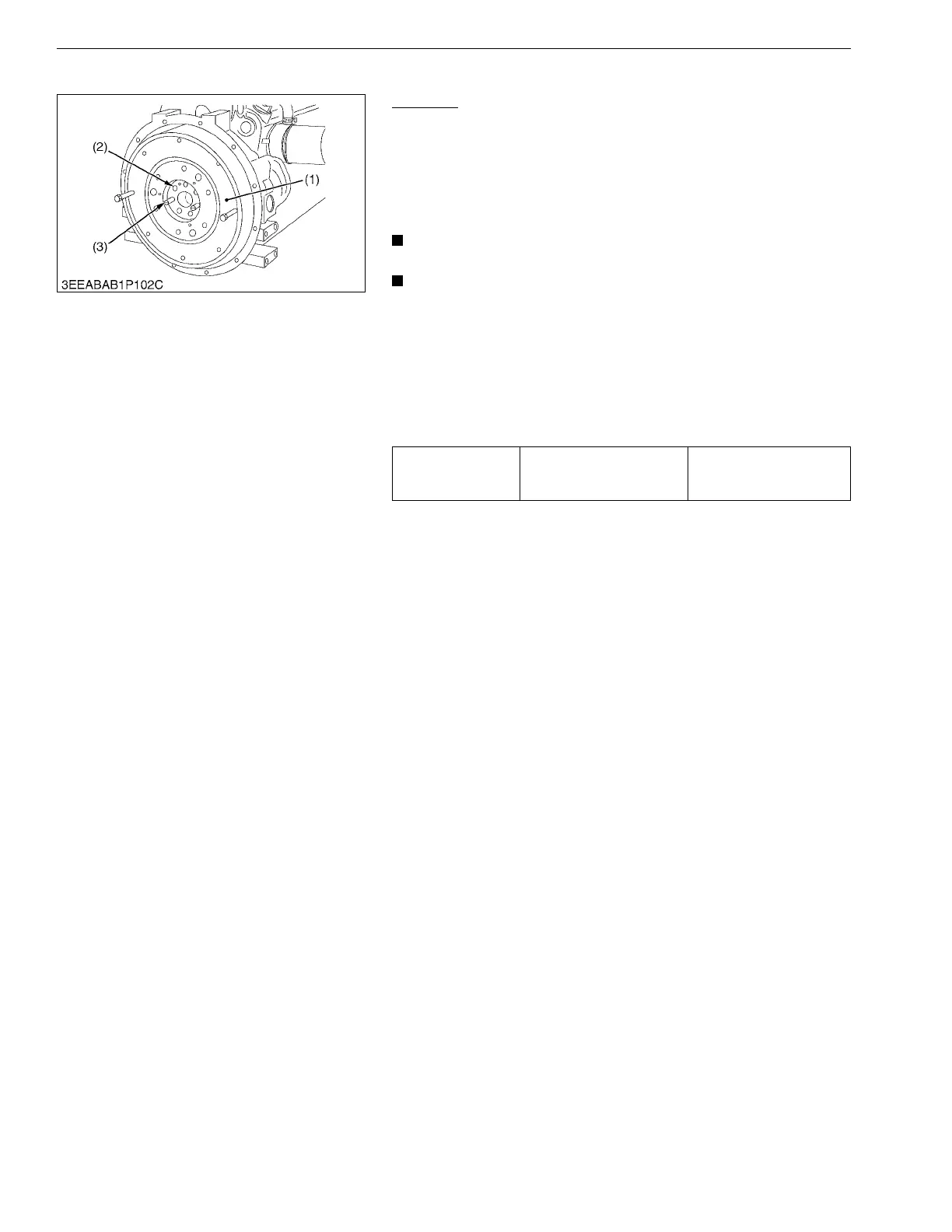

1. Attach the stopper to the flywheel (1).
2. Remove 2 flywheel screws (2).
3. Put the 2 flywheel guide screws (3) in the holes.
4. Remove all the flywheel screws (2).
5. Remove the flywheel (1) slowly along the flywheel guide screws
(3).
NOTE
• Do not use an impact wrench. Serious damage will occur.
IMPORTANT
• The flywheel is very heavy, so securely hold the flywheel
when removing.
(When reassembling)
• Put in 2 flywheel guide screws (3).
• Check that there are no metal particles that remain on the
flywheel mounting surfaces.
• Apply engine oil to the threads and the flange seat face of the
flywheel screw. Then attach the screw.
9Y1211012ENS0062US0
Tightening torque Flywheel screw
98.1 to 107 N·m
10.0 to 11.0 kgf·m
72.4 to 79.5 lbf·ft
(1) Flywheel
(2) Flywheel Screw
(3) Flywheel Guide Screw
KiSC issued 09, 2016 A
