3. LUBRICATING SYSTEM
[1] OIL COOLER
The engine is equipped with a water-cooled oil
cooler to keep the temperature of the oil from rising while
the engine is operating and provide it with proper
lubrication.
The oil flows on the inside of the cooler plate and is
cooled by the coolant flowing on the outside of the plate.

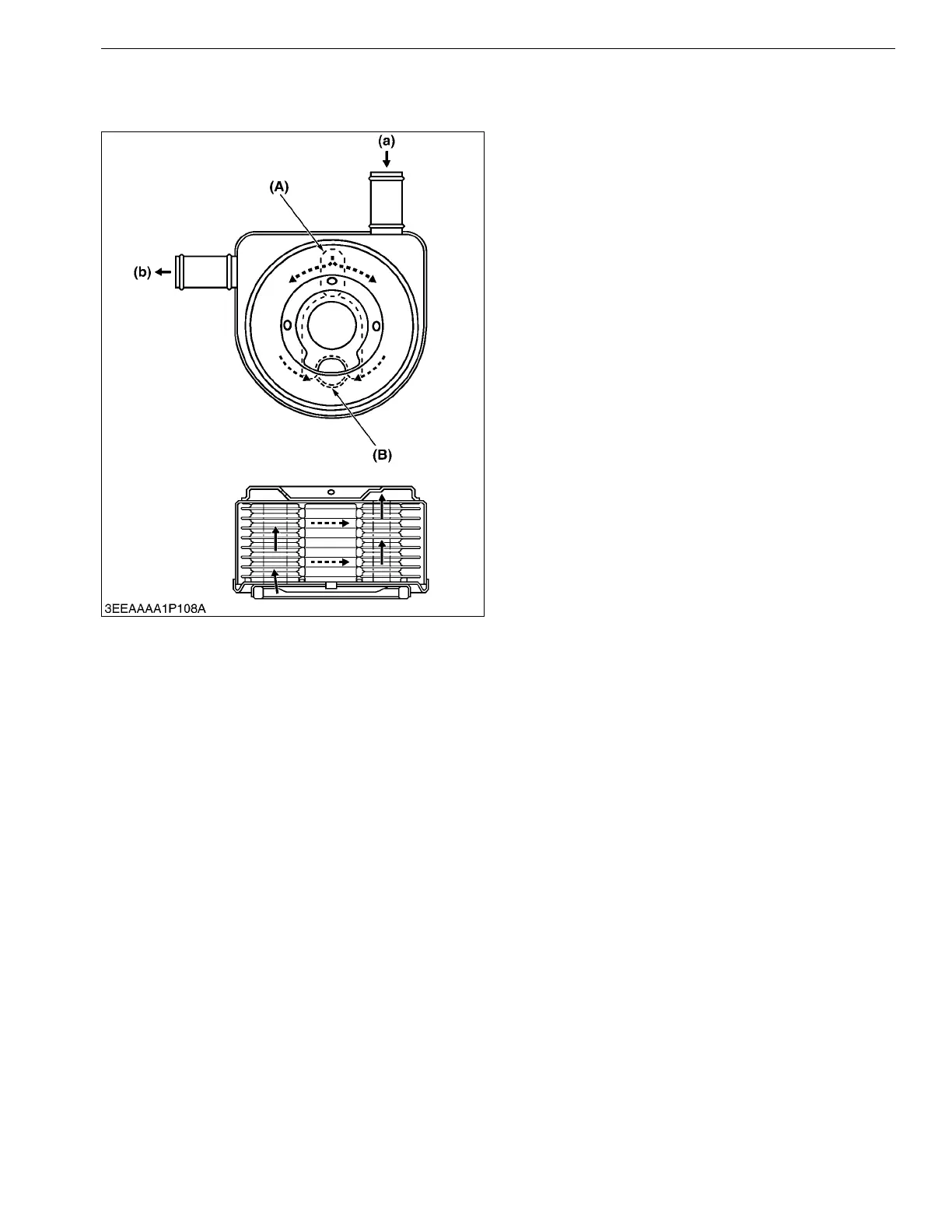

9Y1211012ENM0004US0
(A) Oil Inlet
(B) Oil Outlet
(a) Coolant Inlet
(b) Coolant Outlet
