wsm L3301 - Common Rail

ENGINE
L3301, L3901, L4701, WSM
1-S40

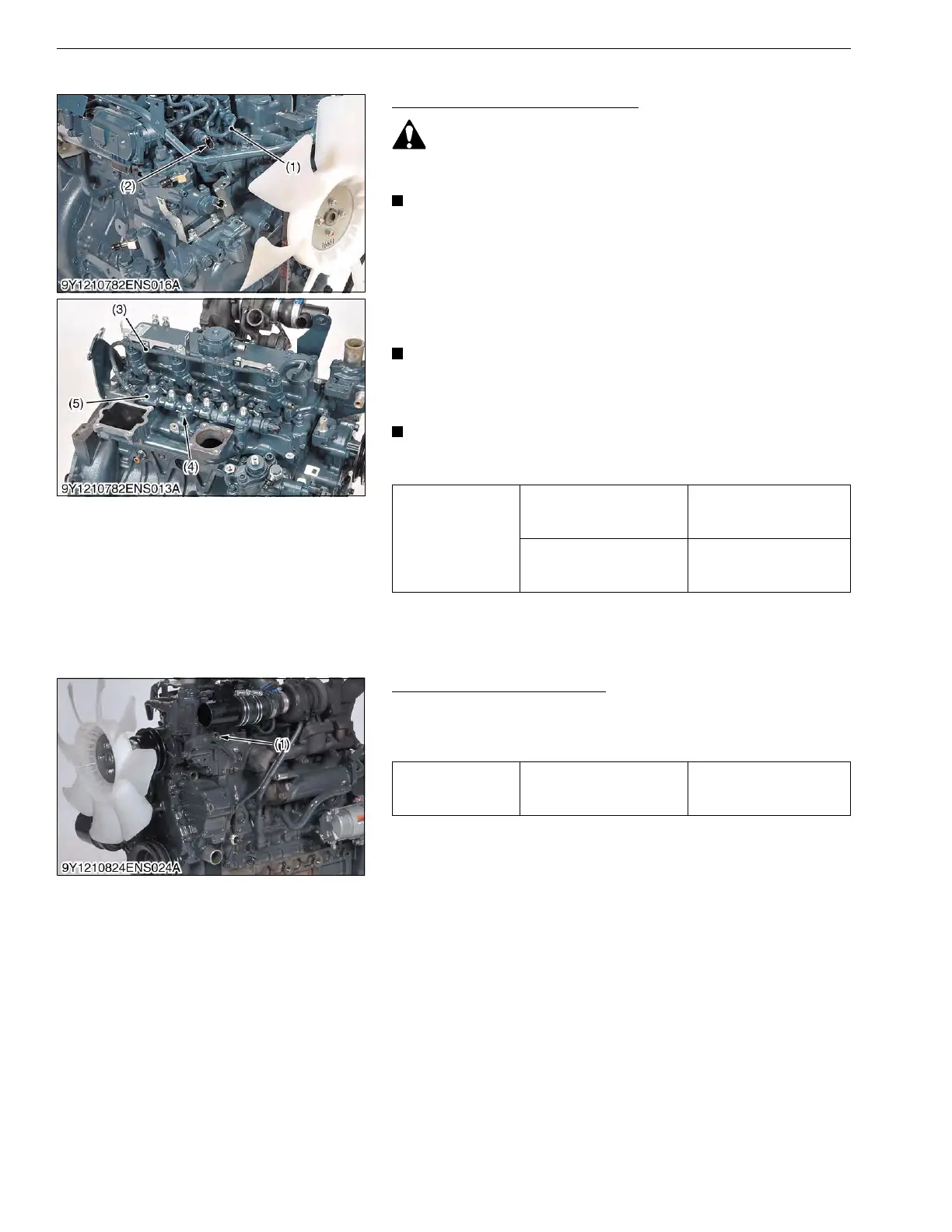

[3] COMMON RAIL
Common Rail and Injection Pipes
CAUTION
• Do not loosen the injection pipe when the fuel is under high
pressure (within 5 minutes of stopping the engine).
NOTE
• Do not remove the pressure limiter (5) and rail pressure
sensor (2) from the common rail (4).
• When removing the common rail (4), do not hold it by the
pressure limiter (5) and rail pressure sensor (2).
1. Remove the injection pipe (1).
2. Remove the overflow pipe (3).
3. Remove the common rail (4).
IMPORTANT
• Store the injection pipes (1) so it does not get any dust in it.
• Store the common rail (4) so it does not get any dust in it.
(When reassembling)
NOTE
• Tighten the injection pipes securely to their specified
torques.
9Y1211012ENS0034US0
Coolant Temperature Sensor
1. Remove the coolant temperature sensor (1).
(When reassembling)
• Replace the O-ring with new ones.
9Y1211012ENS0035US0
Tightening torque
Common rail mounting
screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Injection pipe retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.6 lbf·ft
(1) Injection Pipe
(2) Rail Pressure Sensor
(3) Overflow Pipe
(4) Common Rail
(5) Pressure Limiter
Tightening torque
Coolant temperature
sensor taper screw
16 to 23 N·m
1.6 to 2.4 kgf·m
12 to 17 lbf·ft
(1) Coolant Temperature Sensor
KiSC issued 09, 2016 A
