FRONT AXLE
L3301, L3901, L4701, WSM
6-S18

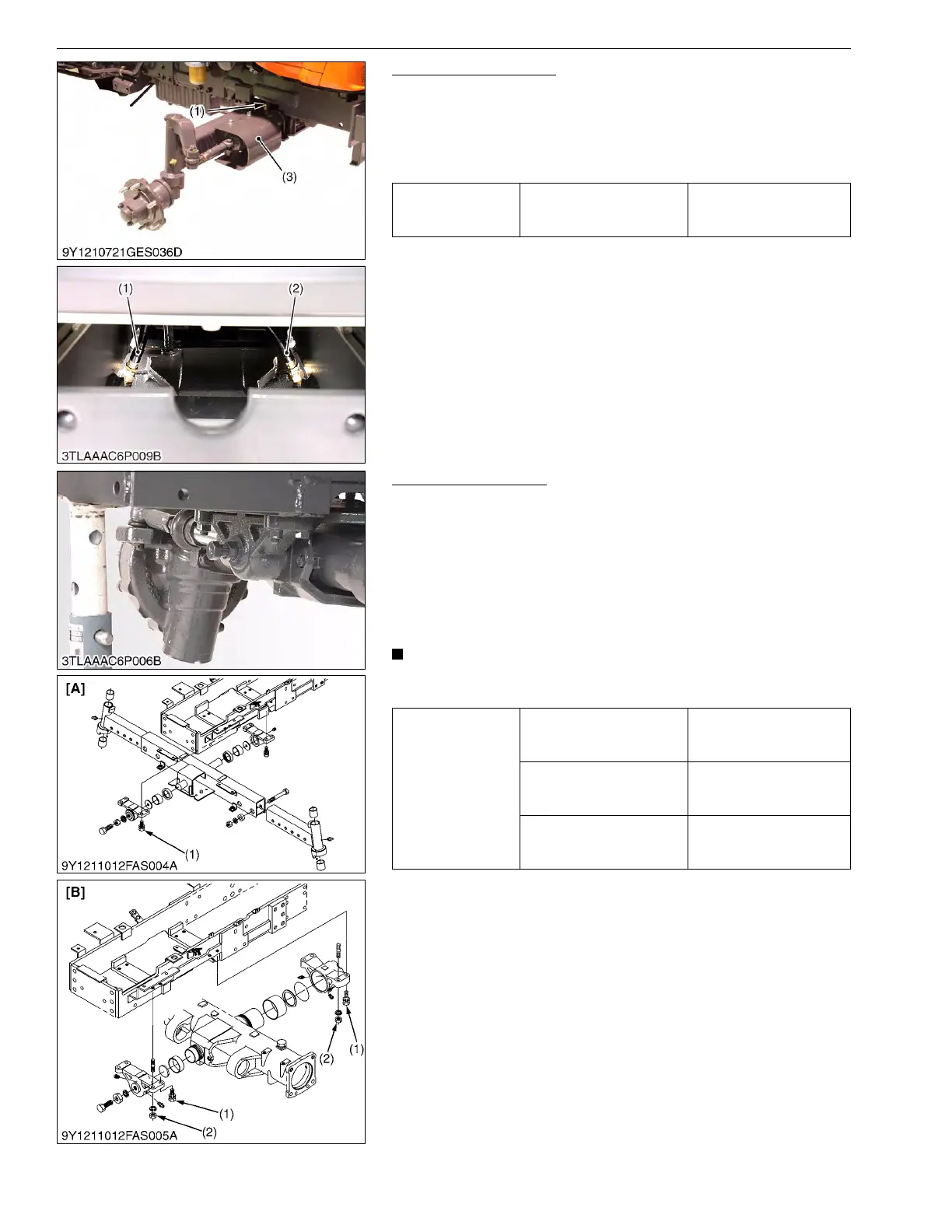

Power Steering Hoses
1. Remove cylinder covers (3).
2. Disconnect power steering hoses (1), (2) from steering cylinder.
(When reassembling)
• When connecting power steering hoses, hold joint with wrench
not to turn the joint and tighten hoses.
9Y1211012FAS0023US0
Front Axle Assembly
1. Check the front axle and engine are securely mounted on the
disassembling stand.
2. Loosen the front wheel mounting nuts.
3. Lift the front axle and remove the front wheels.
4. Remove the bracket (front) mounting screws and nuts.
5. Remove the bracket (rear) mounting screws and nuts.
6. Separate the front axle from front axle bracket.
(When reassembling)
• Be sure to adjust the front axle rocking force. (See page
6-S7 and 6-S7.)
9Y1211012FAS0024US0
Tightening torque
Power steering hose
retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.7 lbf·ft
(1) Power Steering Hose, R.H.
(2) Power Steering Hose, L.H.
(3) Cylinder Cover
Tightening torque
Front wheel mounting nut
124 to 147 N·m
12.6 to 15.0 kgf·m
92 to 108 lbf·ft
Bracket mounting bolt
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Bracket mounting nut
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
(1) Bracket Mounting Bolt
(2) Bracket mounting Nut
[A] 2WD Model
[B] 4WD Model
