FRONT AXLE
L3301, L3901, L4701, WSM
6-S11

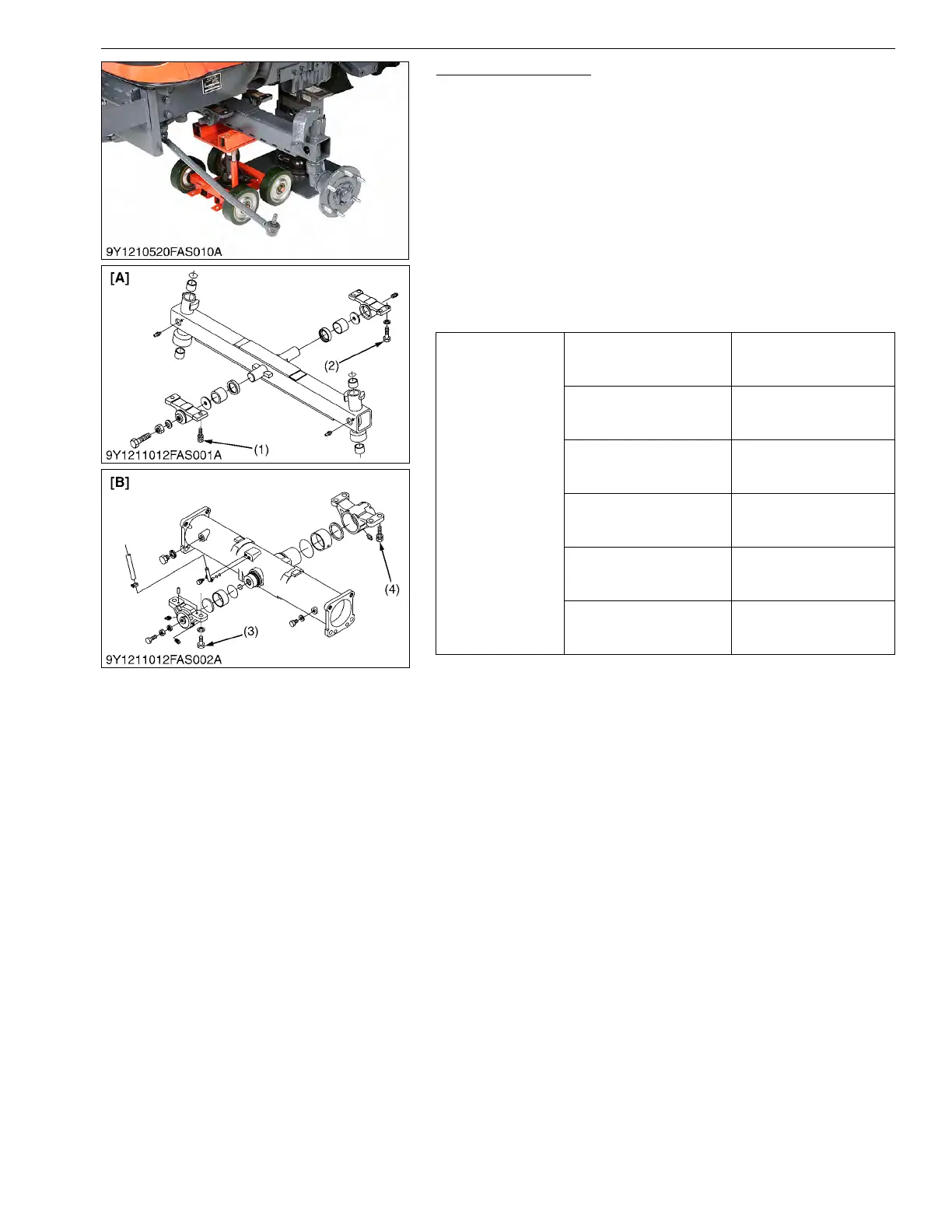

Front Axle Assembly
1. Place the disassembling stand under the front axle, and hang
up the front bumper by the hoist to support it.
2. Remove the shaft bracket 1 mounting screws and shaft bracket
2 mounting screws.
3. Separate the front axle from the front axle support.
4. Remove the front wheels.
(When reassembling)
• Apply thread locker (Three Bond 1324 or equivalent) to shaft
bracket (front) mounting bolt (3).
• When implant stud bolt, be sure to set flat end face of stud bolt
toward front axle.
• Apply thread locker (Three Bond 1324 or equivalent) to stud bolt
implant side.
9Y1211012FAS0012US0
Tightening torque
Shaft bracket (front)
mounting bolt [2WD]
166 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
Shaft bracket (rear)
mounting bolt [2WD]
103 to 118 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
Shaft bracket (front)
mounting bolt [4WD]
240 to 260 N·m
24.5 to 26.5 kgf·m
177 to 191 lbf·ft
Shaft bracket (rear)
mounting bolt [4WD]
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Front wheel mounting lug
nut
137 N·m
14.0 kgf·m
101 lbf·ft
Front wheel mounting stud
bolt [2WD]
64 to 73 N·m
6.5 to 7.5 kgf·m
47 to 54 lbf·ft
(1) Shaft Bracket (Front) Mounting Bolt
[2WD]
(2) Shaft Bracket (Rear) Mounting Bolt
[2WD]
(3) Shaft Bracket (Front) Mounting Bolt
[4WD]
(4) Shaft Bracket (Rear) Mounting Bolt
[4WD]
[A] 2WD Model
[B] 4WD Model
