FRONT AXLE
L3301, L3901, L4701, WSM
6-S10

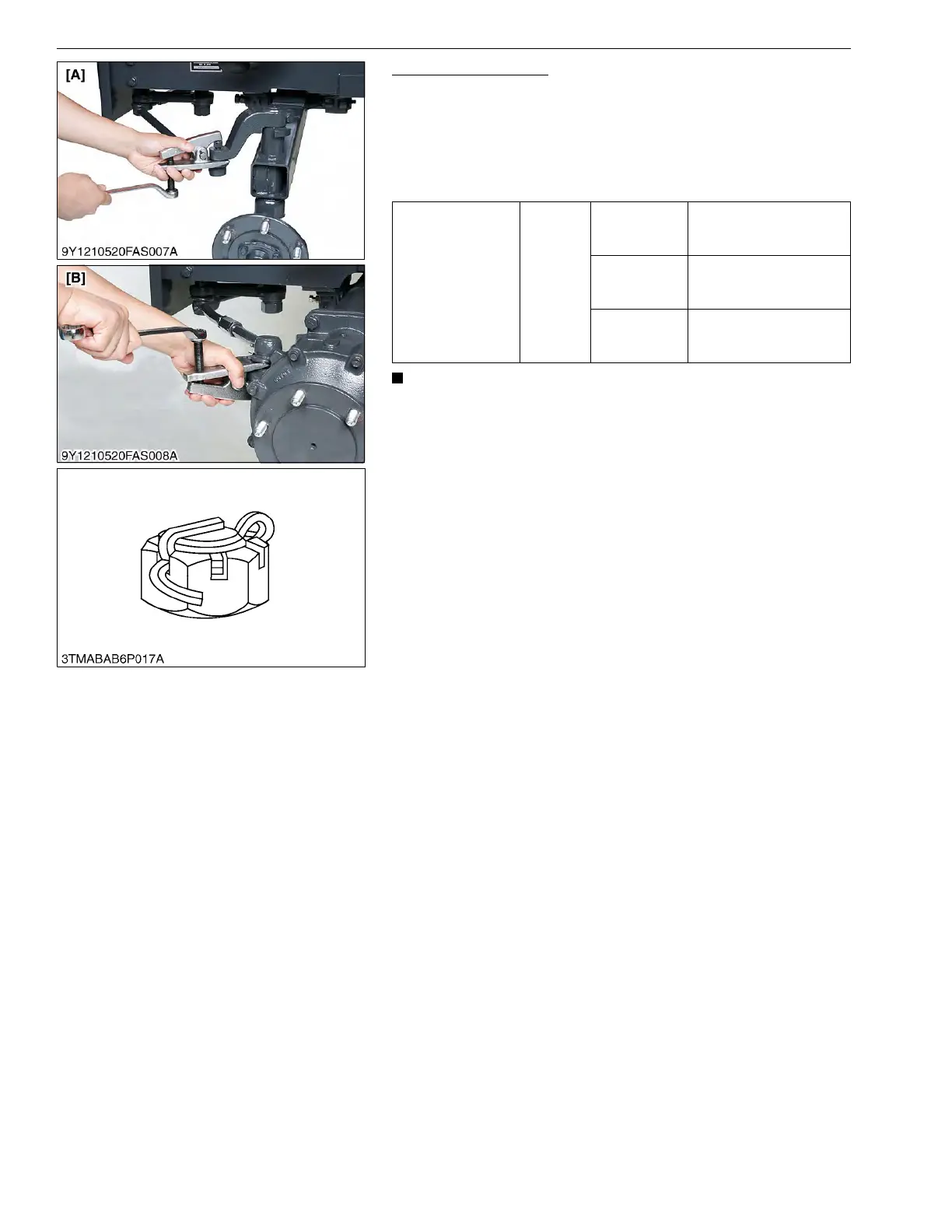

Bumper and Tie-rods
1. Remove the bumper.
2. Remove the tie-rods with the tie-rod end lifter.
In this case, take special care not to damage the tie-rod end nut
(slotted nut). (It is preferable to replace it with an unrequired
nut.)
3. Reinstall the bumper.
IMPORTANT
• After tightening the tie-rod end nut to the specified torque,
install a cotter pin as shown in the figure left.
9Y1211012FAS0011US0
Tightening torque
Tie-rod
end nut
2WD
(L3301/L3901)
49 to 68 N·m
5.0 to 7.0 kgf·m
37 to 50 lbf·ft
2WD
(L4701)
35 to 44 N·m
3.5 to 4.5 kgf·m
26 to 32 lbf·ft
4WD
35 to 44 N·m
3.5 to 4.5 kgf·m
26 to 32 lbf·ft
[A]2WD [B]4WD
