Injection
• When a calcium chloride solution is used, cool it before
pouring it into the tire.
• Do not fill tires with water or solution more than 75 % of full
capacity (to the valve stem level).
The following four ways can be used to inject water or a calcium
chloride solution into tires.
1. Gravity injection "A"
2. Pump injection "B"
3. Pressure tank injection "C"
4. Injection directly from tap (only when water is being used).
• Once injection is completed, reset the air valve, and pump
air into the tire to the specified pressure.
Weight of Calcium Chloride Solution Filling 75 % of Full
Capacity of a Tire.
L3301/L3901
L4701
9Y1211012GEG0049US0
Tire sizes 11.2-24 15-19.5
Slush free at −10 °C (14 °F)
Solid at −30 °C (−22 °F)
[Approx. 1 kg (2 lbs) CaCl
2
per 4 L
(1 gal) of water]
105 kg
(230 lbs)
140 kg
(309 lbs)
Slush free at −24 °C (−11 °F)
Solid at −47 °C (−52 °F)
[Approx. 1.5 kg (3.5 lbs) CaCl
2
per 4 L
(1 gal) of water]
110 kg
(240 lbs)
150 kg
(331 lbs)
Slush free at −47 °C (−52 °F)
Solid at −52 °C (−62 °F)
[Approx. 2.25 kg (5 lbs) CaCl
2
per 4 L
(1 gal) of water]
115 kg
(253 lbs)
160 kg
(353 lbs)
Tire sizes 14.9-24 17.5L-24
Slush free at −10 °C (14 °F)
Solid at −30 °C (−22 °F)
[Approx. 1 kg (2 lbs) CaCl
2
per 4 L
(1 gal) of water]
205 kg
(450 lbs)
235 kg
(515 lbs)
Slush free at −24 °C (−11 °F)
Solid at −47 °C (−52 °F)
[Approx. 1.5 kg (3.5 lbs) CaCl
2
per 4 L
(1 gal) of water]
215 kg
(475 lbs)
250 kg
(550 lbs)
Slush free at −47 °C (−52 °F)
Solid at −52 °C (−62 °F)
[Approx. 2.25 kg (5 lbs) CaCl
2
per 4 L
(1 gal) of water]
225 kg
(495 lbs)
265 kg
(585 lbs)
(1) Pump
(2) Pressure Tank
(3) Compressor
(4) Air
(5) Water

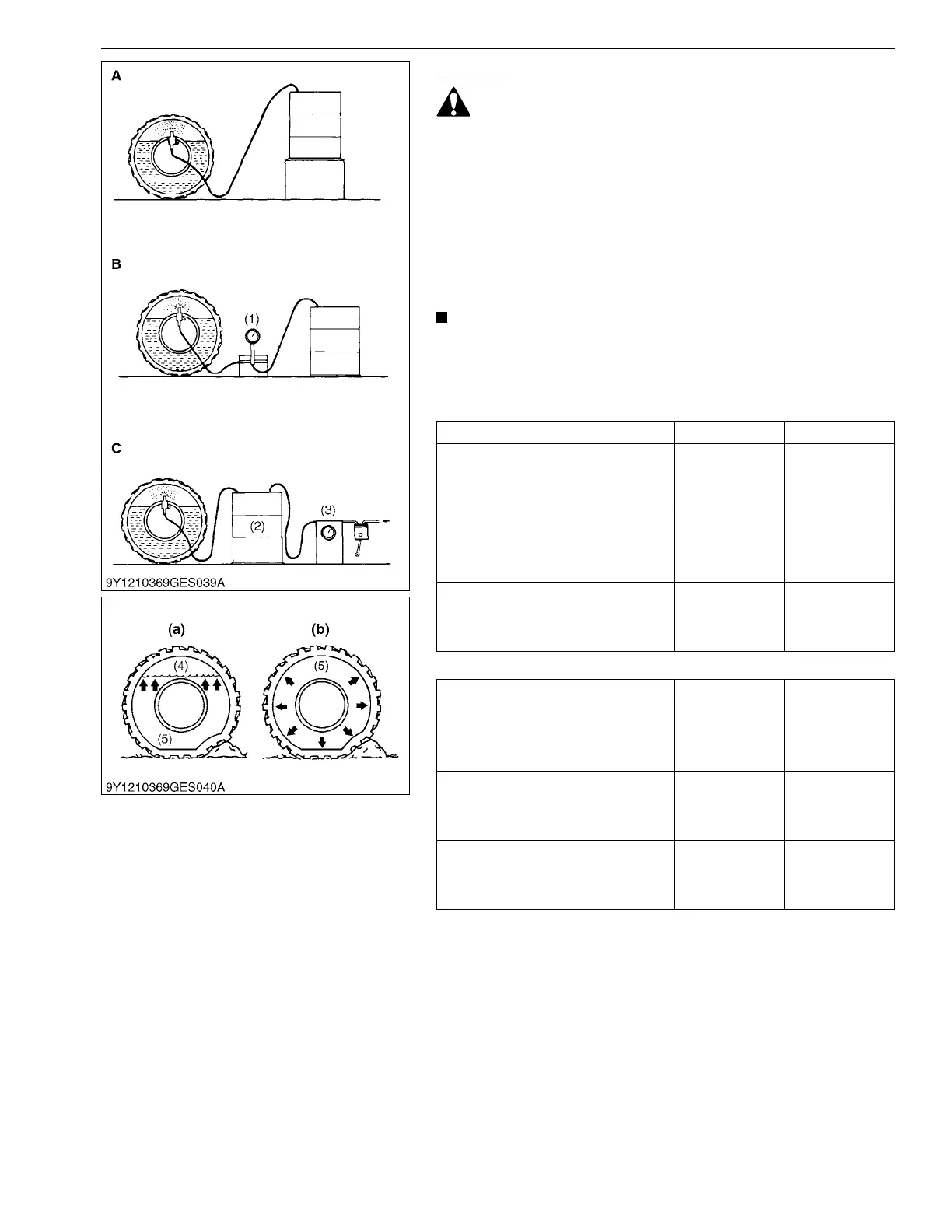

A: Gravity Injection
B: Pump Injection
C: Pressure Tank Injection
(a) Correct: 75 %
Air Compresses Like A Cushion
(b) Incorrect: 100 % Full
Water Can Not Be Compressed
