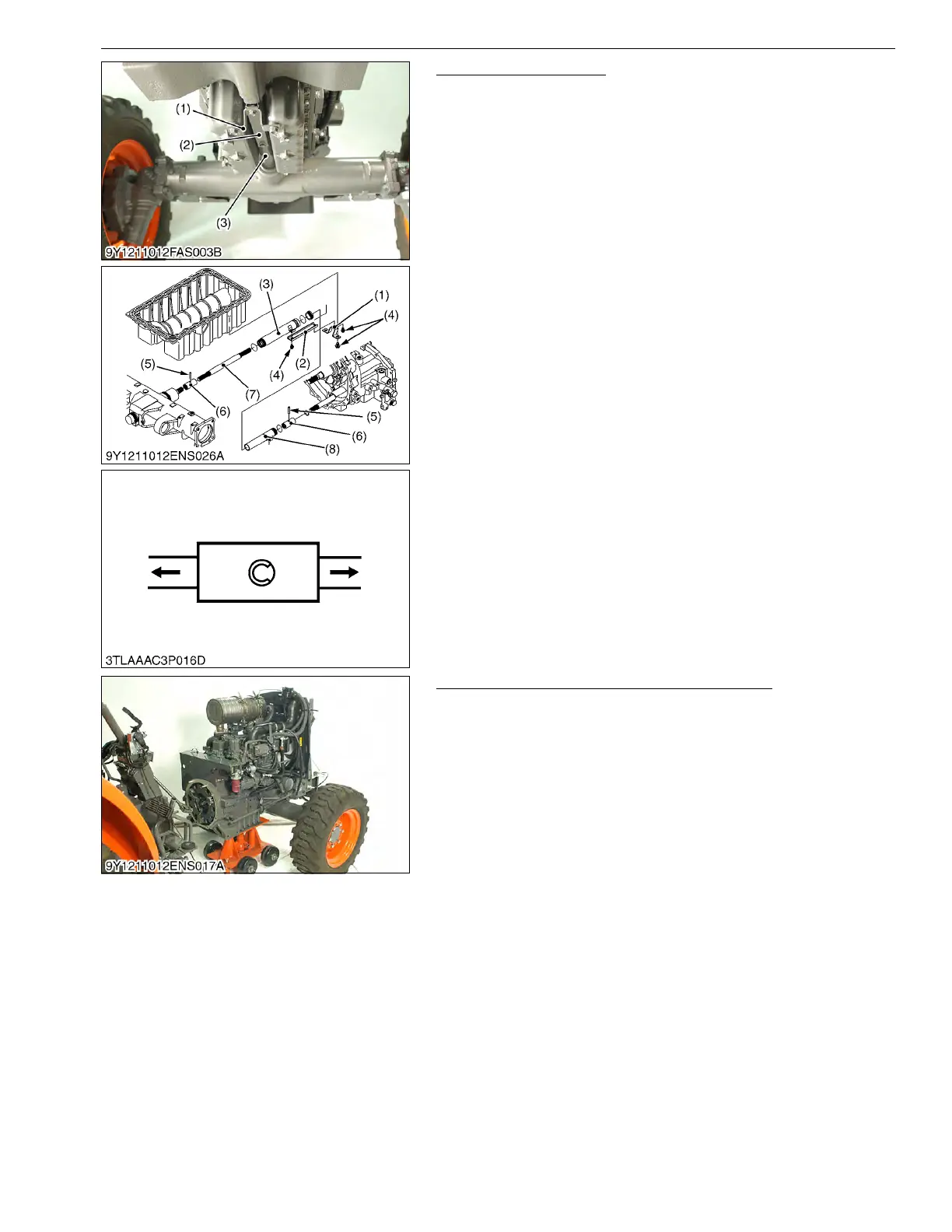

Propeller Shaft (L4701)
1. Remove the bracket 1 (1).
2. Remove the bracket 2 (2).
3. Slide the propeller shaft cover 2 (8) to the front and the propeller
shaft cover 1 (3) to the rear.
4. Tap out the spring pins (5) and then slide the coupling (6) to the
front and rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft (8) and pinion
shaft.
• Tap in spring pins (5) as shown in the figure.
9Y1211012ENS0025US0
Separating Engine from Clutch Housing Case
1. Place the disassembling stands under the engine and clutch
housing case.
2. Remove the engine and clutch housing mounting screws and
nuts.
3. Separate the engine and clutch housing.
(When reassembling)
• Apply grease to the splines.
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the engine and clutch housing case.
9Y1211012ENS0026US0
(1) Bracket 1
(2) Bracket 2
(3) Propeller Shaft Cover 1
(4) Screw
(5) Spring Pin
(6) Coupling
(7) Propeller Shaft
(8) Propeller Shaft Cover 2
