ENGINE
L3301, L3901, L4701, WSM
1-S44

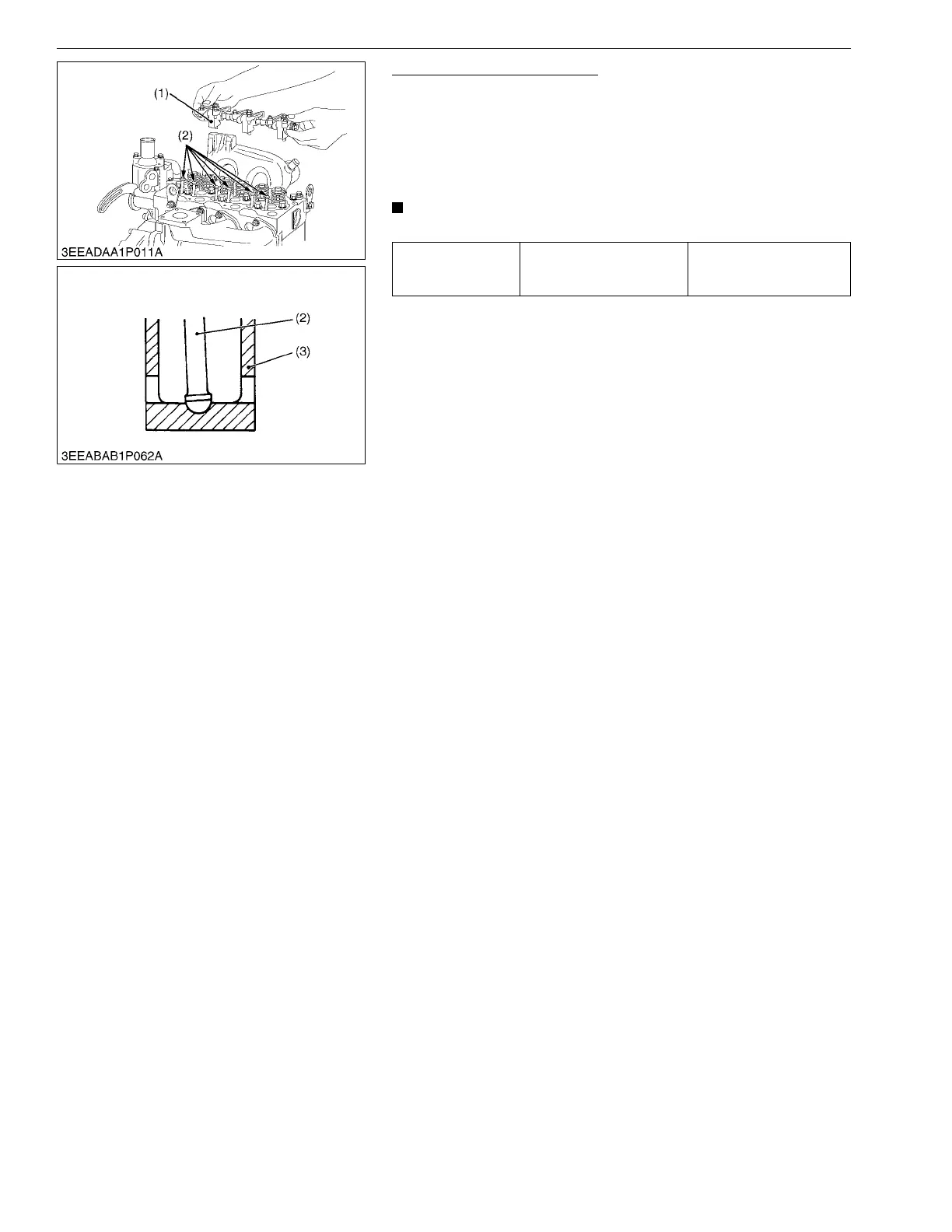

Rocker Arm and Push Rods
1. Remove the screws of the rocker arm bracket.
2. Remove the rocker arm assembly (1).
3. Remove the push rods (2).
(When reassembling)
• When you put the push rods (2) on the tappets (3), make sure
that their ends are correctly engaged with the grooves.
IMPORTANT
• After you install the rocker arm, adjust the valve clearance.
9Y1211012ENS0040US0
Tightening torque Rocker arm bracket screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Rocker Arm Assembly
(2) Push Rod
(3) Tappet
KiSC issued 09, 2016 A
