wsm L3301 - Page 215

ENGINE
L3301, L3901, L4701, WSM
1-S52

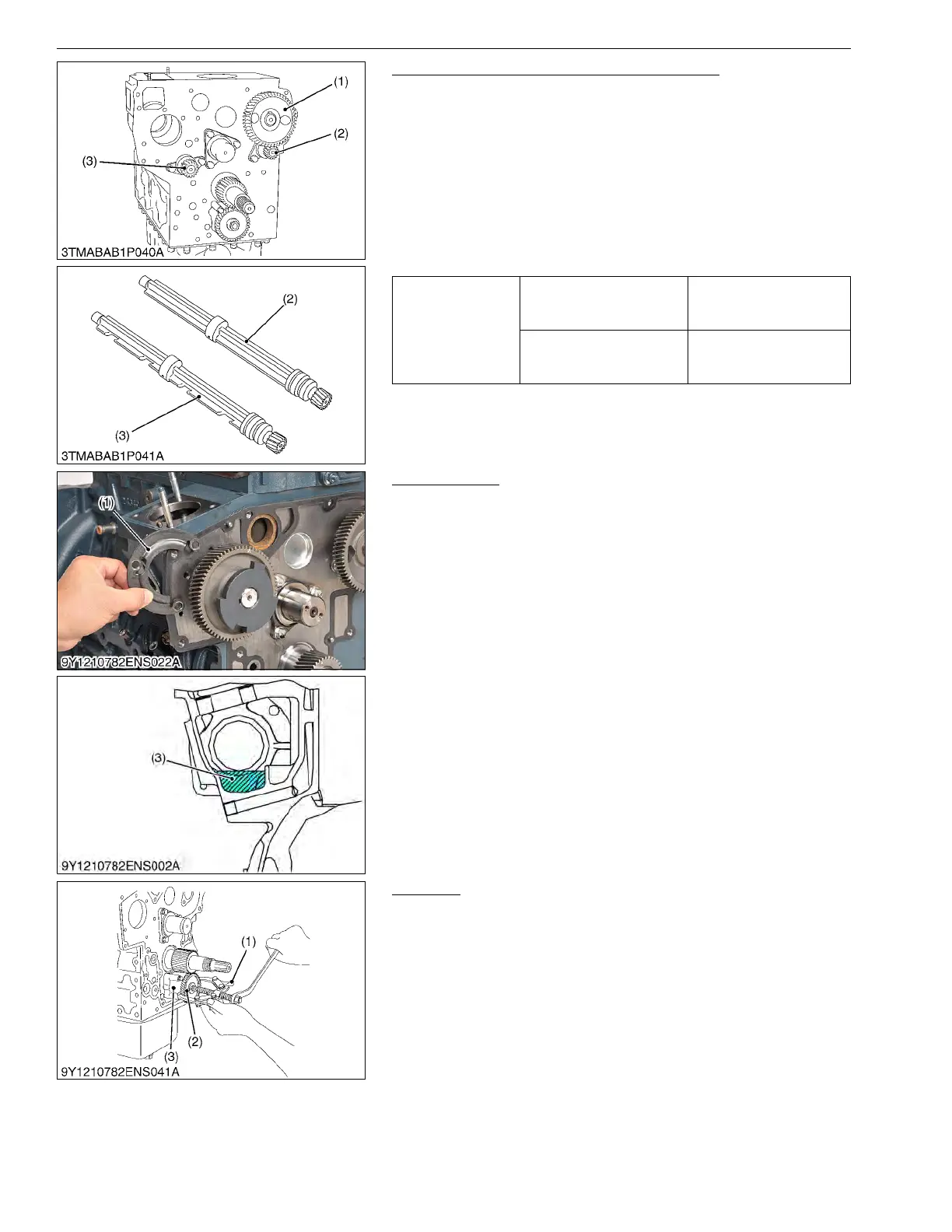

Camshaft and Balancer Shaft (V2403-CR-E4)
1. Remove the camshaft set bolts and draw out the camshaft (1).
2. Remove the balancer shaft 1 (2) set bolts and draw out the
balancer shaft 1 (2).
3. Remove the balancer shaft 2 (3) set bolts and draw out the
balancer shaft 2 (3).
(When reassembling)
• When install the balancer shaft 1 and 2, be sure to place the 4th
cylinders piston at the top dead center in compression then,
align all mating marks on each gear to assemble the timing
gears, set the idle gear last.
9Y1211012ENS0055US0
Fuel Camshaft
1. Remove the fuel feed pump.
2. Remove the fuel camshaft stopper (1).
3. Pull out the fuel camshaft (2).
(When reassembling)
• After attaching the fuel camshaft, store oil in the pump room as
shown in drawing on the left.
• Recommended oil amount about 110 cc.
9Y1211012ENS0056US0
Oil Pump
1. Remove the nut.
2. Pull out the oil pump drive gear (2) with a gear puller (1).
3. Remove the 4 mounting screws of the oil pump. Remove the oil
pump (3).
9Y1211012ENS0057US0
Tightening torque
Camshaft set bolt
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Balancer shaft set bolt
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Camshaft
(2) Balancer Shaft 1
(3) Balancer Shaft 2
(1) Fuel Camshaft Stopper
(2) Fuel Camshaft
(3) Oil
(1) Gear Puller
(2) Oil Pump Drive Gear
(3) Oil Pump
KiSC issued 09, 2016 A
