CLUTCH
L3301, L3901, L4701, WSM
2-M2
(2) Hydrostatic Transmission (HST) Model

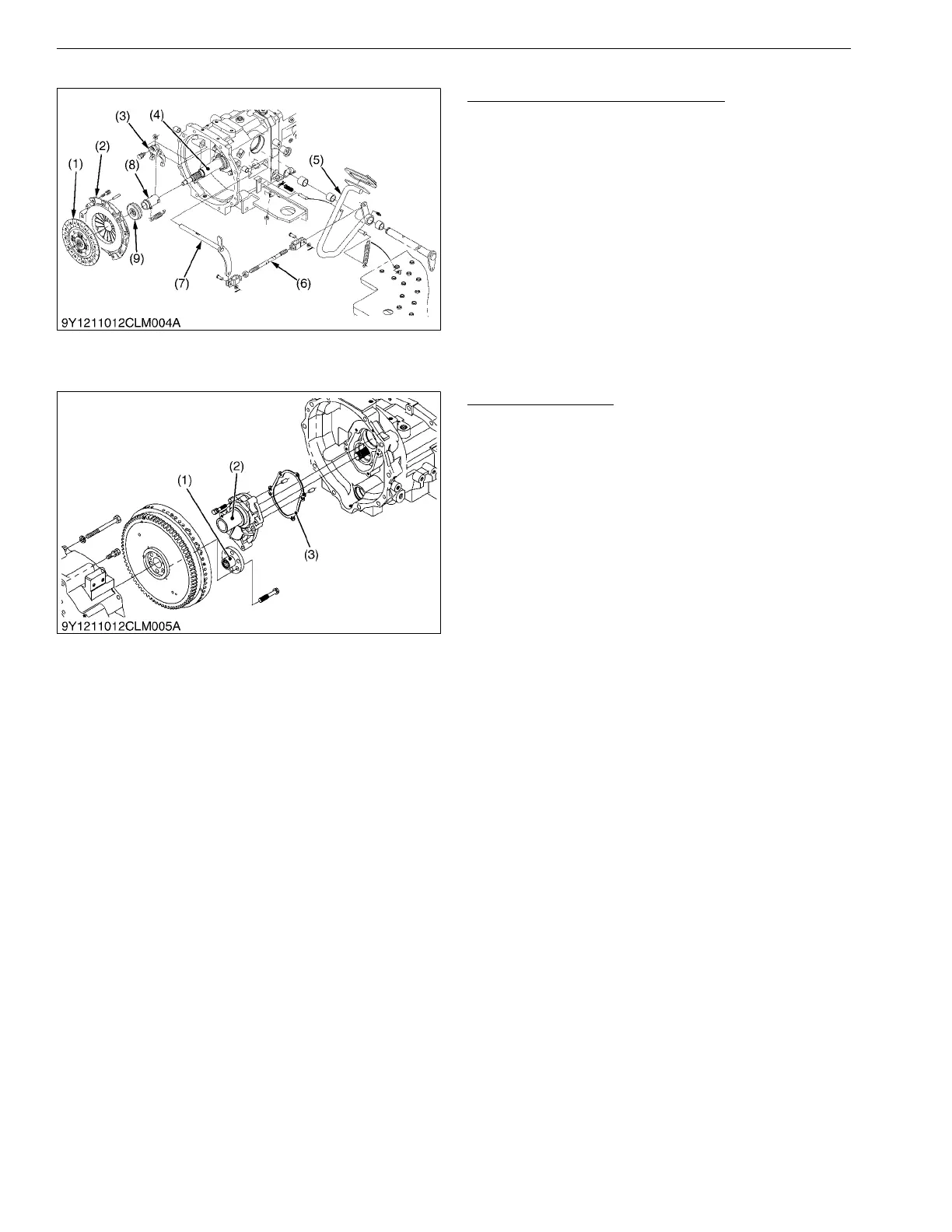

Single Stage Clutch (L3301, L3901)
HST models (L3301, L3901) are equipped with the
single stage clutch.
The clutch is located between the engine and the
transmission and is operated by stepping on the clutch
pedal.
When the clutch pedal is depressed, the clutch is
disengaged. And when the clutch pedal is released, the
clutch is engaged and power from the engine is
transmitted to the transmission.
9Y1211012CLM0003US0
Clutch Less (L4701)
Unlike the other models, HST model of L4701 is not
equipped with a clutch. Only clutch coupling is adopted.
9Y1211012CLM0004US0
(1) Clutch Disc
(2) Pressure Plate Assembly
(3) Release Fork
(4) Shaft Case
(5) Clutch Pedal
(6) Clutch Rod
(7) Clutch Lever
(8) Release Hub
(9) Release Bearing
(1) Clutch Coupling
(2) Shaft Case
(3) Gasket
To Next Page
