TRANSMISSION
L3301, L3901, L4701, WSM
3-S54

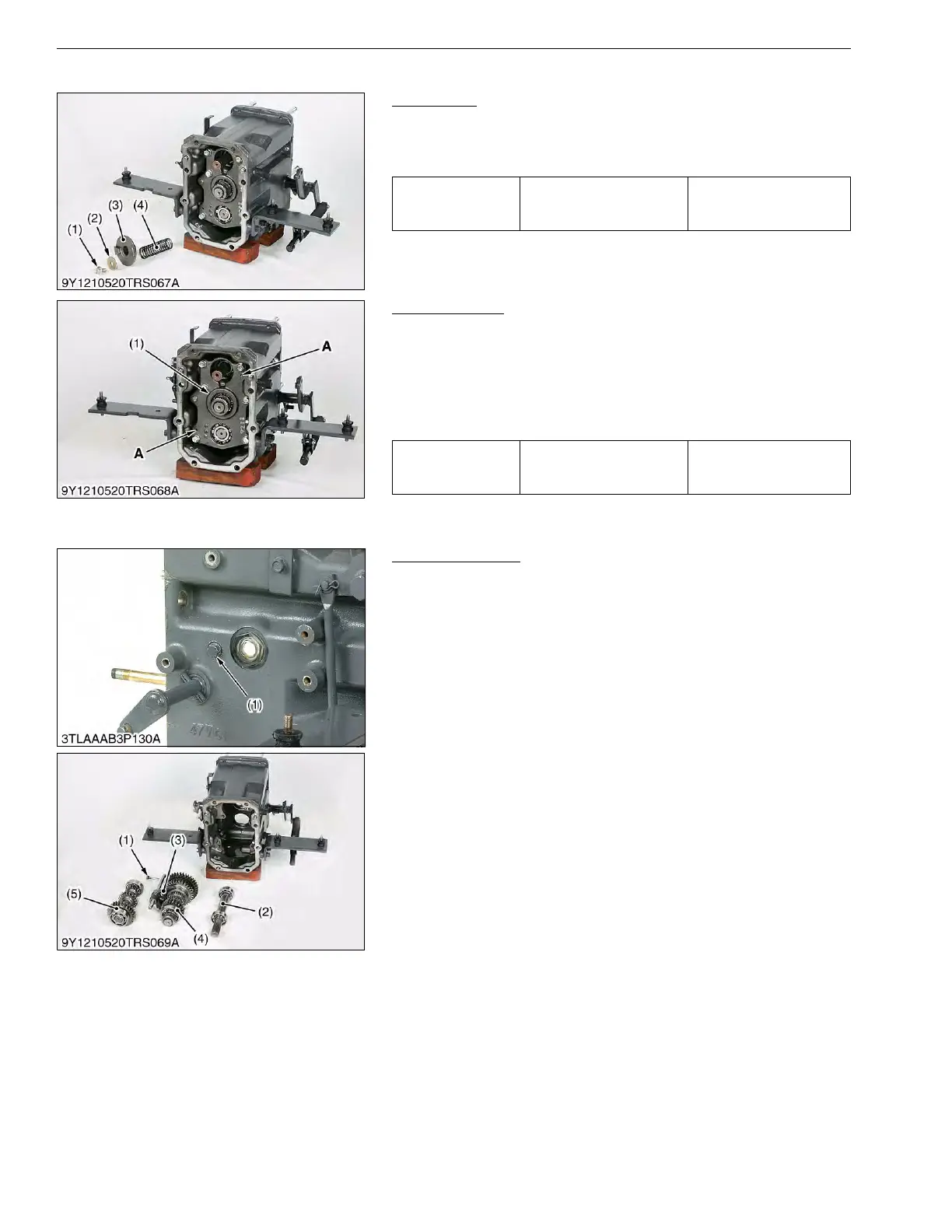

[B] Mid Case
PTO Clutch
1. Remove the PTO clutch mounting screw (1).
2. Remove the washer (2), clutch cam (3) and spring (4).
(When reassembling)
9Y1211012TRS0061US0
Bearing Holder
1. Remove the bearing holder mount screws.
2. Jack up the bearing holder (1) by using the two jack screws then
remove the bearing holder (1).
(When reassembling)
• Tap in the bearing holder (1) with plastic hummer until contact
to mid case and then tighten the screws to specified torque.
9Y1211012TRS0062US0
Gears and Shafts
1. Remove the screw (1).
2. Tap out the PTO counter shaft (2).
3. Remove the shift fork (3) and sub shaft assembly (4).
4. Remove the 13T gear shaft assembly (5).
9Y1211012TRS0063US0
Tightening torque Clutch cam mounting screw
61 to 70 N·m
6.2 to 7.2 kgf·m
45 to 52 lbf·ft
(1) Screw
(2) Washer
(3) Clutch Cam
(4) Spring
Tightening torque
Bearing holder mounting
screw
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Bearing Holder A: Hole for Jack Screw
(1) Screw
(2) PTO Counter Shaft
(3) Shift Fork
(4) Sub Shaft Assembly
(5) 13T Gear Shaft Assembly
KiSC issued 09, 2016 A
