TRANSMISSION
L3301, L3901, L4701, WSM
3-S72

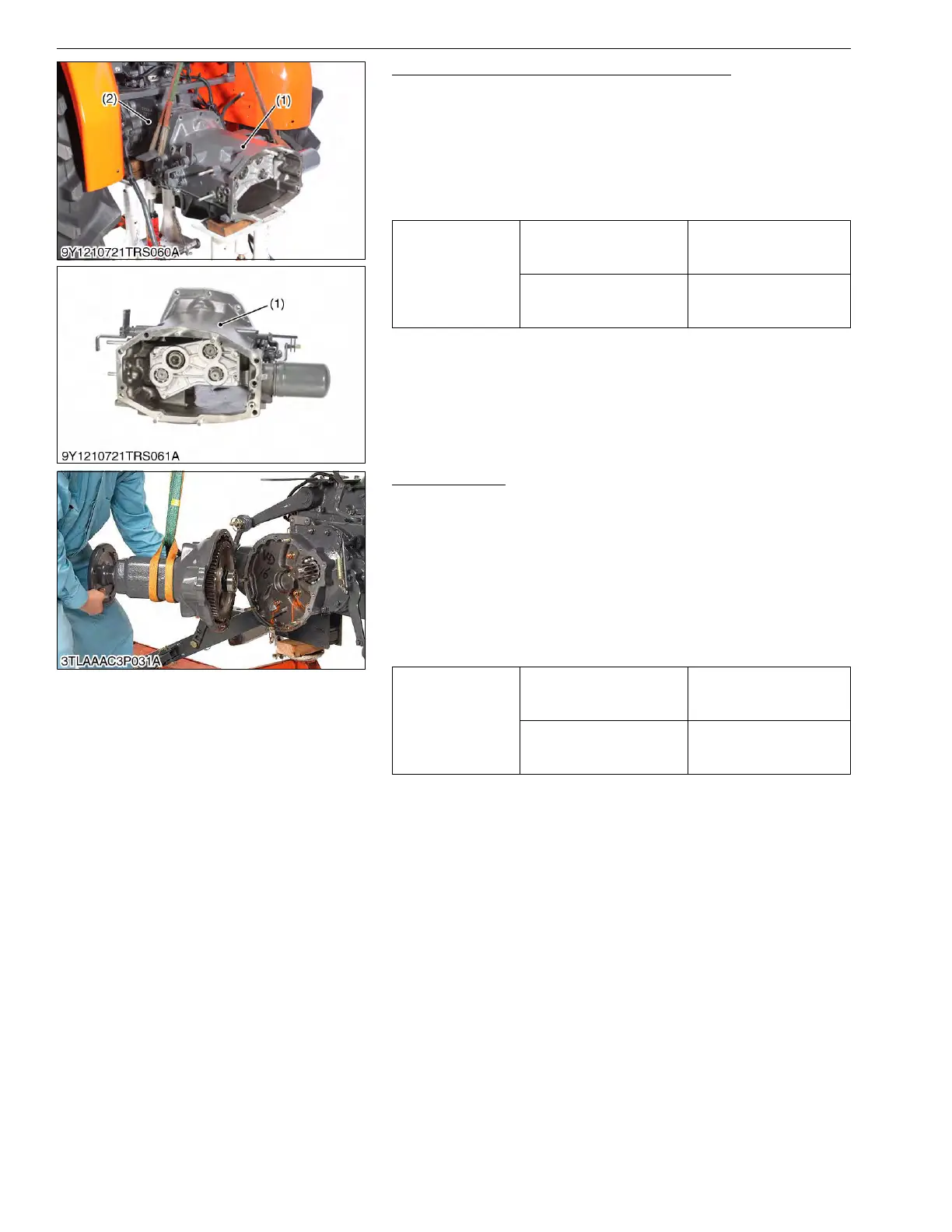

Separating Mid Case from Transmission Case
1. Loosen and remove screws and nuts securing mid case (1) to
transmission case (2).
2. Separate mid case from transmission case (2).
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of mid case and transmission case after eliminate water, oil
and stuck liquid gasket.
9Y1211012TRS0177US0
Rear Axle Case
1. Place the support stand under the rear axle case.
2. Loosen and remove the rear axle case mounting screws and
nuts.
3. Support the rear axle case with nylon lift strap and hoist.
4. Separate the rear axle case from brake case.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to the
joint face of the rear axle case and the brake case, after
eliminating the water, oil and stuck liquid gasket.
9Y1211012TRS0087US0
Tightening torque
Clutch housing case and
mid case mounting screw
and nut
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Mid case and transmission
case mounting stud bolt
39.2 to 49.0 N·m
4.0 to 5.0 kgf·m
28.9 to 36.2 lbf·ft
(1) Mid Case (2) Transmission Case
Tightening torque
Rear axle case mounting
M10 nuts
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
Rear axle case mounting
M12 bolts and nuts
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
